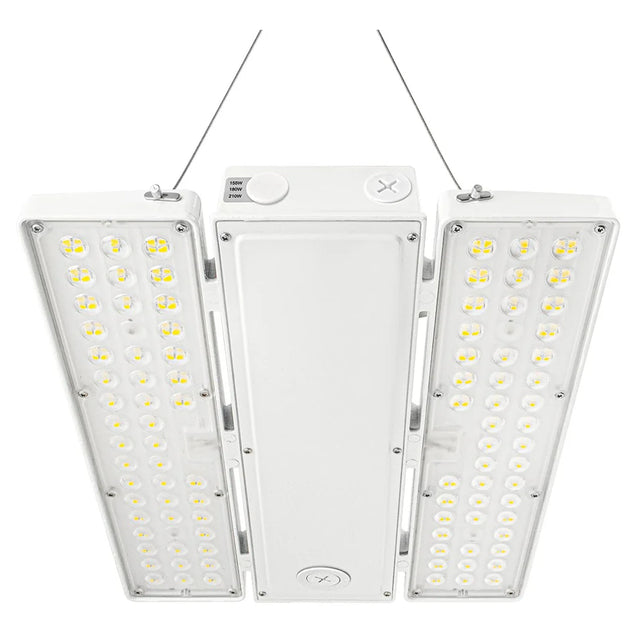

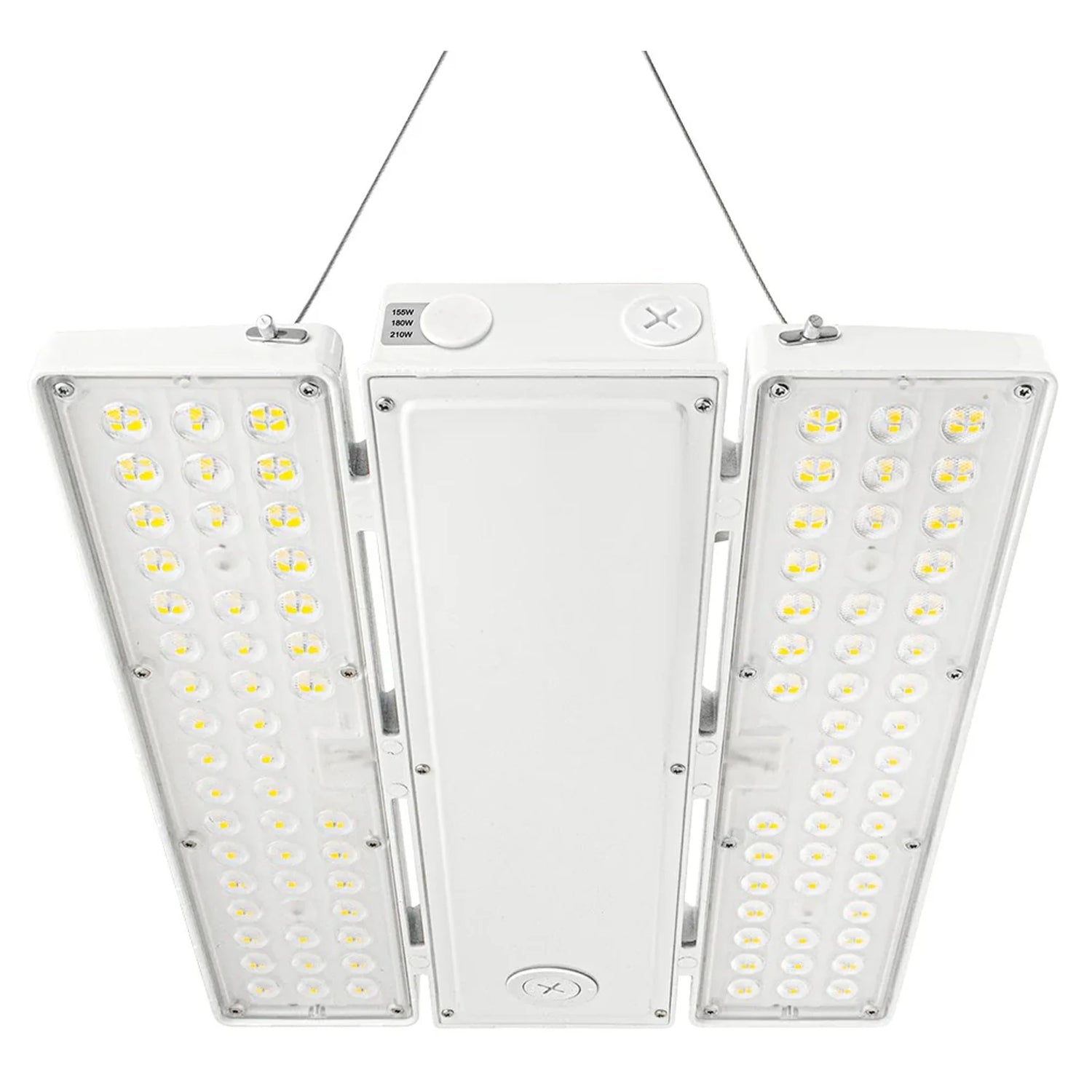

LED Linear High Bay Light with Wattage & CCT Selectable – 210W 31,500lm 4000K-5000K 277-480V 0-10V Dimmable
LED Linear High Bay Light with Wattage & CCT Selectable – 210W 31,500lm 4000K-5000K 277-480V 0-10V Dimmable - 1 Box (2Pcs) is backordered and will ship as soon as it is back in stock.
LED Linear High Bay Light with Wattage & CCT Selectable – 210W ...
LED Linear High Bay Light with Wattage & CCT Selectable – 210W 31,500lm 4000K-5000K 277-480V 0-10V Dimmable - 1 Box (2Pcs) is backordered and will ship as soon as it is back in stock.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
Description
1.2FT High Voltage LED Linear High Bay
High Voltage Ready
Specially engineered for 277-480V industrial power grids. Ideal for heavy manufacturing and large-scale industrial facilities.
Wattage Selectable
Flexible power options (155W/180W/210W) in one fixture, allowing on-site adjustment to meet specific brightness needs.
Focused Illumination
The 95-degree beam angle provides precise light distribution, reducing glare and maximizing light levels on the work plane.
Smart Control Ready

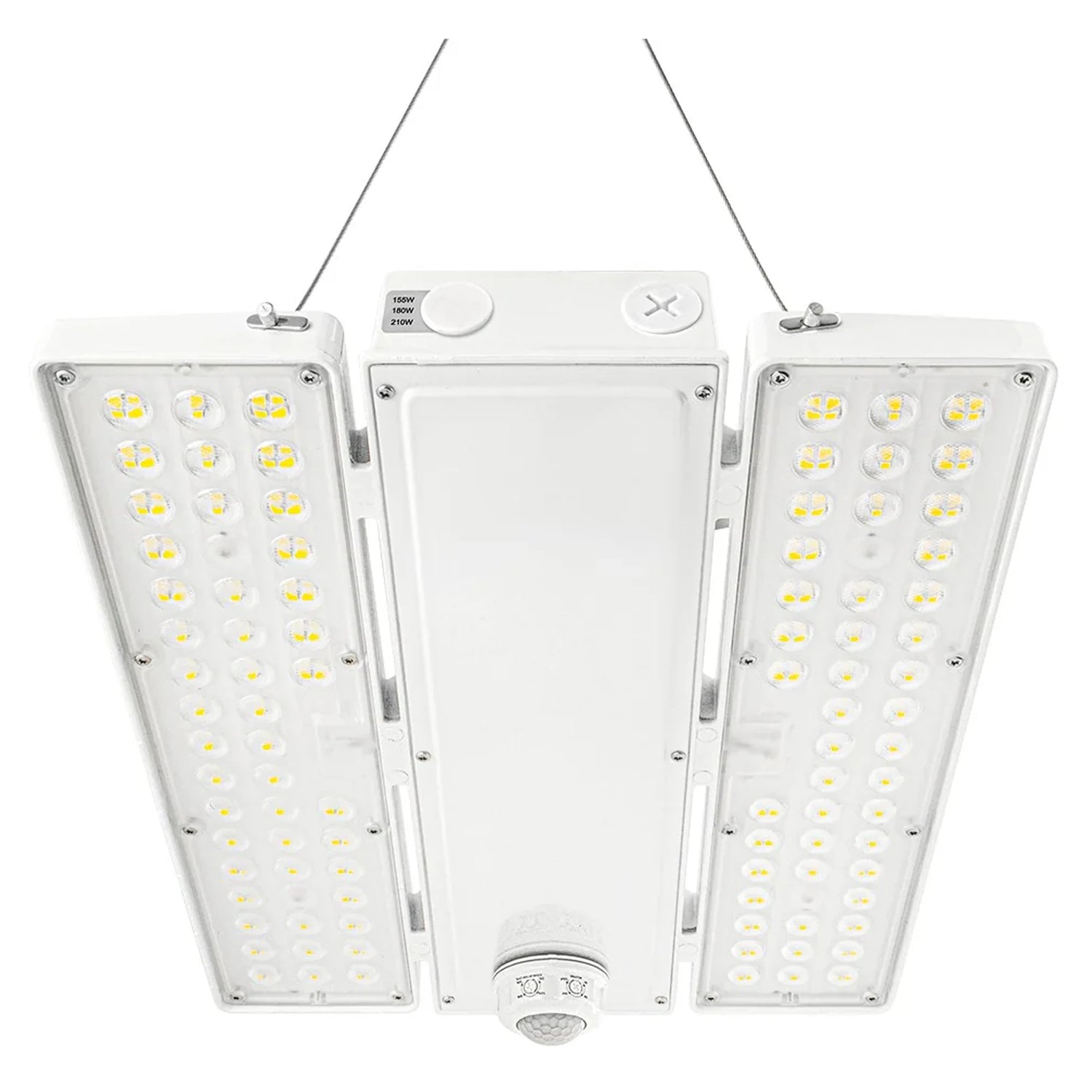

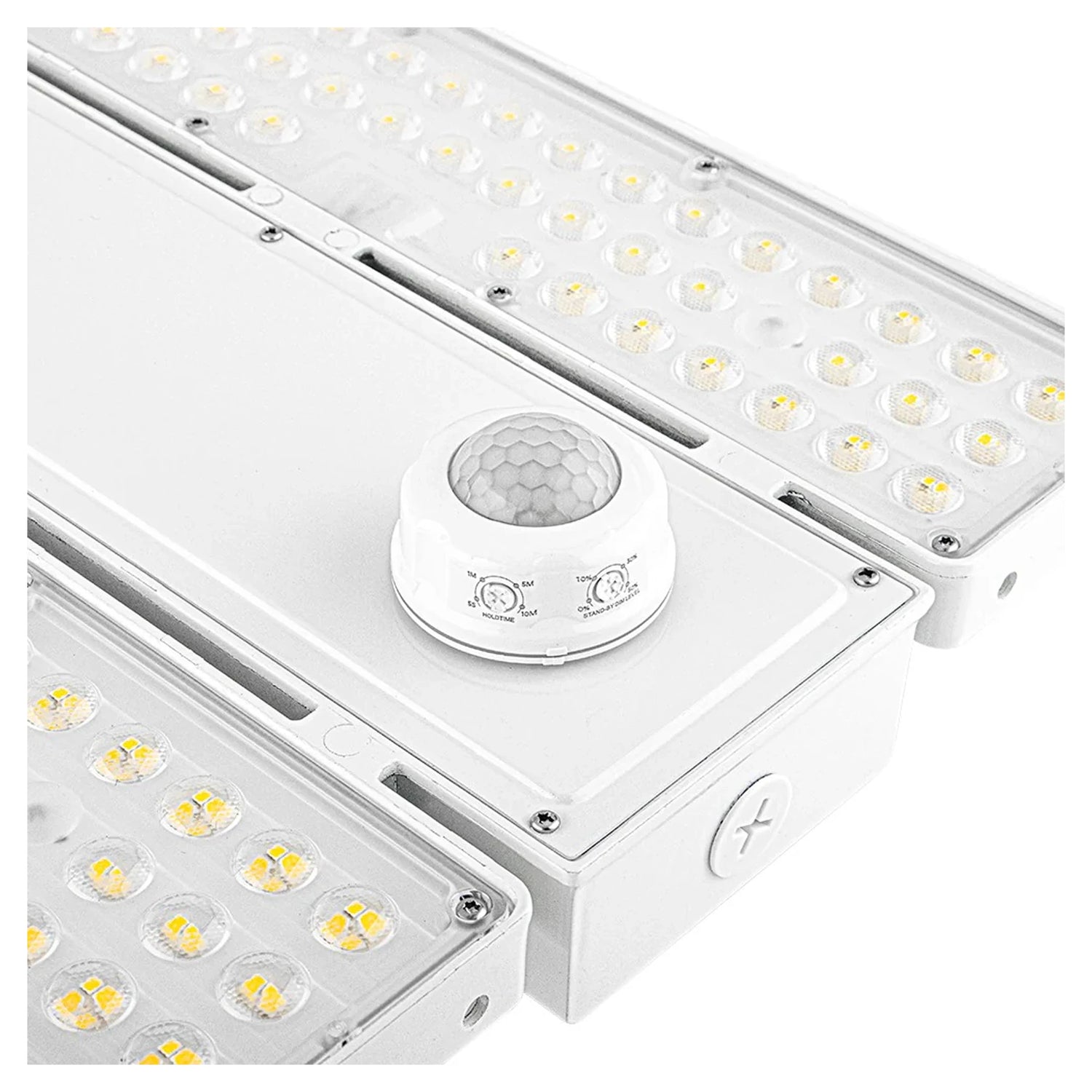

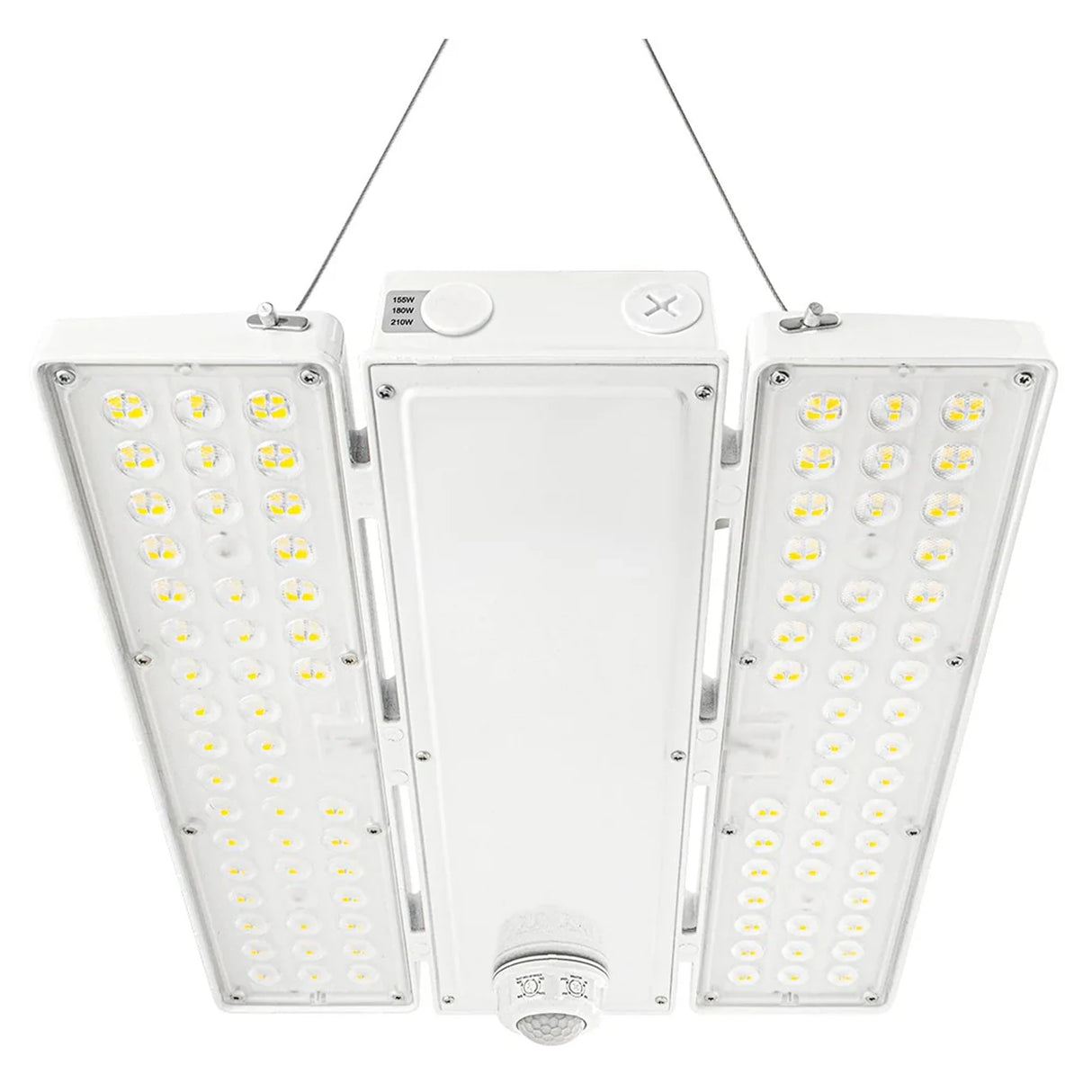

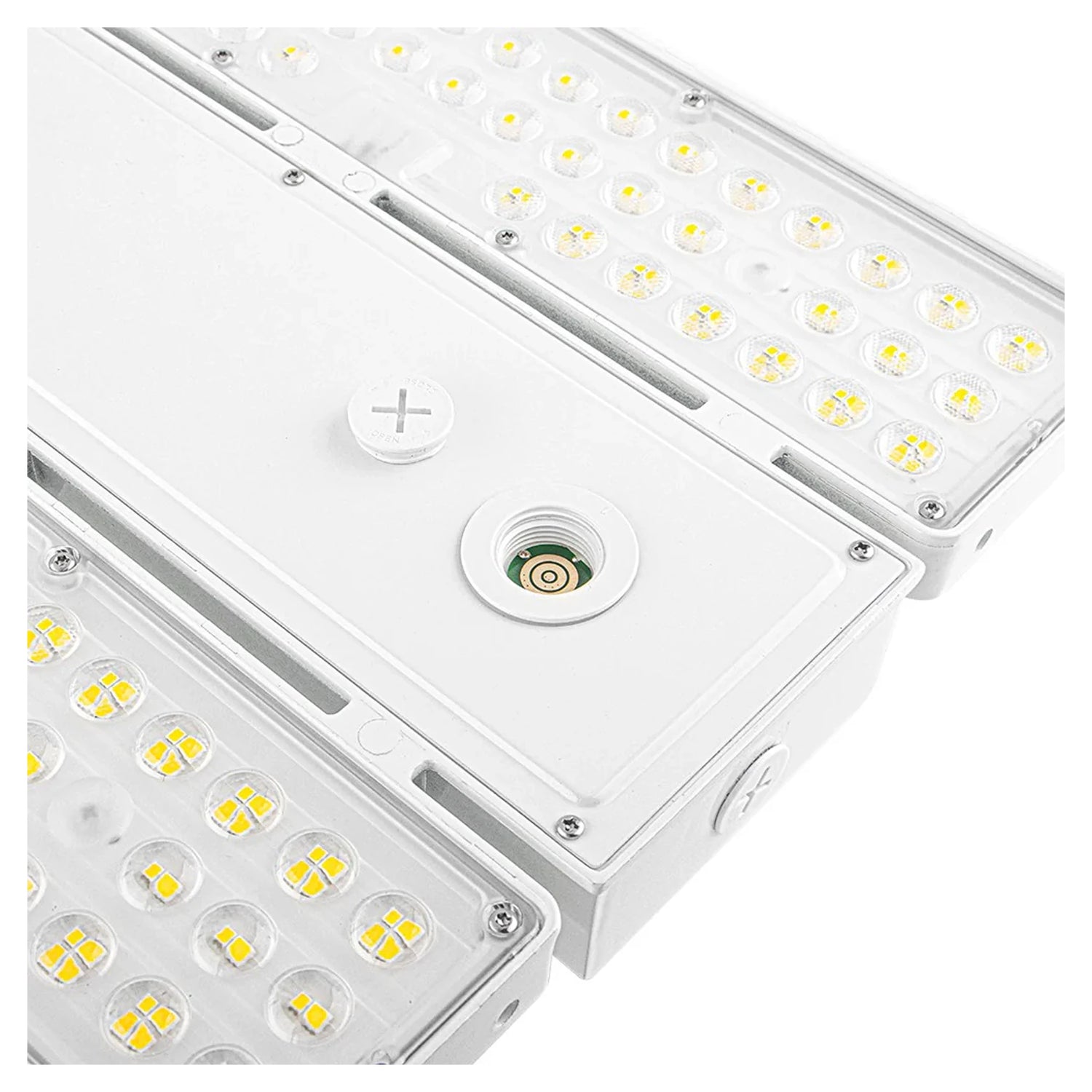

Features an integrated 3-pin sensor base for easy, plug-and-play addition of motion sensors or daylight harvesters.
Technical Specifications
| Wattage Options | 155W / 180W / 210W Selectable |
| Luminous Flux | Max. 31,500 Lumens |
| Light Efficacy | 150 Lumens Per Watt |
| Input Voltage | AC 277-480V (High Voltage) |
| Color Temp (CCT) | Selectable 4000K / 5000K |
| Beam Angle | 95° Degrees |
| CRI / Ra | Ra > 80 |
| Dimming Control | 0-10V Dimmable |
| Certification | DLC 5.1 Premium, UL Listed |

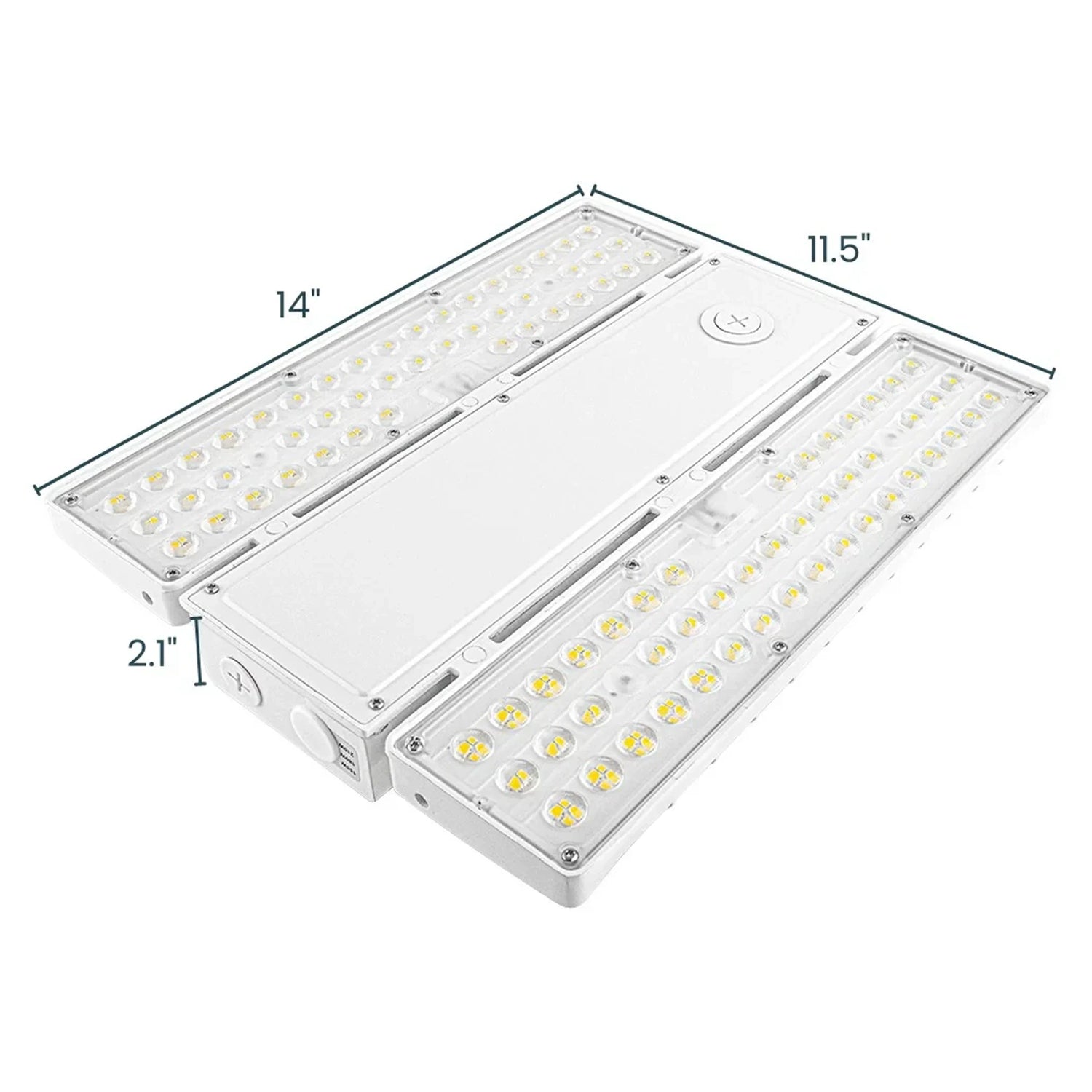

| Size & Finish | 1.2FT Length / Pure White |
Professional Performance
- Ultra-high efficiency for maximum energy savings in 480V systems.
- DLC 5.1 Premium listing guarantees top-tier performance and rebate eligibility.
- Rugged construction built for 24/7 industrial operations.
- Tunable wattage and CCT reduce inventory complexity for contractors.
- Excellent heat dissipation ensures a 50,000+ hour maintenance-free life.
- Flicker-free dimming enhances workplace safety and comfort.
Industrial Applications
Designed for mounting heights of 20ft to 40ft, this high-voltage linear fixture is the premier choice for:
Heavy Manufacturing Plants | Steel Mills | Chemical Processing Centers | High-Ceiling Logistics Hubs | Industrial Workshops | Power Facilities | Large Arenas
