The Eco Bright Light 120W LED Retrofit Kit upgrades compatible shoebox, parking lot, roadway and area light fixtures while retaining the existing luminaire housing. Delivering 16,200 lumens at 135 lm/W, this commercial retrofit system is designed for compatible 250W-350W metal halide and high-pressure sodium replacement applications. With 5000K cool white light, universal 120-277V AC input and 120° light distribution, it provides an efficient solution for commercial outdoor lighting retrofit projects.

120W LED Retrofit Kit Technical Specifications

Replace Compatible 250W-350W HID with 120W LED

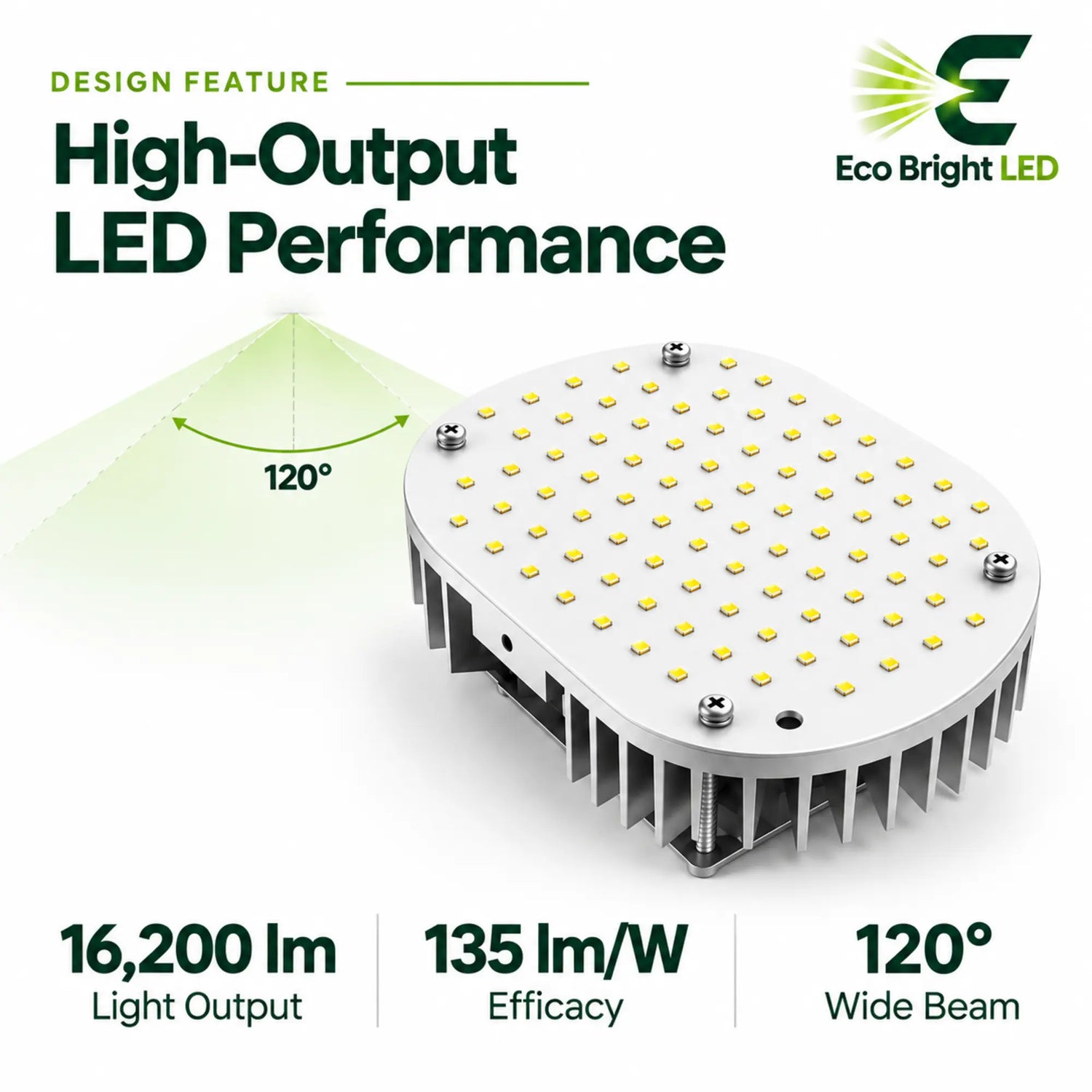

• 120W LED delivers 16,200 lumens for compatible 250W-350W metal halide and high-pressure sodium replacement applications.
• 135 lm/W luminous efficiency provides high commercial light output while using 120 watts of input power.
• Helps reduce energy consumption compared with traditional high-wattage HID lighting systems.
• 5000K cool white light provides bright, clear illumination for commercial outdoor areas.
• 120° average beam angle provides broad light distribution within compatible fixtures.
• 270° adjustable mounting helps optimize LED positioning inside different compatible fixture housings.
• Internal cooling fan and thermal sensor help maintain controlled operating temperatures.
• Junction temperature is specified at less than 75°C under rated operating conditions.

Professional Ballast-Bypass LED Retrofit System

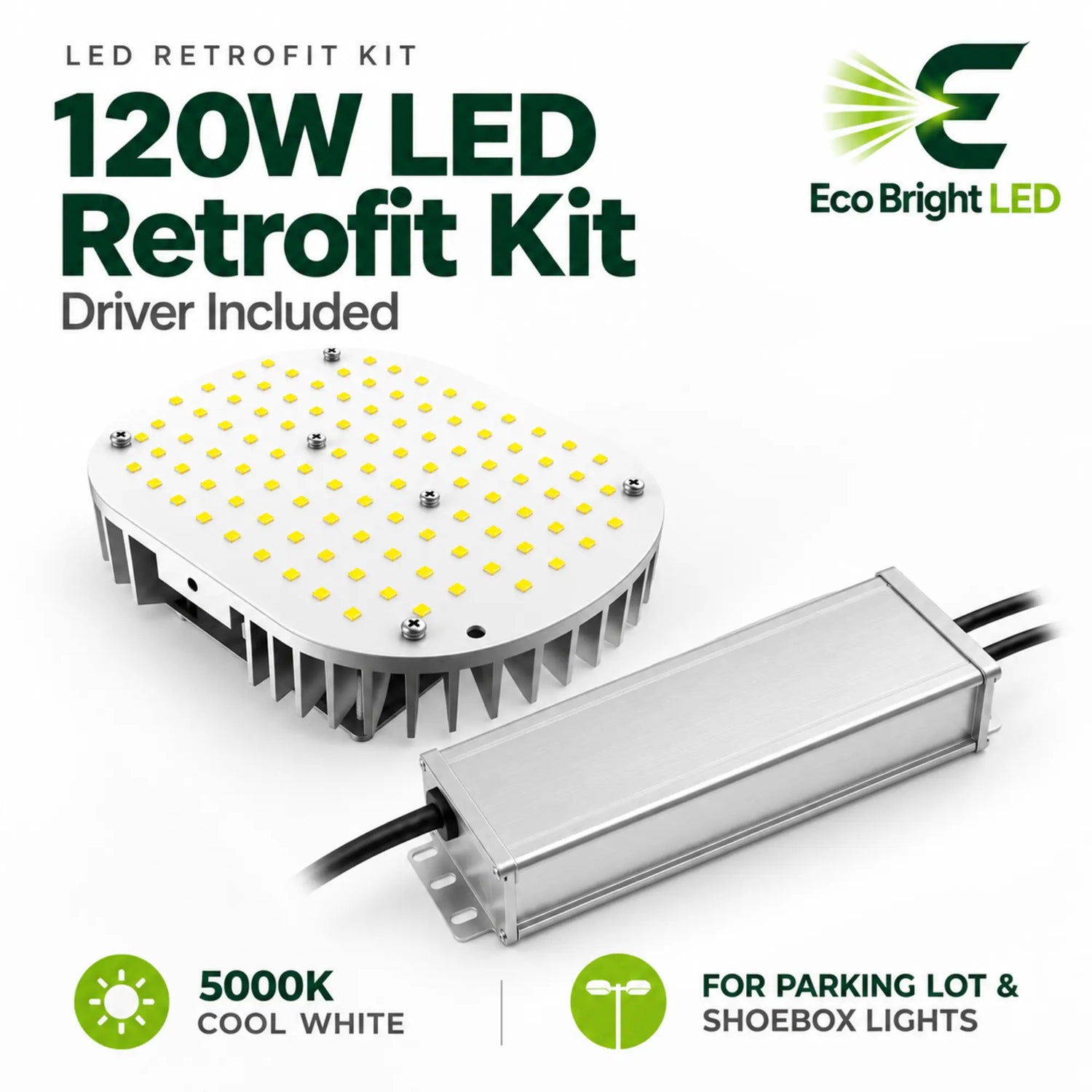

The Eco Bright Light 120W retrofit system uses a separate LED driver and adjustable LED light head to convert compatible HID fixtures to LED. During installation, the existing HID lamp is removed and the ballast is removed or bypassed. The new LED driver is then installed in place of the original ballast.

The E39 socket functions as a mechanical mounting point for the retrofit bracket rather than supplying electrical power directly to the LED light head. The adjustable bracket allows the LED module to be positioned for effective light distribution inside compatible shoebox, parking lot, roadway and area light housings.

Parking Lot, Shoebox, Area & Roadway Lighting Applications

The 120W LED Retrofit Kit is suitable for compatible parking lot lights, high-output shoebox fixtures, outdoor pole lights, arm-mounted area luminaires, roadway luminaires, area lighting, path lighting and garden lighting applications.

It is particularly suitable for compatible fixtures currently using 250W-350W metal halide or high-pressure sodium systems where the existing luminaire housing can be retained.

120W LED Retrofit Kit | Parking Lot LED Retrofit | Shoebox Light Retrofit | HID Retrofit Kit | 250W Metal Halide Replacement | 350W Metal Halide Replacement | Roadway Light Retrofit | Area Light Retrofit | Pole Light Retrofit | Commercial Outdoor Lighting

Reuse Existing Fixtures & Reduce Energy Consumption

Upgrade compatible 250W-350W metal halide and high-pressure sodium lighting while retaining the existing fixture housing. The Eco Bright Light 120W LED Retrofit Kit combines 16,200 lumens, 135 lm/W efficiency, 5000K cool white light, 120° light distribution and universal 120-277V AC input to modernize compatible commercial outdoor lighting systems.

By replacing legacy HID components with an LED retrofit system, compatible existing luminaires can be upgraded without requiring complete fixture replacement.

Package Information
