Round High Bay Explosion Proof LED Light C1D2 – 150W 23,286lm 4000K 100-277V
Round High Bay Explosion Proof LED Light C1D2 – 150W 23,286lm 4000K 100-277V is backordered and will ship as soon as it is back in stock.
Round High Bay Explosion Proof LED Light C1D2 – 150W 23,286lm 4000K 100-277V is backordered and will ship as soon as it is back in stock.
Description
Description

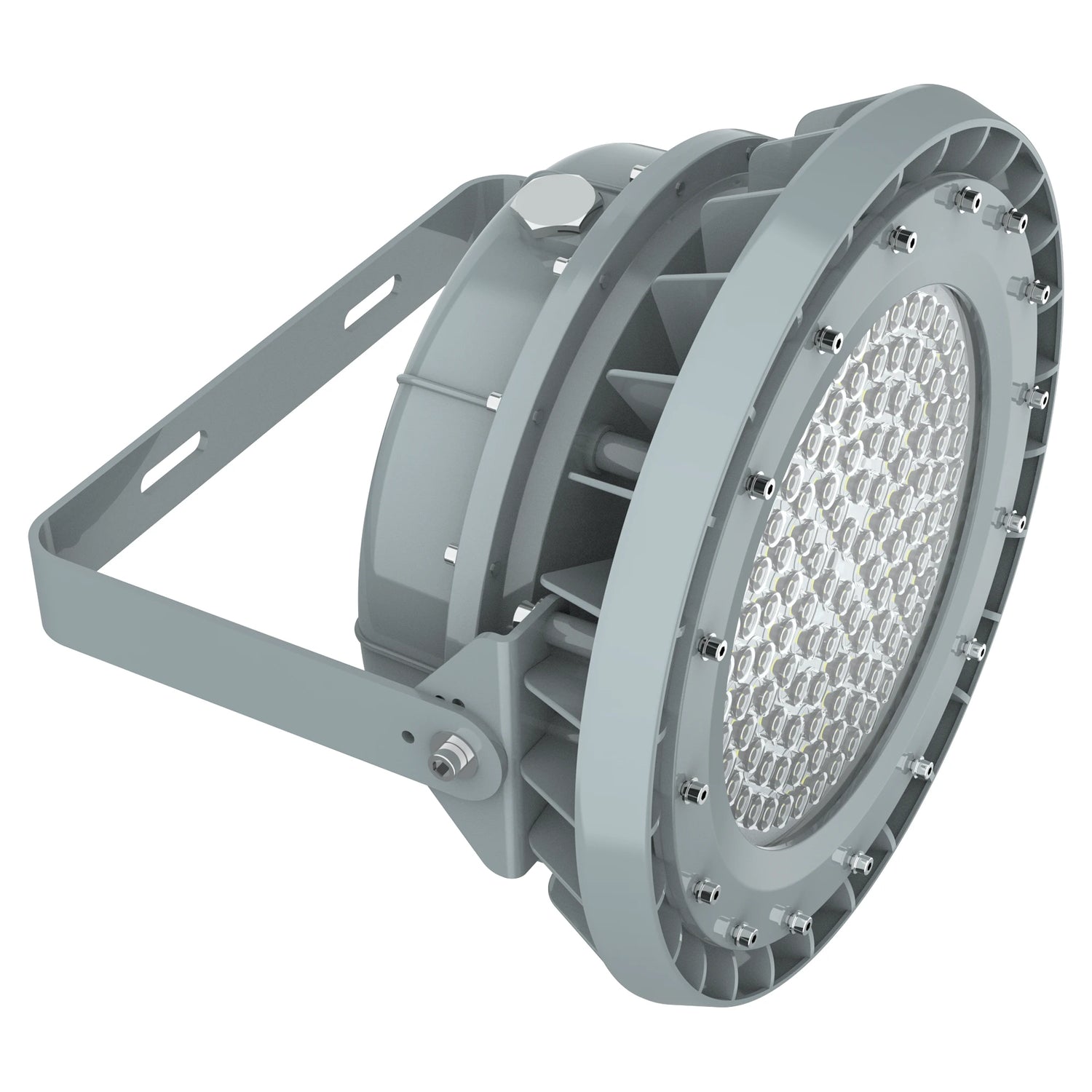

150W LED Explosion Proof Round High Bay Light C1D2 4000K
The Eco Bright LED 150W Explosion Proof Round High Bay Light delivers 23,286 lumens of 4000K neutral white illumination for demanding industrial environments. Designed for Class I Division II (C1D2) hazardous locations, this B3 Series fixture features a copper-free aluminum housing, impact-resistant glass lens, IP66 protection and 1-10V dimming for dependable industrial lighting.
C1D2 Hazardous Location Protection
Designed for Class I Division II, Groups A, B, C and D hazardous locations where flammable gases or vapors may be present under abnormal conditions.
23,286-Lumen Output
Powerful 150W LED performance delivers 4000K neutral white illumination with a wide 120° beam angle for industrial workspaces.
Heavy-Duty Construction
Copper-free aluminum housing, stainless steel hardware and IK08 impact protection for demanding industrial installations.
Industrial-Grade Durability
IP66 protection, efficient heat dissipation and corrosion-resistant construction tested for 1,000 hours of salt spray exposure.
Technical Specifications
| Brand | Eco Bright LED |
| Product Series | B3 Series |
| Product Type | LED Explosion Proof Round High Bay |
| Wattage | 150W |
| Luminous Flux | 23,286 Lumens |
| Input Voltage | AC 100-277V |
| Input Frequency | 50/60Hz |
| Power Factor | >0.95 |
| Color Temperature | 4000K Neutral White |
| Color Rendering Index (CRI) | >70 |
| Beam Angle | 120° |
| Dimming | 1-10V Dimmable |
| Hazardous Location Rating | Class I Division II (C1D2), Groups A, B, C, D |
| Safety Standards | UL 844 / UL 1598 |
| IP Rating | IP66 |
| Impact Protection | IK08 (Without Wire Guard) |
| Housing Material | Copper-Free Aluminum |
| Lens Material | Impact-Resistant Glass |
| Hardware Material | Stainless Steel |
| Housing Design | Vibration-Resistant Round Housing |
| Salt Spray Test | 1,000 Hours |
| Rated Lifespan | 50,000 Hours |
| LED Lumen Maintenance | L70 >150,000 Hours at 55°C |
| Standard Cable Entry | 3/4" NPT |
| Emergency Function | Not Included |
| Product Dimensions (W × D × H) | 14.56 × 14.56 × 7.87 in |
| Fixture Diameter | 14.56 in (370 mm) |
| Fixture Body Height | 7.87 in (200 mm) |
| Overall Height with Bracket | 11.40 in (289.5 mm) |
| Warranty | 5 Years |
Hazardous Location Safety & Durability
Designed for Class I Division II hazardous locations, this B3 Series fixture combines a durable copper-free aluminum housing with IP66 protection and IK08 impact resistance. Stainless steel hardware and 1,000-hour salt spray testing support reliable performance in demanding industrial and corrosive environments.

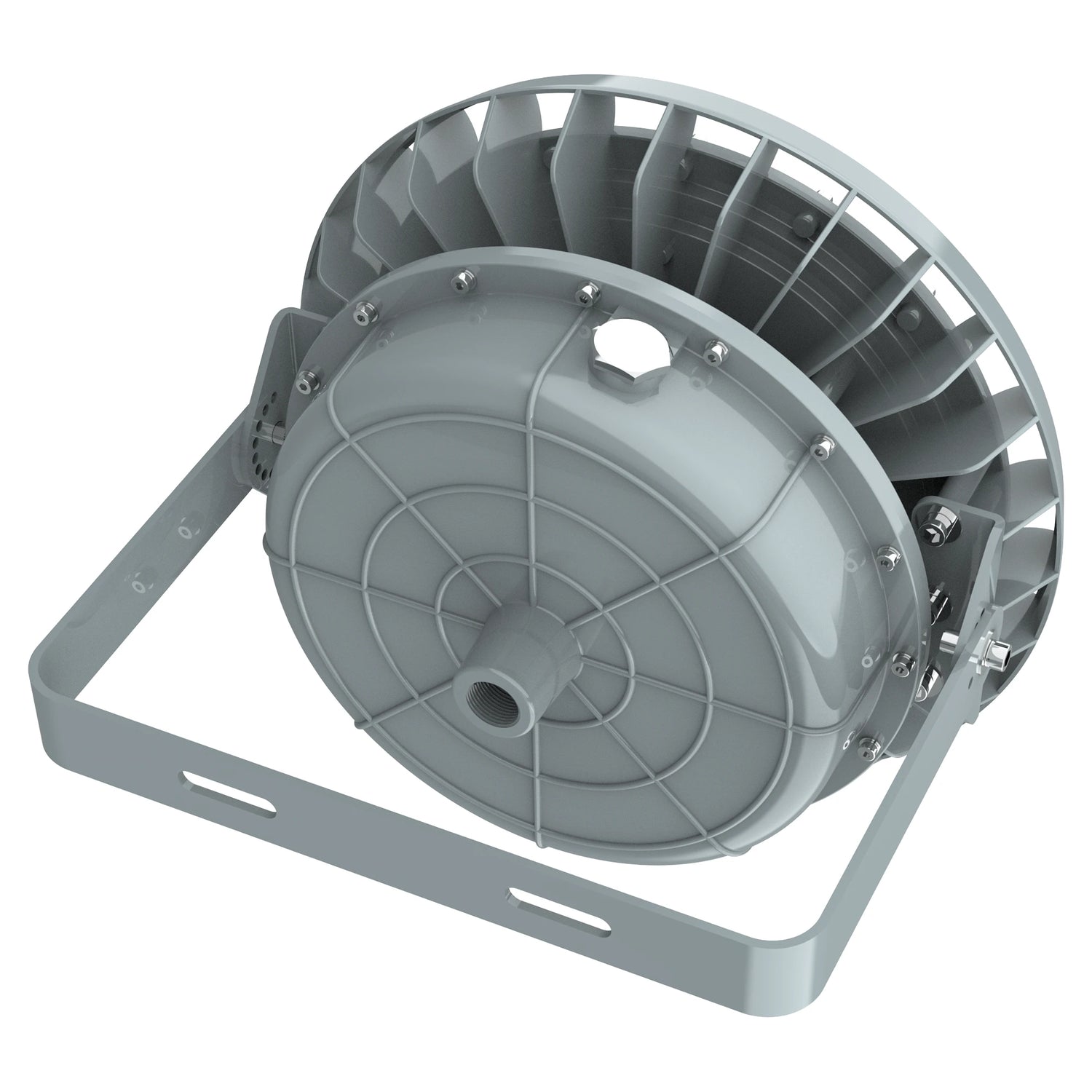

Installation & Compatibility
The fixture features a standard 3/4" NPT cable entry and supports ceiling, wall, pendant, surface and stanchion mounting with compatible accessories. Its round housing is designed for secure industrial installations. Installation must follow applicable hazardous-location requirements and electrical codes.
Product Dimensions & Clearance
The B3 round high bay features a 14.56-inch (370 mm) fixture diameter and 7.87-inch (200 mm) body height. The overall height, including the mounting bracket, is 11.40 inches (289.5 mm). Allow adequate clearance for mounting, electrical connections and maintenance.
Ideal Applications
Suitable for appropriately classified areas in petrochemical facilities, chemical processing plants, offshore oil and gas operations, wastewater treatment facilities, industrial warehouses, power plants and grain processing facilities.
Dependable Lighting for Hazardous Industrial Environments
150W • 23,286 Lumens • 4000K • C1D2 • IP66 • 120° Beam Angle • 1-10V Dimming
Package Information
| Carton Dimensions (L × W × H) | 19 × 19 × 11 in |
| Carton Weight | 23.1 lbs |
| Pack Quantity | 1 Unit per Carton |
