2-Light 180° Horizontal Tenon Adapter for Parking Lot Lights
2-Light 180° Horizontal Tenon Adapter for Parking Lot Lights is backordered and will ship as soon as it is back in stock.
2-Light 180° Horizontal Tenon Adapter for Parking Lot Lights is backordered and will ship as soon as it is back in stock.
Description
Description
2-Light 180° Horizontal Tenon Adapter for Parking Lot Lights
The Eco Bright Light 2-Light 180° Horizontal Tenon Adapter provides two opposing mounting positions for compatible LED parking lot lights, shoebox lights, street lights and flood lights. Designed to fit over a compatible 2-3/8-inch O.D. pole tenon, this heavy-duty steel adapter creates a straight two-way lighting layout for parking rows, roadways, commercial properties and industrial outdoor areas.
Two-Fixture Capacity
Mount two compatible slip-fitter LED fixtures from one existing pole-top connection.
180° Opposing Layout
Two horizontal arms position fixtures in opposite directions for balanced two-way light coverage.
2.36-Inch Tenon O.D.
Each horizontal fixture mount has an actual outer diameter of 2.362 inches or 60 mm.

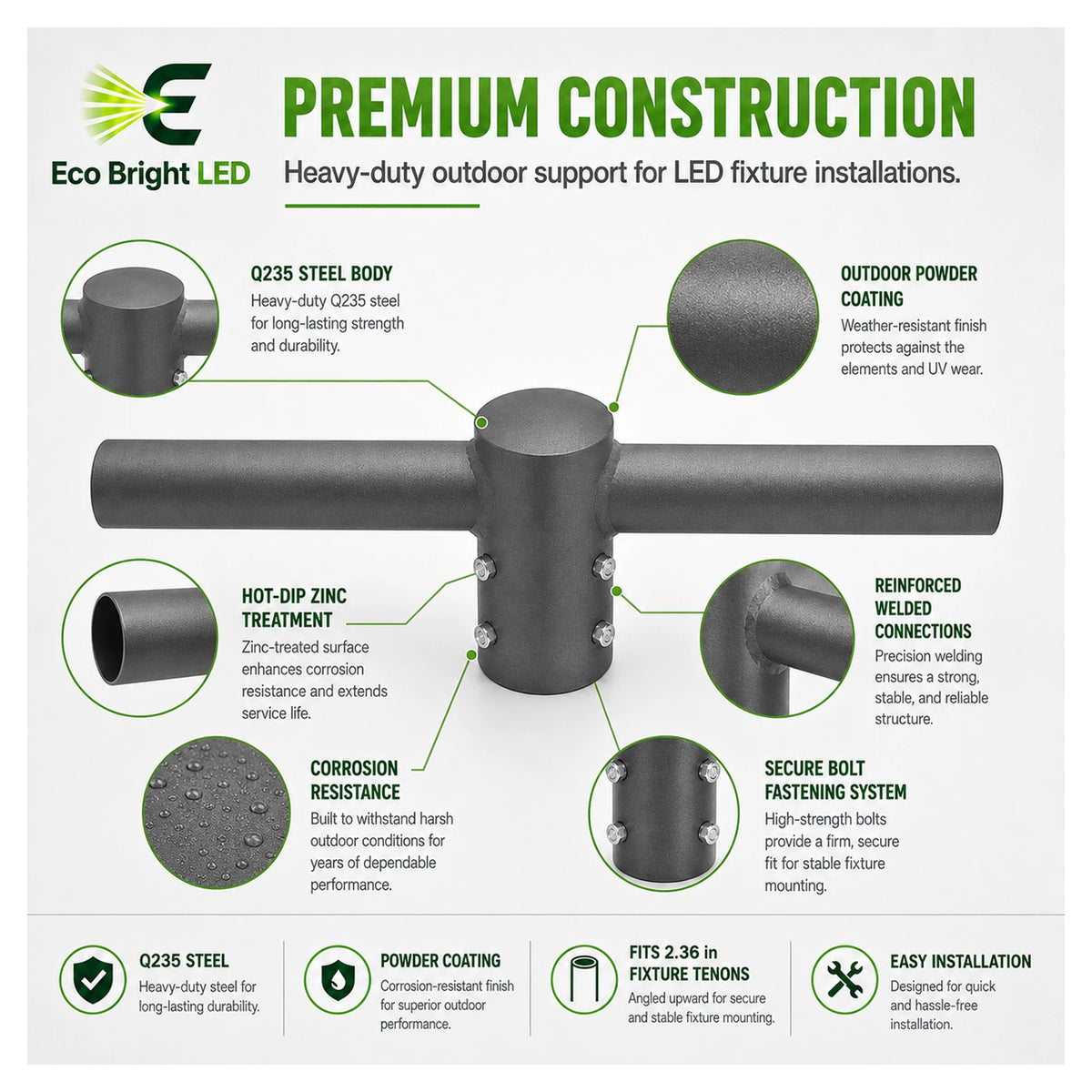

Outdoor Steel Construction
Q235 steel with zinc treatment and outdoor powder coating supports exterior lighting installations.
Technical Specifications
| Brand | Eco Bright Light |
| Product Type | Double Horizontal Tenon Adapter / 2-Light Pole Adapter |
| Fixture Capacity | 2 Compatible Slip-Fitter Fixtures |
| Fixture Arrangement | 180° Straight Opposing Layout |
| Pole-Top Compatibility | Fits Over a Compatible 2-3/8-Inch O.D. Pole Tenon |
| Fixture Tenon O.D. | 2.362 in / 60 mm |
| Fixture Tenon I.D. | 2.047 in / 52 mm |
| Overall Arm Span | Approximately 20.472 in / 520 mm |
| Arm Length from Center | Approximately 10.236 in / 260 mm Per Side |
| Overall Height | Approximately 7.008 in / 178 mm |
| Lower Sleeve Height | Approximately 4.409 in / 112 mm |
| Lower Sleeve O.D. | Approximately 2.992 in / 76 mm |
| Lower Sleeve I.D. | Approximately 2.667 in / 68 mm |
| Material | Q235 Steel |
| Surface Treatment | Hot-Dip Zinc Treatment with Outdoor Powder Coating |
| Fastening System | 6 × M8 Bolts and 2 × M5 Bolts |
| Included Component | 1 Metal Rain Cover |
| Compatible Fixtures | Parking Lot Lights, Shoebox Lights, Street Lights, Flood Lights and Area Lights |
Two-Way Commercial Lighting Solution
- Supports two compatible slip-fitter fixtures on one pole-top connection.
- 180° opposing layout distributes illumination in two directions.
- Actual 2.36-inch fixture tenon O.D. matches compatible slip-fitter mounts.
- Fits over a compatible 2-3/8-inch O.D. pole tenon or pole top.
- Q235 steel construction provides dependable structural support.
- Hot-dip zinc treatment helps protect the steel beneath the finish.
- Outdoor powder coating supports commercial exterior applications.
- Included fasteners and rain cover support a complete installation.
Installation and Compatibility
The lower sleeve installs over a compatible 2-3/8-inch O.D. pole tenon and is secured with multiple bolts. Two horizontal 2.36-inch O.D. tenons accept compatible fixtures with adjustable slip-fitter mounts. Verify the existing pole-top diameter, fixture slip-fitter inside diameter, structural capacity and required fasteners before installation.
Parking Lot, Roadway and Area Light Applications
Ideal for parking lots, parking rows, roadways, streets, commercial properties, shopping centers, campuses, warehouses and industrial yards requiring two-direction pole lighting.
Double Tenon Adapter | 2-Light Pole Adapter | Horizontal Tenon Adapter | Parking Lot Pole Bracket | Slip Fitter Adapter | Shoebox Light Adapter | Parking Lot Lighting | Street Lighting | Roadway Lighting | Commercial Outdoor Lighting
Expand One Pole to Two LED Light Fixtures
Choose Eco Bright Light for a heavy-duty 180° horizontal tenon adapter with two 2.36-inch fixture mounts, Q235 steel construction and outdoor surface protection.
Package Information
| Package Size | 21 × 8 × 4 in |
| Pack Quantity | 1 Adapter |
| Package Weight | 7.7 lbs |
