Jelly Jar Explosion Proof LED Light C1D2 – 20W 2,000lm 5000K 100-277V Ceiling Mount
Jelly Jar Explosion Proof LED Light C1D2 – 20W 2,000lm 5000K 100-277V Ceiling Mount is backordered and will ship as soon as it is back in stock.
Jelly Jar Explosion Proof LED Light C1D2 – 20W 2,000lm 5000K 100-277V Ceiling Mount is backordered and will ship as soon as it is back in stock.
Description
Description

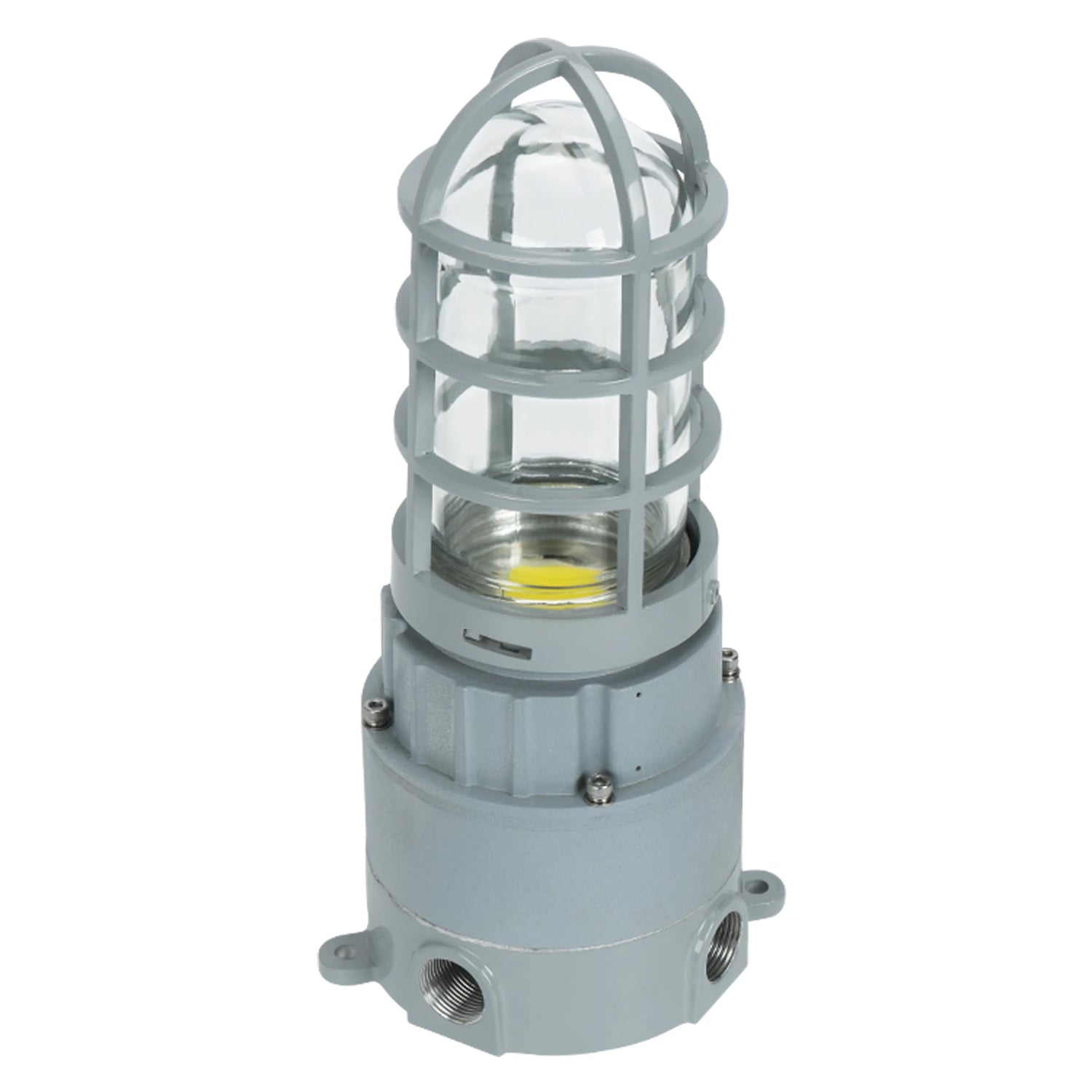

20W LED Explosion Proof Jelly Jar Light C1D2 5000K
The Eco Bright LED 20W Explosion Proof Jelly Jar Light delivers 2,200 lumens of 5000K daylight illumination for hazardous industrial environments. Designed for Class I Division II (C1D2) locations, this O Series fixture features a copper-free aluminum housing, long tempered glass globe, protective metal guard and IP66 protection. Its compact ceiling-mounted design provides dependable lighting for industrial corridors, utility areas and hazardous workspaces.
C1D2 Hazardous Location Protection
Designed for Class I Division II, Groups A, B, C and D locations where flammable gases or vapors may be present under abnormal conditions.
Efficient COB LED Lighting
Delivers 2,200 lumens of 5000K daylight illumination with an efficient 20W COB LED light source.
Long Globe Protection
Durable tempered glass globe with an external metal guard provides mechanical protection for industrial lighting applications.
Industrial-Grade Durability
Copper-free aluminum housing, IP66 environmental protection and IK08 impact resistance for demanding industrial environments.
Technical Specifications
| Brand | Eco Bright LED |
| Product Series | O Series |
| Product Type | LED Explosion Proof Jelly Jar Light |
| Wattage | 20W |
| Luminous Flux | 2,200 Lumens |
| Input Voltage | AC 100-277V |
| Input Frequency | 50/60Hz |
| Power Factor | >0.95 |
| Color Temperature | 5000K Daylight |
| Color Rendering Index (CRI) | >70 |
| LED Type | COB LED |
| Dimming | 1-10V Dimmable |
| Hazardous Location Rating | Class I Division II (C1D2), Groups A, B, C, D |
| Safety Standards | UL 844 / UL 1598 |
| IP Rating | IP66 |
| Impact Protection | IK08 |
| Housing Material | Copper-Free Aluminum |
| Diffuser Material | Tempered Glass |
| Glass Configuration | Long Globe - Clear Glass |
| Protective Guard | Long Globe Metal Guard |
| Mounting Type | Ceiling Mount |
| Housing Design | Compact Industrial Jelly Jar Housing |
| Cable Entries | Four Side Entries for Compatible Certified Cable Glands |
| Cable Entry Compatibility | M20, M25, 1/2" NPT or 3/4" NPT |
| Regular Outlet Length | 1 Meter |
| Product Diameter | 6.49 in (165 mm) |
| Overall Height | 10.88 in (276.5 mm) |
| Product Dimensions (Diameter × H) | 6.49 × 10.88 in |
| Warranty | 5 Years |
Hazardous Location Safety & Durability
Designed for Class I Division II hazardous locations, this O Series jelly jar light combines a corrosion-resistant copper-free aluminum housing with IP66 dust and water protection. Its thermal-shock-resistant tempered glass globe and IK08 impact rating support dependable operation in demanding industrial environments.

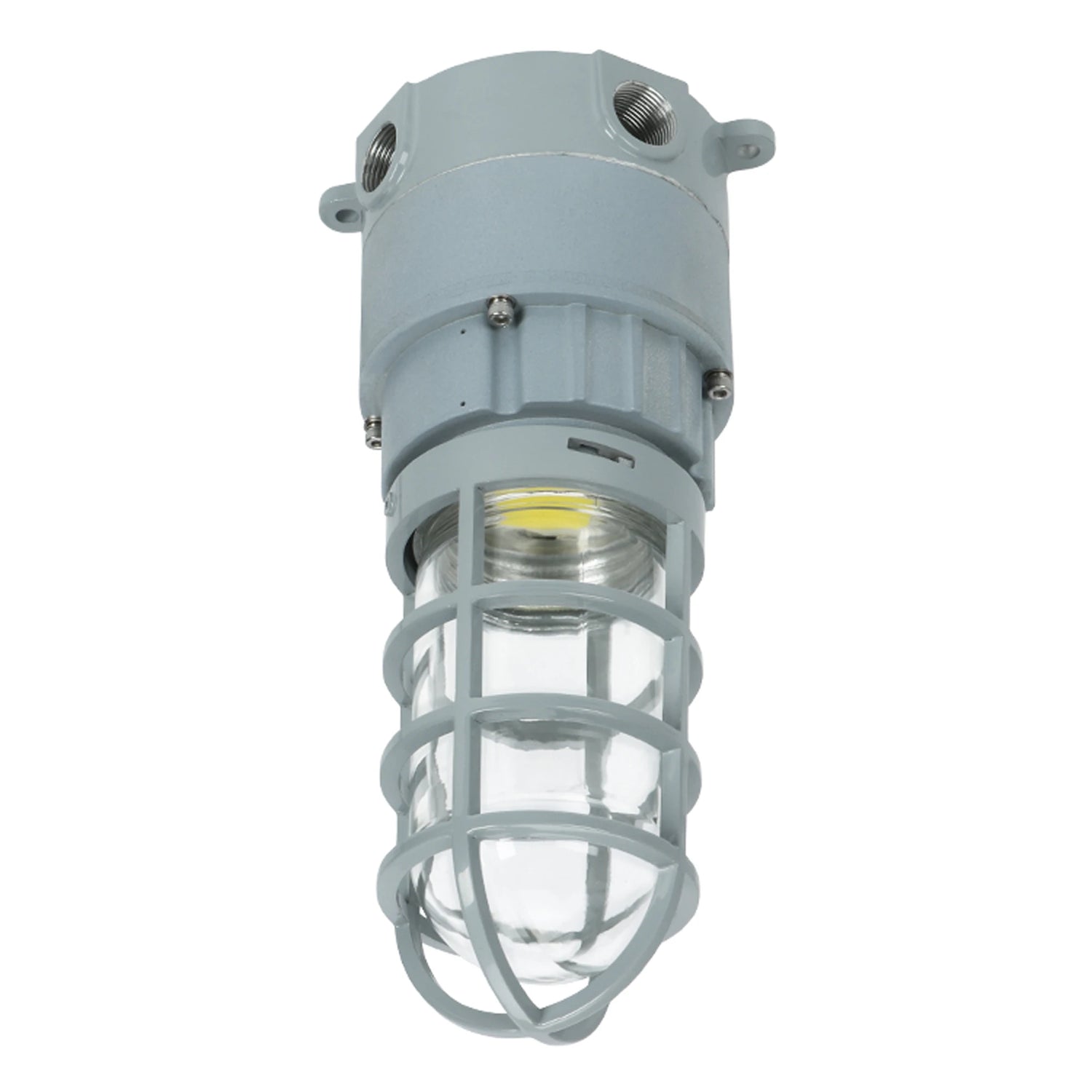

Installation & Compatibility

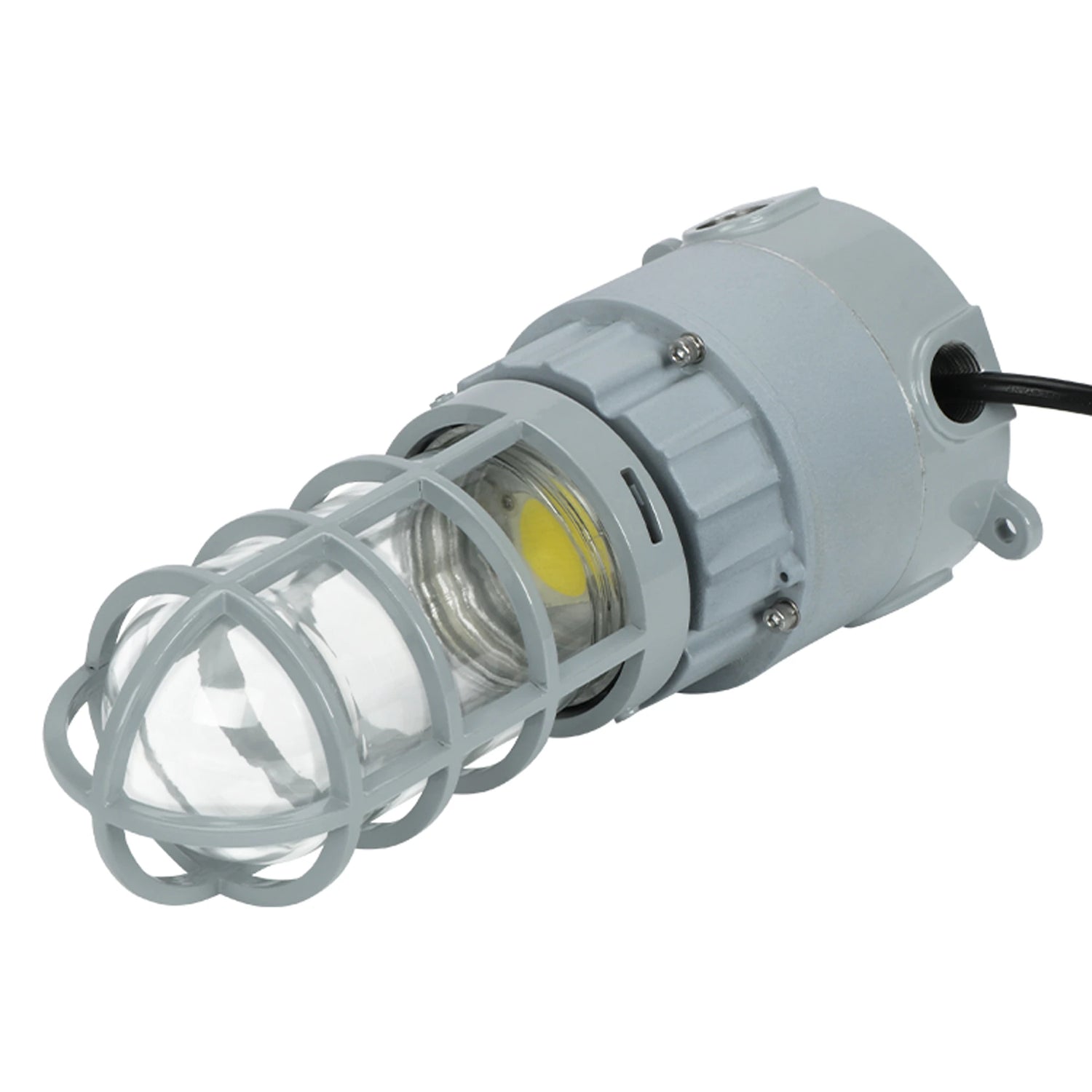

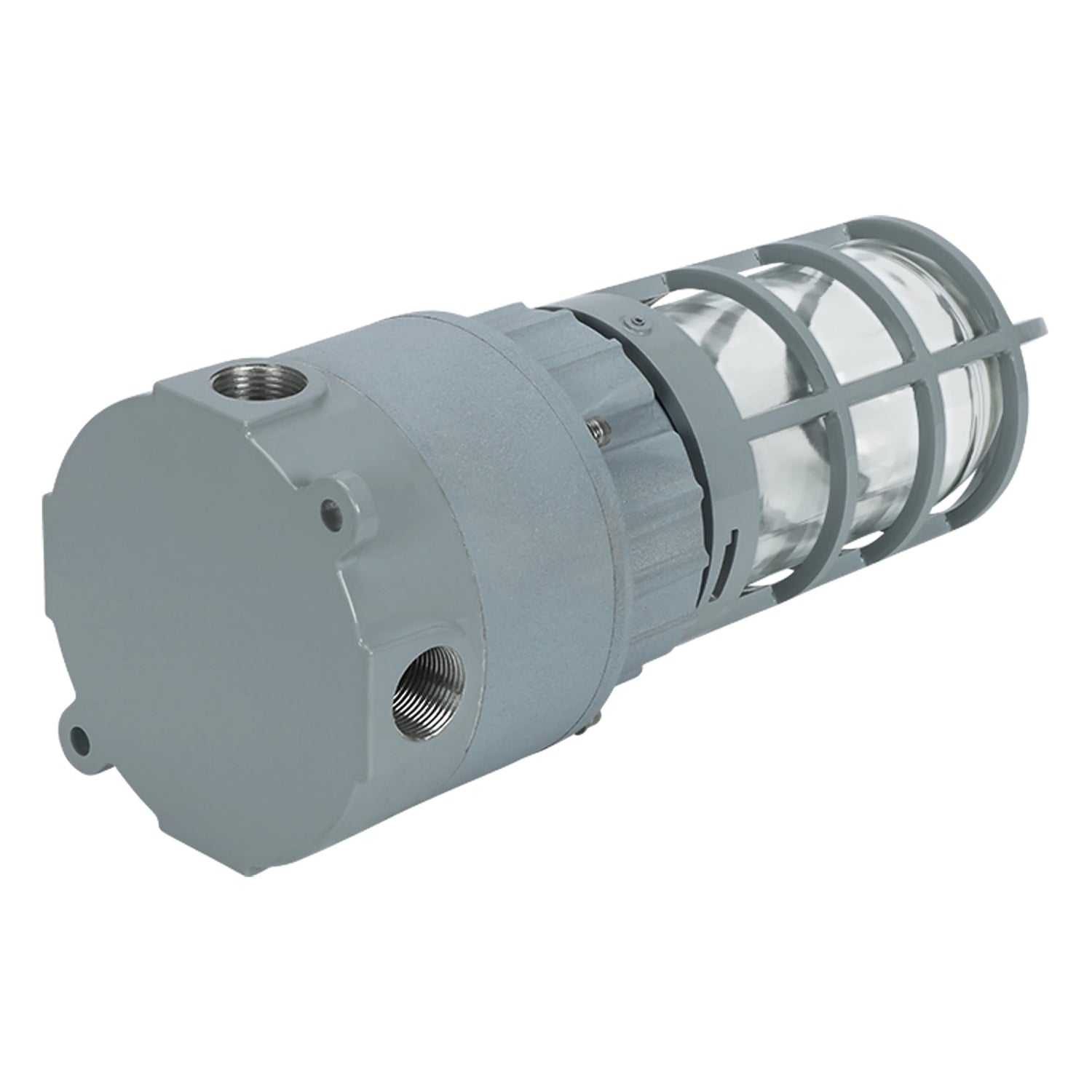

The fixture features a ceiling-mounted design with a long glass globe and protective metal guard. Four side cable entries support compatible certified M20, M25, 1/2" NPT or 3/4" NPT cable glands and stopping plugs. Installation must comply with applicable hazardous-location requirements and electrical codes.
Product Dimensions & Clearance
The ceiling-mounted long globe fixture measures 6.49 inches (165 mm) in diameter and 10.88 inches (276.5 mm) in overall height. Its compact cylindrical housing is suitable for industrial ceilings and confined utility spaces. Allow adequate clearance for mounting, wiring and maintenance.
Ideal Applications

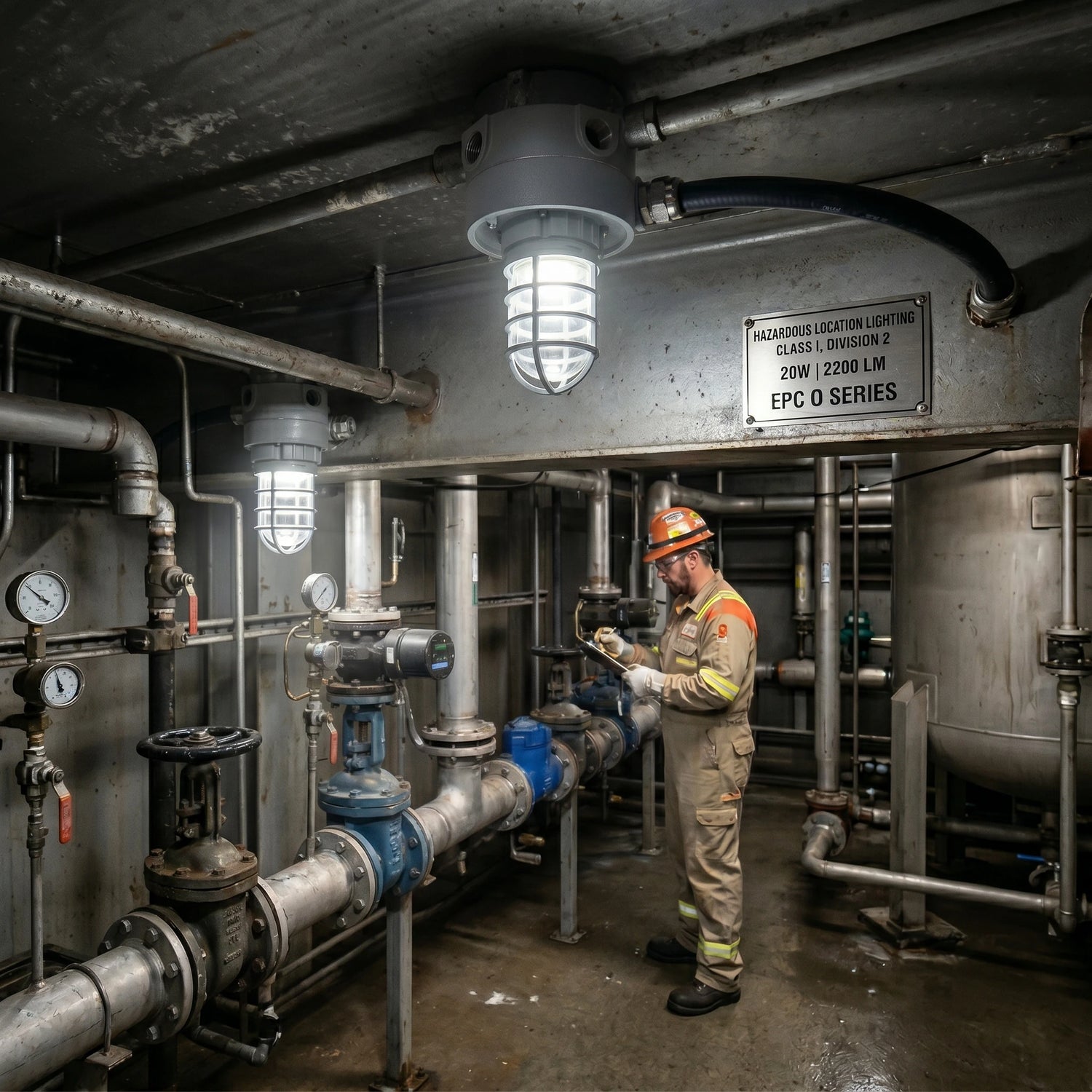

Suitable for appropriately classified industrial environments, including petrochemical facilities, oil and gas storage areas, chemical processing plants, wastewater treatment facilities, loading docks, offshore platforms, industrial corridors and utility rooms.
Reliable Compact Lighting for Hazardous Environments
20W • 2,200 Lumens • 5000K Daylight • C1D2 • IP66 • IK08 • Long Globe • Ceiling Mount
Package Information
| Carton Dimensions (L × W × H) | 14 × 10 × 8 in |
| Carton Weight | 7.3 lbs |
| Pack Quantity | 1 Unit per Carton |
