20W Selectable LED Light Engine 4-10 Inch Recessed Downlight
20W Selectable LED Light Engine 4-10 Inch Recessed Downlight is backordered and will ship as soon as it is back in stock.
Accessories
20W Selectable LED Light Engine 4-10 Inch Recessed Downlight is backordered and will ship as soon as it is back in stock.
Description
Description

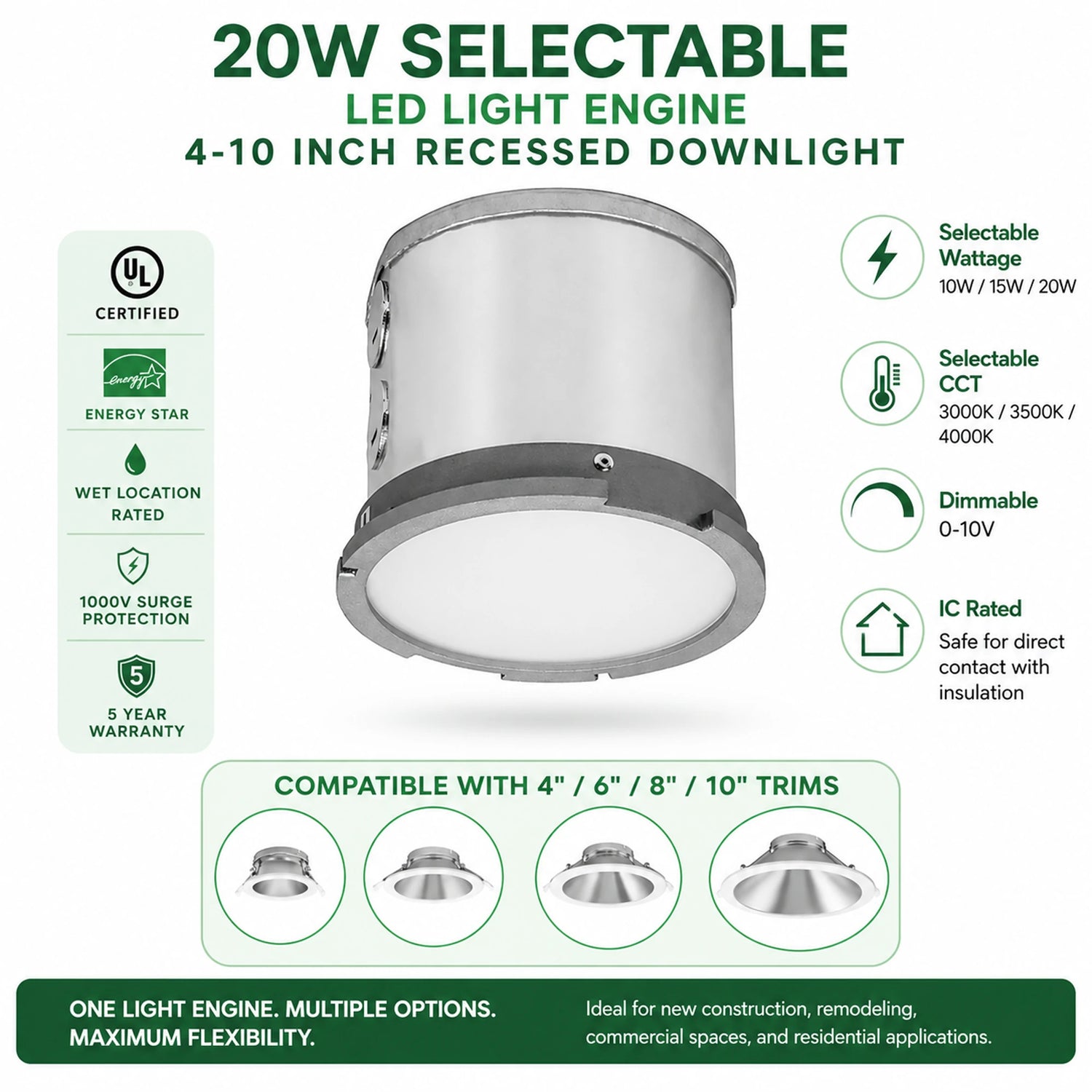

20W Selectable Architectural LED Light Engine

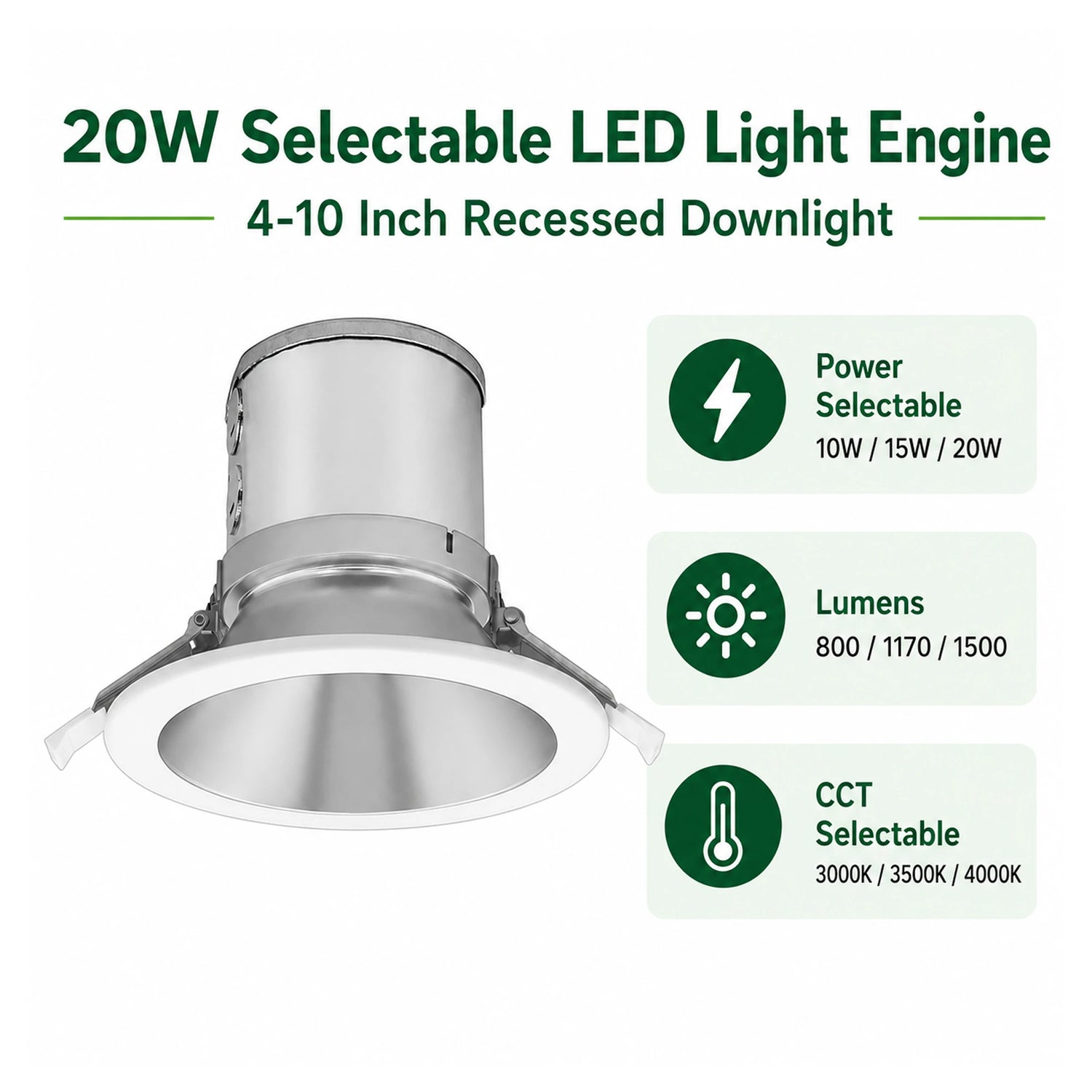

Wattage Selectable
Choose 10W, 15W or 20W with integrated dip switches to match brightness needs in commercial, retail or residential spaces.
Color Selectable CCT
Select 3000K, 3500K or 4000K for warm, neutral or cool white recessed lighting without changing the fixture.
Trim Flexibility

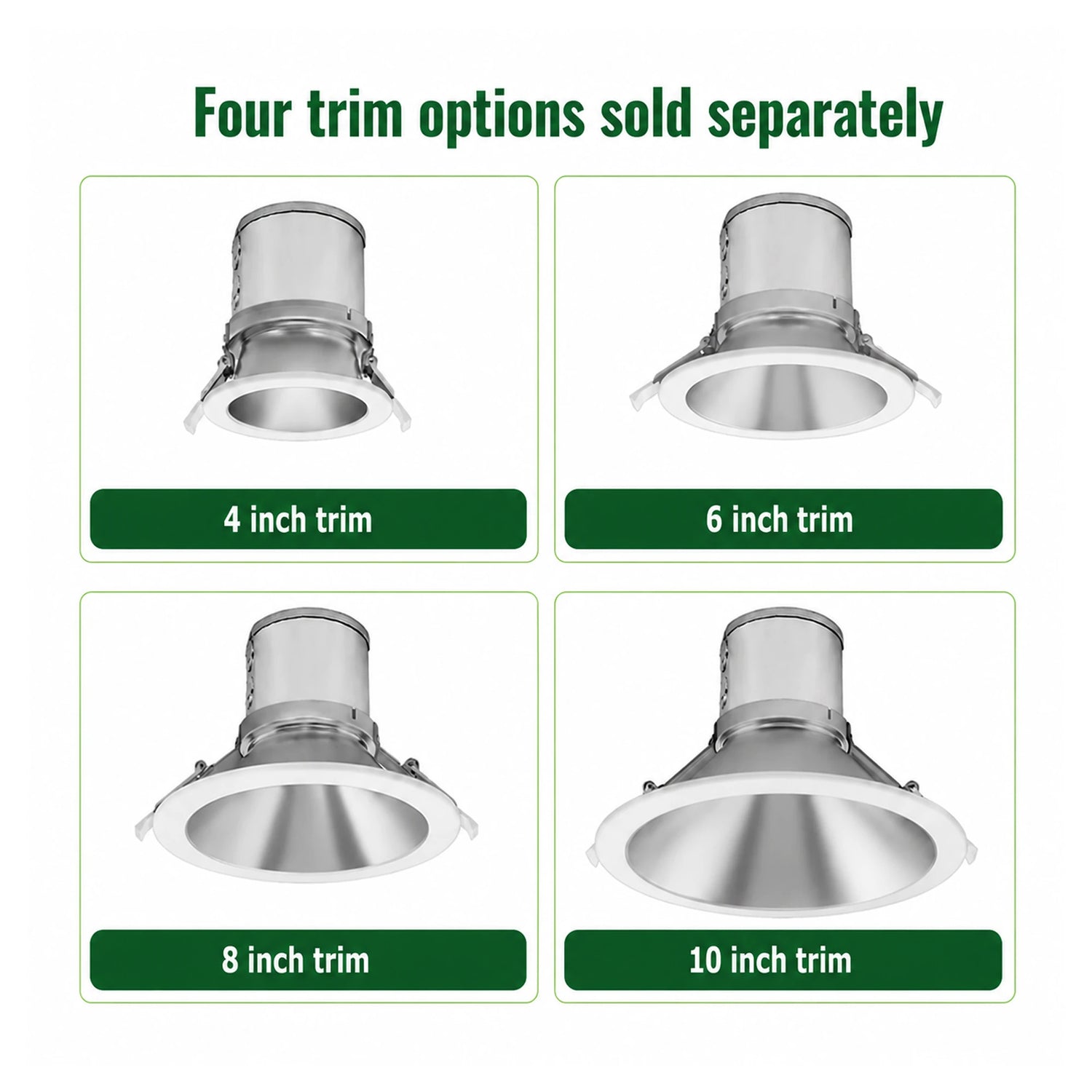

Works with compatible 4 inch, 6 inch, 8 inch and 10 inch reflector trims, making it a flexible architectural downlight solution.
No Housing Required

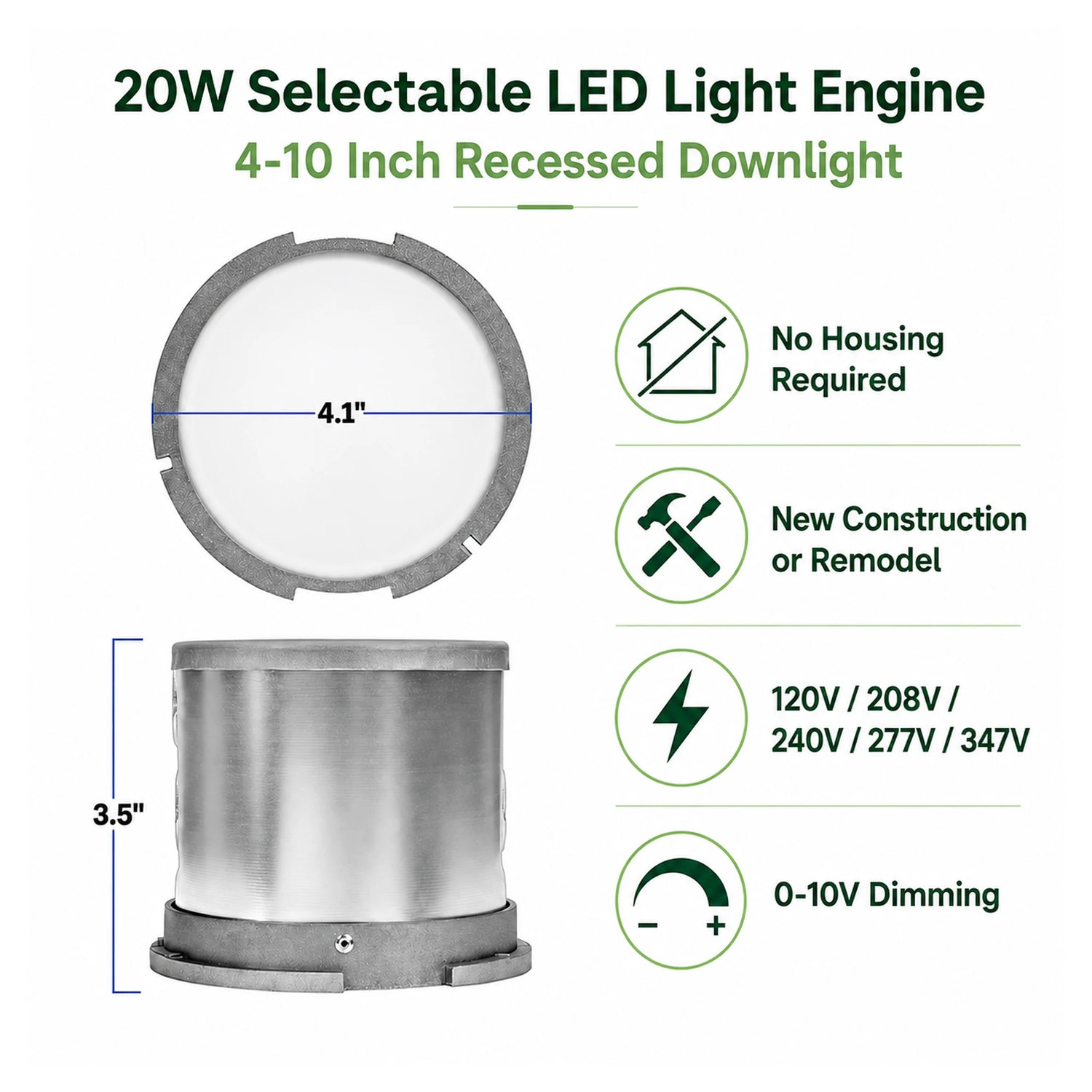

Integrated J-box design supports new construction or remodel installation without traditional recessed housing.
Technical Specifications
| Brand | EBL PremiumSpec |
| Product Type | Architectural LED Light Engine |
| Wattage | 10W / 15W / 20W Selectable |
| Lumen Output | 800 / 1,170 / 1,500 Lumens |
| Color Temperature | 3000K / 3500K / 4000K Selectable |
| Voltage | 120V / 208V / 240V / 277V / 347V |
| Dimming | 0-10V Dimmable |
| CRI | Standard CRI |
| Rated Life | 60,000 Hours L70 |
| Installation | Integrated J-Box, No Housing Required |
| Trim Compatibility | 4", 6", 8" and 10" Compatible Trims Sold Separately |
| Ratings | UL, Damp Location, Energy Star Certified, IC Rated |
| Surge Protection | 1000V |
| Warranty | 5-Year Limited Warranty |
Why This LED Light Engine Works for You
- Selectable wattage and CCT reduce SKU complexity for contractors and retrofit projects.
- Up to 1,500 lumens provides bright, clean recessed lighting for offices, stores and hotels.
- Compatible trim system supports round, square and wall wash architectural downlight layouts.
- IC rated design works in insulated and uninsulated ceiling applications.
- 0-10V dimming gives smooth light control for commercial interiors and hospitality spaces.
- Deeply regressed matte diffuser helps soften glare and create even, comfortable illumination.
Ideal Applications
This selectable architectural LED light engine is designed for flexible recessed lighting projects that need adjustable output, selectable color temperature and professional downlight performance.
Commercial Lighting | Retail Stores | Offices | Hotels | Restaurants | Residential Recessed Lighting | Remodel Projects | New Construction | Hospitality Lighting | Architectural Ceiling Lighting
