2x4 LED Emergency Backlit Panel 30-72W for Office Lighting
2x4 LED Emergency Backlit Panel 30-72W for Office Lighting is backordered and will ship as soon as it is back in stock.
2x4 LED Emergency Backlit Panel 30-72W for Office Lighting is backordered and will ship as soon as it is back in stock.
Description
Description

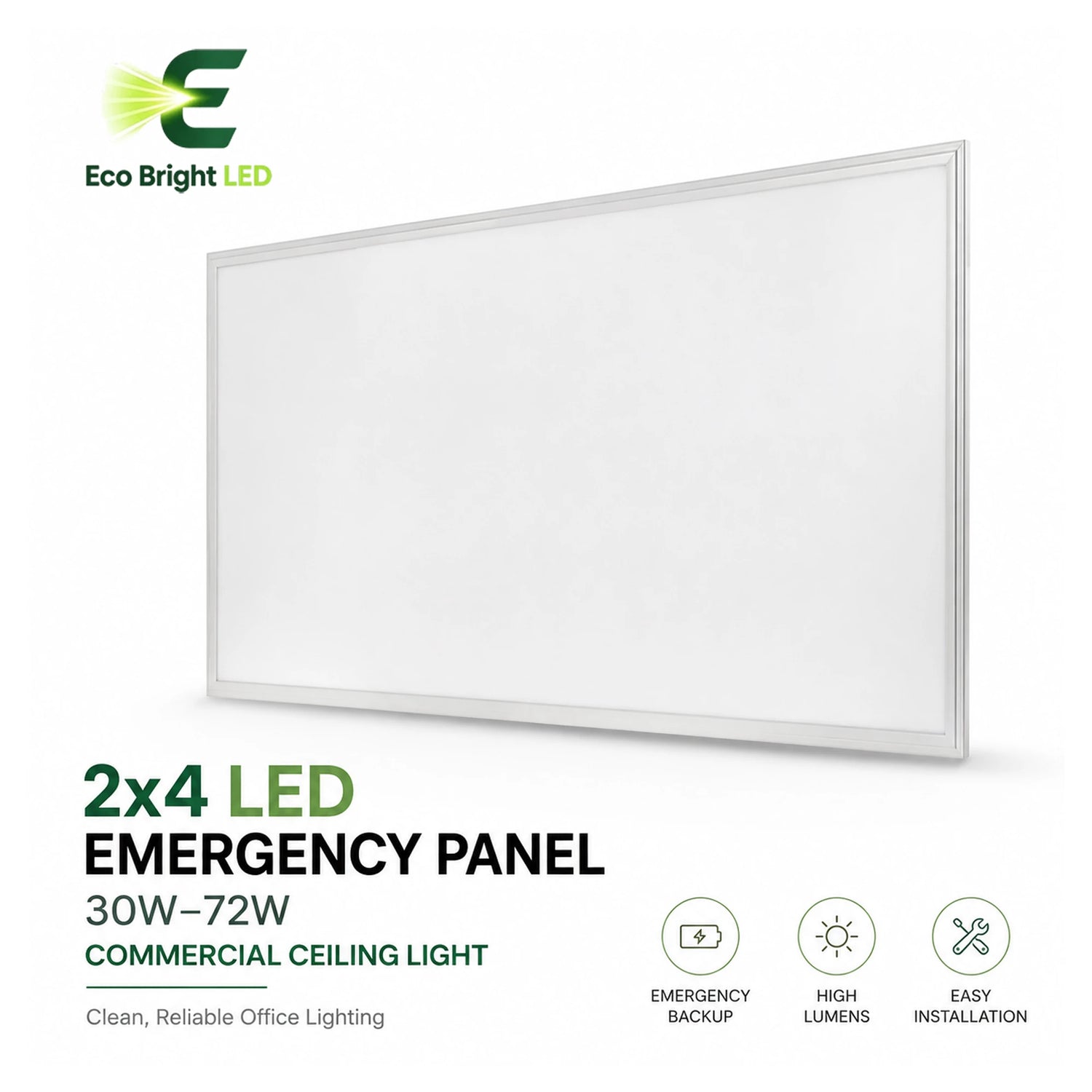

2x4 LED Emergency Backlit Panel 30-72W for Office Lighting
The Eco Bright Light 2x4 Emergency LED Backlit Panel combines five selectable wattages, five selectable color temperatures and an integrated emergency lighting system in one commercial ceiling fixture. Delivering up to 9,000 lumens with smooth backlit illumination, it is designed for offices, schools, healthcare facilities, conference rooms, retail stores, hotels and restaurants.
5-Wattage Selectable
Choose 30W, 40W, 50W, 60W or 72W to match room size, ceiling height and required brightness.
5CCT Selectable
Select from five color temperatures to support offices, classrooms, retail and hospitality environments.
90-Minute Emergency Backup
The integrated emergency battery supplies reduced-power illumination for approximately 90 minutes during an outage.
Uniform Backlit Design
Optical lenses positioned over the LED chips provide even illumination with fewer dark spots.
Technical Specifications
| Brand | Eco Bright Light |
| Product Type | 2x4 Emergency Backlit LED Panel Light |
| Selectable Wattage | 30W / 40W / 50W / 60W / 72W |
| Rated Lumen Output | 3,750 lm / 5,000 lm / 6,250 lm / 7,500 lm / 9,000 lm |
| Luminous Efficacy | 125 lm/W |
| Selectable CCT | 3000K / 3500K / 4000K / 5000K / 6500K |
| Input Voltage | 120-277V AC |
| CRI | >80 |
| Emergency Output | 8W Emergency Lighting Mode |
| Emergency Runtime | Approximately 90 Minutes |
| Emergency Controls | Self-Test Button and Self-Diagnostic Function |
| Light Distribution | 110° Average Beam Angle |

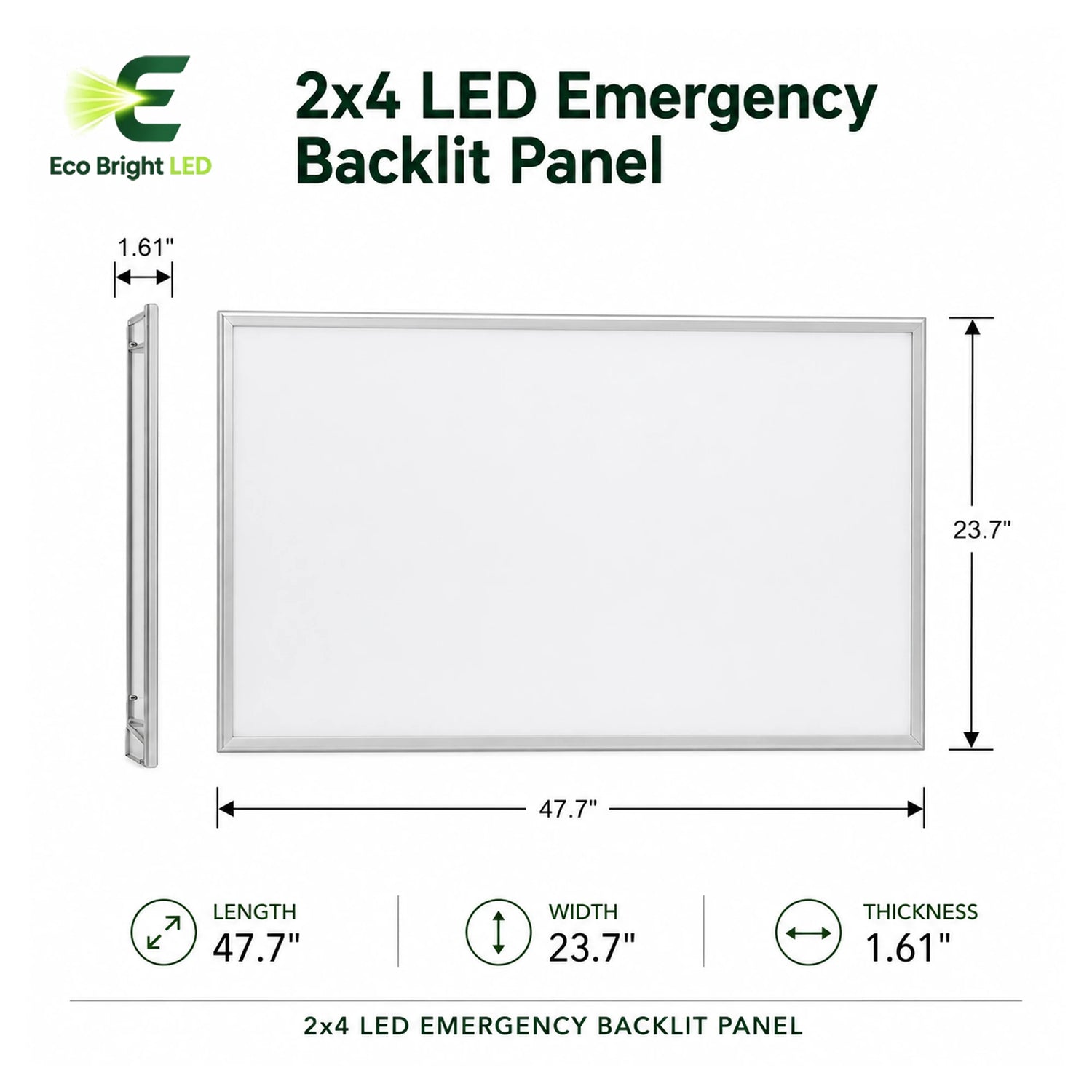

| Fixture Dimensions | Approximately 47.7 × 23.7 × 1.61 in |
| Construction | White Aluminum Heat Sink with High-Transmission Polycarbonate Cover |
| Optical System | Backlit SMD LED Chips with Individual Optical Lenses |
| Junction Box | Built-In Junction Box |
| Mounting | Standard T-Grid Recessed Ceiling or Compatible Frame Mount |
| Operating Temperature | -25°C to 45°C |
| Rated Lifetime | 50,000 Hours |
| HID Replacement | Approximately 56W-150W Metal Halide or HPS |
| Certifications | ETL and DLC Premium |
| Warranty | 5-Year Limited Warranty |
Emergency Commercial Ceiling Lighting
- Integrated emergency battery provides approximately 90 minutes of backup lighting.
- Self-test and self-diagnostic functions simplify emergency system inspection.
- Five wattage settings reduce the need to stock separate panel light versions.
- Five color temperature options support multiple commercial environments.
- Up to 9,000 lumens provides bright general-purpose ceiling illumination.
- Backlit optical design delivers uniform lighting without visible dark spots.
- Low-profile housing fits standard commercial T-grid ceiling systems.
- 50,000-hour rated lifetime helps reduce maintenance and replacement costs.
Uniform Backlit Illumination
High-brightness SMD LED chips and individual optical lenses distribute light evenly across the polycarbonate cover. The backlit design helps maintain consistent illumination across the panel surface and supports offices, classrooms and healthcare areas where visual comfort and uniform lighting are priorities.
T-Grid Ceiling Installation
The panel is designed for recessed installation in a compatible standard T-grid suspended ceiling. A built-in junction box simplifies electrical connections, while compatible frame-mount solutions may be used for suitable ceiling applications. Installation must follow applicable electrical and emergency-lighting codes.

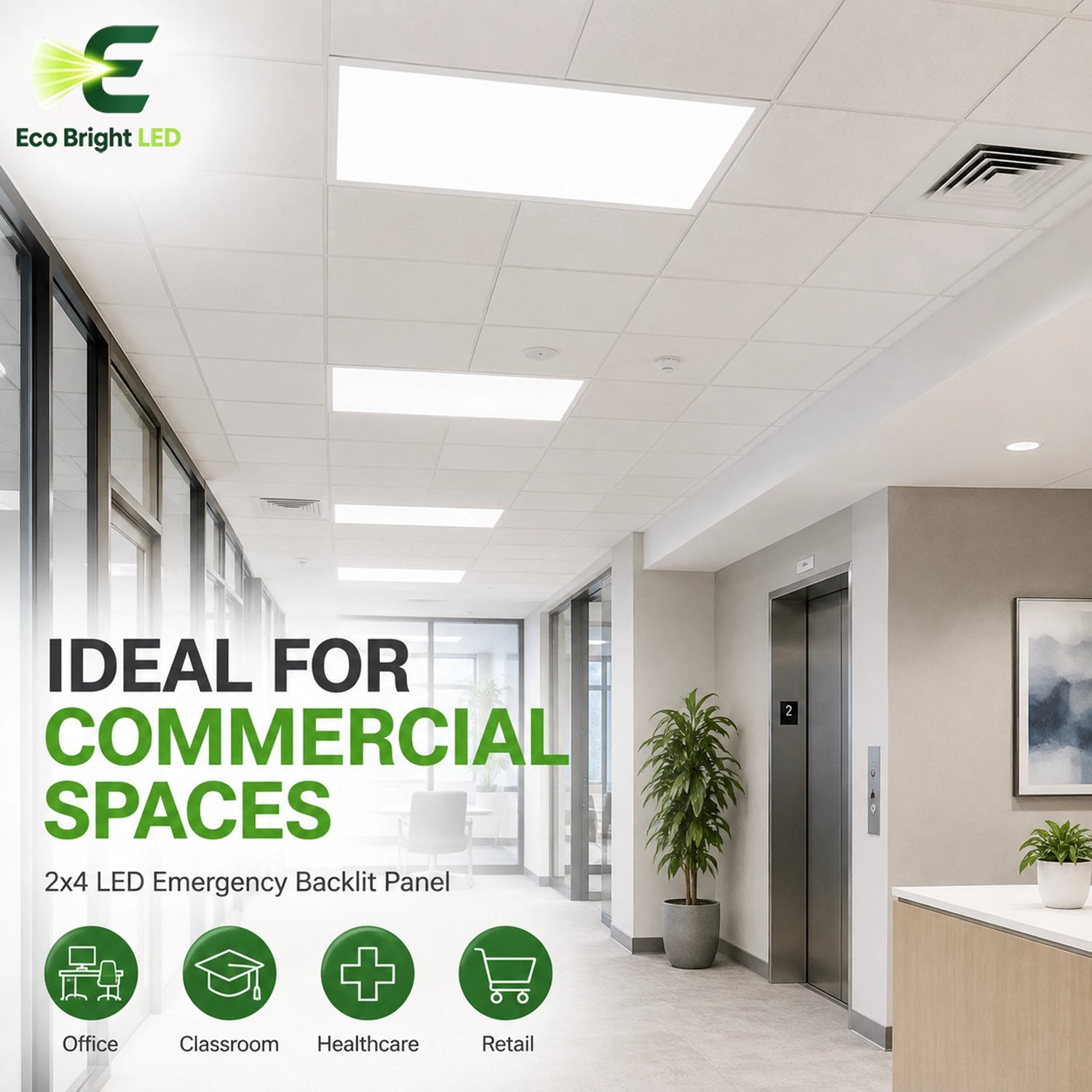

Office, School and Healthcare Applications
Ideal for offices, classrooms, educational facilities, hospitals, clinics, conference rooms, retail stores, hotels, restaurants and other commercial spaces requiring general and emergency lighting.
2x4 LED Panel Light | Emergency LED Panel | Backlit LED Panel | Office Lighting | Classroom Lighting | Hospital Lighting | Commercial Ceiling Light | LED Drop Ceiling Light | Emergency Backup Lighting | DLC Premium Panel Light
Combine General and Emergency Lighting
Choose Eco Bright Light for five selectable wattages, five adjustable color temperatures, up to 9,000 lumens, uniform backlit illumination and approximately 90 minutes of emergency backup.
Package Information
| Package Size | 49 × 9 × 26 in |
| Pack Quantity | 6 Fixtures |
| Package Weight | 55 lbs |
