30 Ft Square Steel Light Pole 5x5 10 Gauge Parking Lot
30 Ft Square Steel Light Pole 5x5 10 Gauge Parking Lot is backordered and will ship as soon as it is back in stock.
30 Ft Square Steel Light Pole 5x5 10 Gauge Parking Lot is backordered and will ship as soon as it is back in stock.
Description
Description

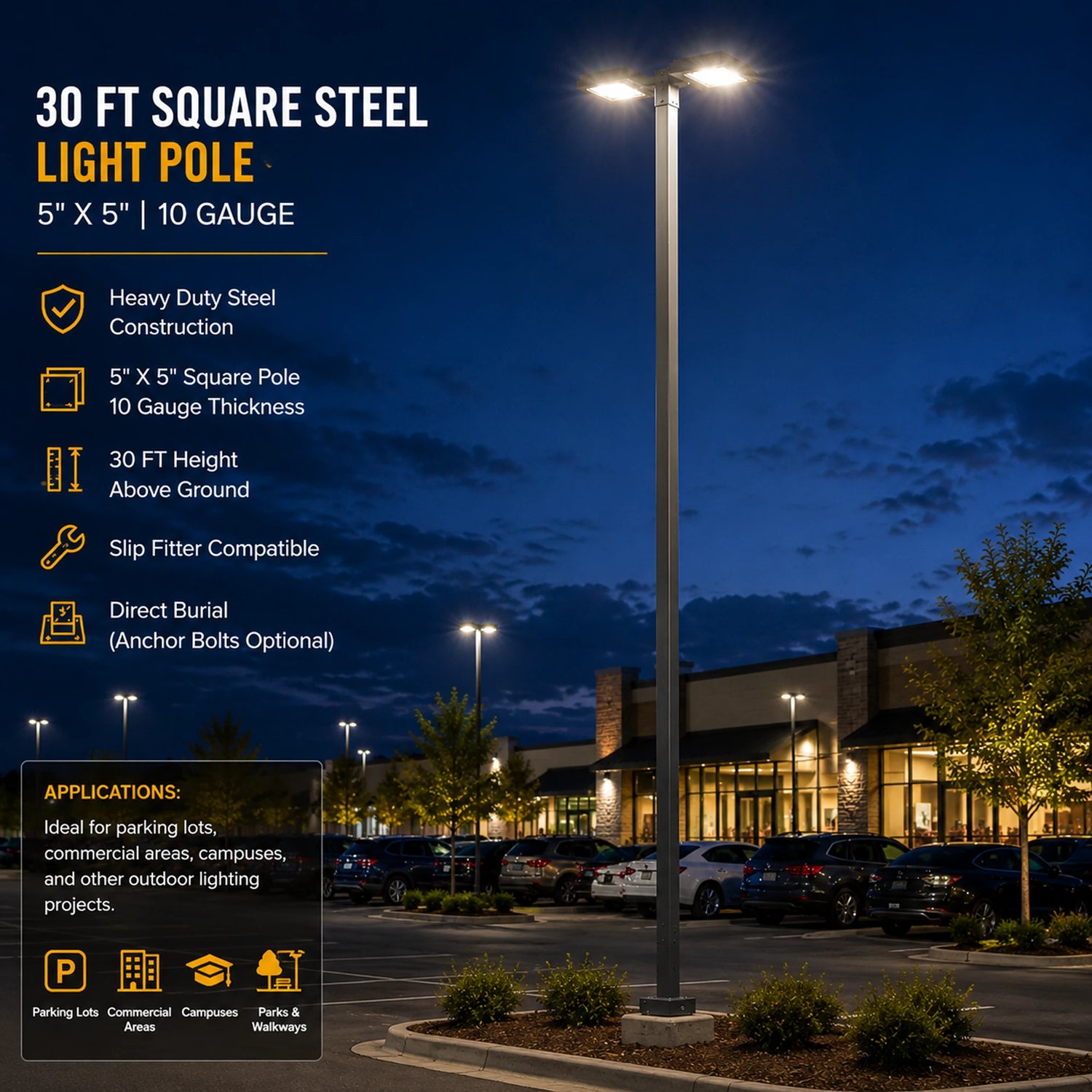

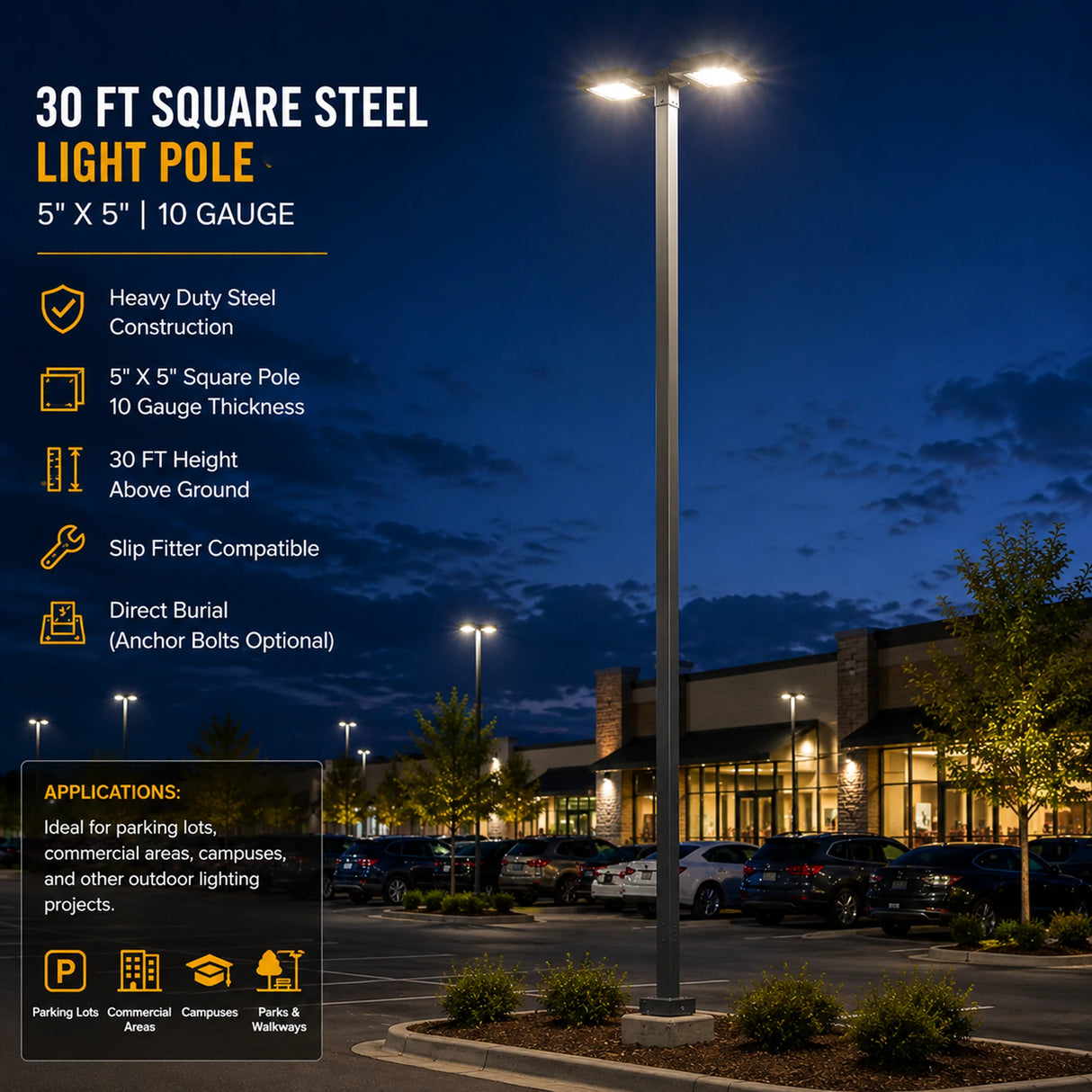

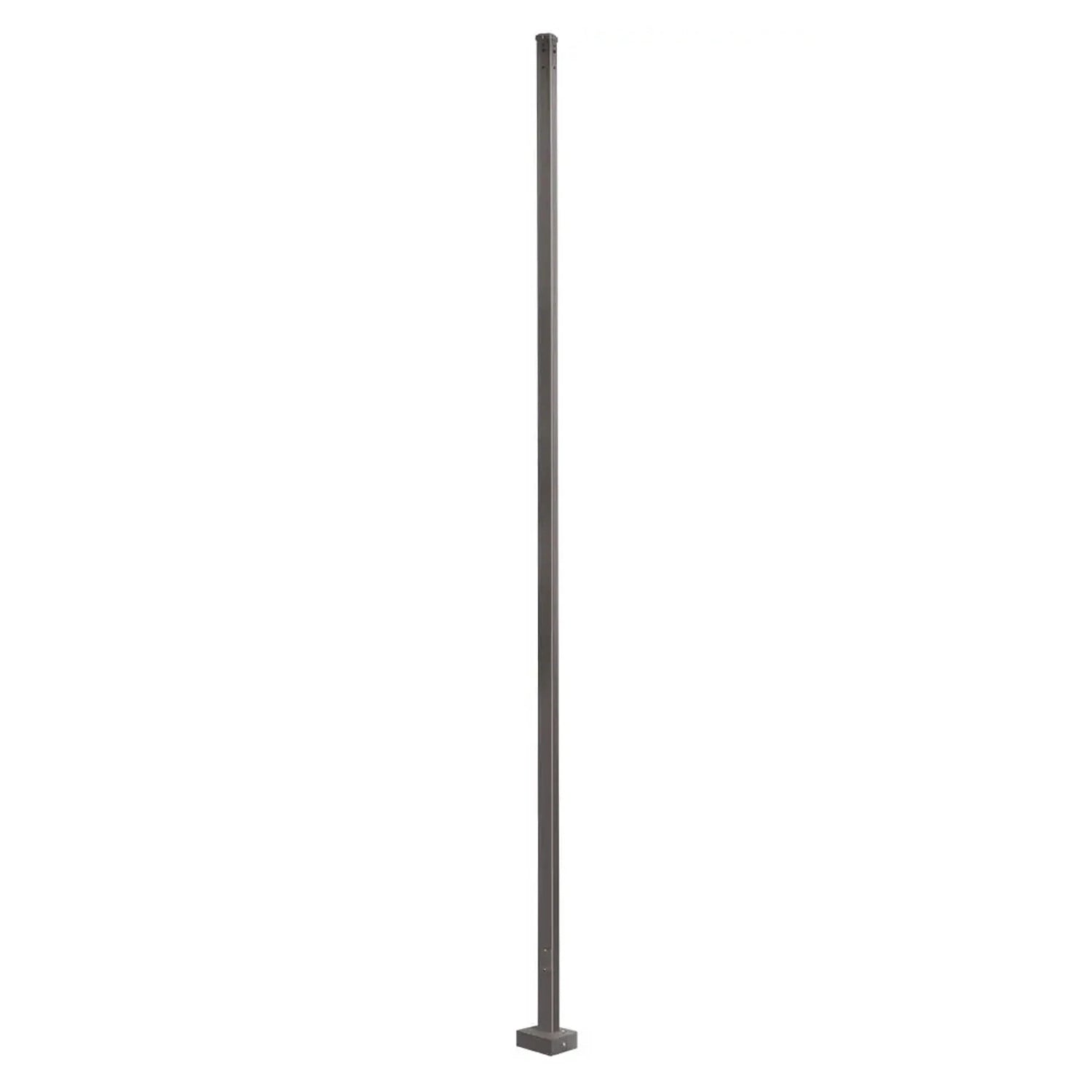

30FT 5x5 Inch Square Steel Light Pole for Parking Lot Lighting
The Eco Bright Light 30FT Square Steel Light Pole is designed for commercial outdoor lighting installations requiring a durable, elevated mounting structure. Built from high-strength steel tubing, it features a 5 x 5-inch square shaft, 10-gauge wall thickness and textured architectural bronze powder-coated finish. Suitable for parking lots, retail centers, industrial parks, campuses and commercial outdoor lighting projects.
Heavy-Duty Steel Shaft
High-strength steel construction with a 5 x 5-inch square shaft and 10-gauge wall thickness.
30FT Mounting Height
Elevated mounting height supports commercial area lighting for large parking areas and outdoor spaces.
Architectural Bronze Finish
Textured bronze powder coating is baked to enhance paint adhesion, hardness and durability.
Installation Accessories
Includes anchor bolts, an electrical wiring handhole with cover and a two-piece steel base cover.

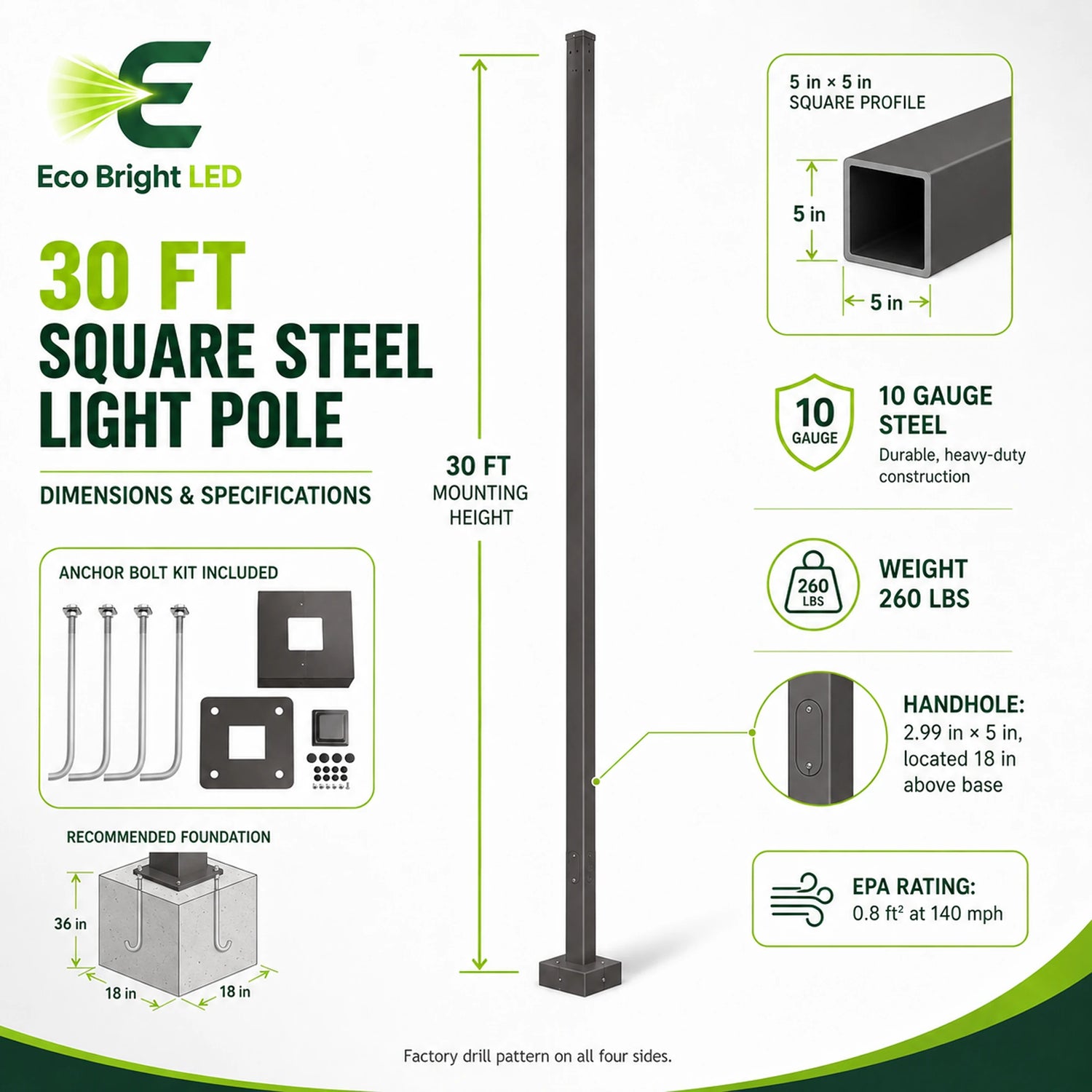

Technical Specifications
| Brand | Eco Bright LED |
| Model | P30F5NSQ |
| Product Type | Square Steel Outdoor Light Pole |
| Mounting Height | 30 FT |
| Pole Cross Section | 5 x 5 Inch Square |
| Wall Thickness | 10 Gauge |
| Material | High-Strength Steel Tube |
| Finish | Textured Architectural Bronze Powder Coat |
| Pole Weight | 286 lbs |
| Base Plate Bolt Circle | 10.0–11.0 in |
| Anchor Bolt Dimensions | 0.79 × 35 × 3.15 in (Diameter × Length × Hook) |
| Anchor Bolt Projection | 3.25–3.75 in |
| Handhole Size | 2.99 × 5 in |
| Anchor Bolts | Included |
| Handhole & Cover | Included |
| Base Cover | Two-Piece Formed Steel Base Cover Included |
| Mounting Options | Side-Drilled Arm-Mounted Area Lights or Compatible Tenon-Mounted Fixtures |
| Typical Applications | Parking Lots, Retail Centers, Industrial Parks, Schools, Transit Facilities and Commercial Properties |
Wind Load EPA Ratings
Maximum Effective Projected Area (EPA) ratings for the 30FT square steel pole, based on a 1.3 gust factor.
| 80 mph | 7.7 ft² |
| 90 mph | 6.5 ft² |
| 100 mph | 5.3 ft² |
| 110 mph | 4.4 ft² |
| 120 mph | 2.7 ft² |
| 130 mph | 1.8 ft² |
| Gust Factor | 1.3 |
Important: Fixture EPA, mounting hardware and foundation requirements must be verified for the applicable design wind speed and local building codes.

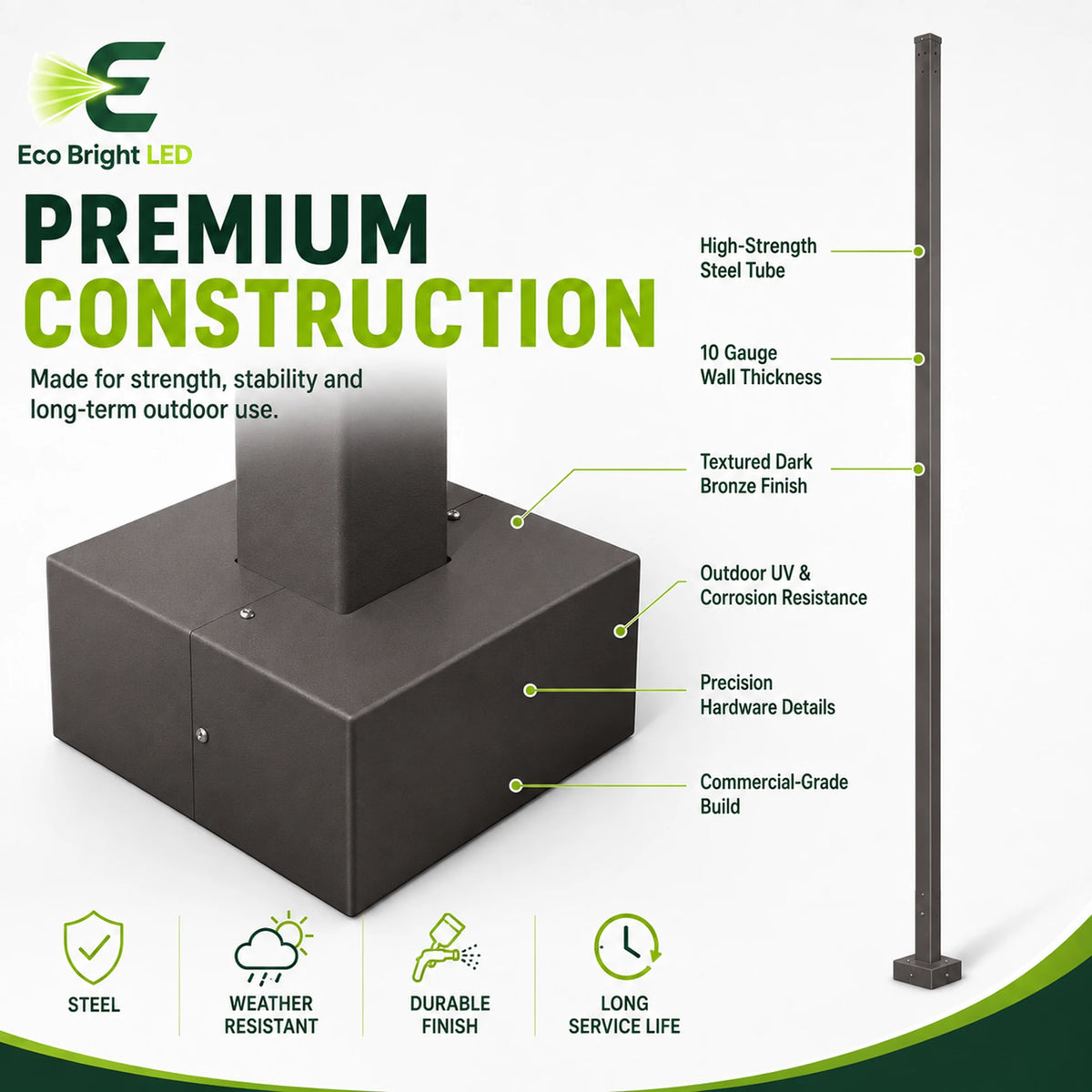

Heavy-Duty Steel Construction & Finish
The pole features a 10-gauge high-strength steel shaft with a 5 x 5-inch square profile. Its textured architectural bronze powder-coated finish is baked for enhanced adhesion, hardness and durability, making it suitable for commercial outdoor lighting environments.
Mounting & Installation Features
The pole accommodates compatible side-drilled arm-mounted area lighting fixtures or tenon-mounted flood and post-top luminaires with suitable mounting arrangements. Included anchor bolts secure the pole to a properly engineered concrete foundation. A handhole provides electrical wiring access, while the two-piece steel base cover conceals and protects the installed base.
Why Choose This Square Steel Light Pole?
- 30FT mounting height for large commercial outdoor lighting projects.
- Heavy-duty 5 x 5-inch square steel shaft with 10-gauge wall thickness.
- Durable textured architectural bronze powder-coated finish.
- Published EPA ratings support lighting fixture and wind-load planning.
- Anchor bolts and two-piece steel base cover included.
- Handhole and cover provide accessible electrical wiring connections.
Ideal Applications
The Eco Bright Light 30FT Square Steel Light Pole is suitable for commercial and institutional outdoor lighting projects requiring elevated fixture mounting. Typical applications include retail centers, industrial parks, schools, universities, transit stations, airports, office buildings and medical facilities.
30FT Steel Light Pole | 5x5 Square Light Pole | Parking Lot Lighting | Commercial Area Lighting | LED Area Light Pole | Bronze Steel Light Pole | Industrial Outdoor Lighting | Commercial Pole Lighting
Built for Commercial Outdoor Lighting Projects
30FT Height • 5" x 5" Square Steel • 10 Gauge • Bronze Powder Coat • 286 lbs • Anchor Bolts Included • Commercial Area Lighting
