3W LED Emergency Ceiling Light for Commercial Hallways
3W LED Emergency Ceiling Light for Commercial Hallways is backordered and will ship as soon as it is back in stock.
3W LED Emergency Ceiling Light for Commercial Hallways is backordered and will ship as soon as it is back in stock.
Description
Description
3W LED Emergency Ceiling Light for Commercial Hallways
The Eco Bright Light 3W LED Emergency Ceiling Light provides bright, low-profile emergency illumination for commercial hallways, offices, schools, healthcare facilities and other indoor egress applications. When normal AC power fails, the internal battery automatically activates the emergency LED heads and delivers more than 350 lumens for at least 90 minutes.
350+ Emergency Lumens
High-brightness adjustable LED optics provide more than 350 lumens of emergency illumination while operating at only 3W.
90-Minute Battery Backup
The internal rechargeable battery automatically powers the emergency LED heads when normal utility power is interrupted.
Automatic Self-Diagnostics
Monthly and annual automatic tests monitor LED load performance, battery voltage and emergency operating time.
Flexible Ceiling Installation
Spring mounting supports sheetrock ceilings, while bracket or bar-hanger mounting is available for compatible drywall, drop-ceiling and T-Bar installations.
Technical Specifications
| Brand | Eco Bright Light |
| Product Type | LED Emergency Ceiling Light |
| Emergency Power | 3W |
| Emergency Light Output | More Than 350 Lumens |
| Color Temperature | 3000K / 4000K / 5000K Selectable |
| Input Voltage | 100-347V AC |
| Input Current at 120V | Approximately 0.03A |
| Input Current at 277V | Approximately 0.01A |
| LED Configuration | Three Integrated Adjustable Emergency LED Heads |
| Emergency Runtime | Minimum 90 Minutes |
| Recharge Time | Maximum 24 Hours |
| Battery Type | Integrated Maintenance-Free Rechargeable Lithium-Ion Battery |
| Emergency Activation | Automatic Solid-State Transfer During AC Power Failure |
| Monthly Self-Test | Automatic 30-Second Discharge Test |
| Annual Self-Test | Automatic 90-Minute Full-Discharge Test |
| Quick Manual Test | Press the Test Button Once for a 5-Second Functional Test |
| Manual Monthly Test | Hold the Test Button for 3 Seconds |
| Manual Annual Test | Hold the Test Button for 6 Seconds |
| Charging Indicator | Solid Red |
| Fully Charged Indicator | Solid Green |
| Self-Test Indicator | Flashing Green |
| Fault Indicator | Flashing Red |
| Emergency Mode Indicator | Indicator Off |
| Visible Trim Dimensions | Approximately 9.19 × 5.25 in |
| Fixture Depth | Approximately 2.56 in |
| Rear Housing Dimensions | Approximately 13.31 × 11.50 × 1.34 in |
| Housing Material | Injection-Molded Engineering-Grade Thermoplastic |
| Flame Rating | 5VA Flame-Retardant Construction |
| Housing Finish | White |
| Mounting Methods | Spring-Mounted or Bracket / Bar-Hanger Ceiling Installation |
| Ceiling Compatibility | Sheetrock, Drywall, Drop Ceilings and T-Bar Suspended Ceilings |
| Operating Temperature | 41°F to 122°F / 5°C to 50°C |
| Location Rating | Damp Locations |
| Compliance | UL Listed; Compliant with UL 924, NFPA 101 Life Safety Code, NEC, OSHA and Applicable Local and State Codes; CEC Title 20 Certified |
| Warranty | 5-Year Limited Warranty |
Automatic Emergency Operation
- Automatically activates when normal AC power fails.
- Delivers more than 350 lumens in emergency mode.
- Provides at least 90 minutes of emergency battery operation.
- Wide 100-347V AC input supports commercial electrical systems.
- Adjustable LED heads improve directional emergency light coverage.
- Low-profile recessed installation minimizes ceiling obstruction.
- Maintenance-free rechargeable battery simplifies ongoing operation.
- Five-year limited warranty supports commercial lighting projects.
Self-Diagnostic Testing
The integrated control and monitoring circuit automatically performs a 30-second emergency discharge test every month and a complete 90-minute discharge test every year. During each test, the emergency system simulates an AC power outage and monitors LED load performance, battery voltage and emergency runtime. A flashing red indicator identifies a battery or LED-load fault requiring inspection.
Spring or Bracket Ceiling Installation
Spring-fit mounting is designed for sheetrock ceiling installations. Bracket or bar-hanger mounting is also available for compatible drywall, drop-ceiling and T-Bar suspended ceiling systems. The recessed housing installs above the ceiling plane while the compact trim plate remains visible below the ceiling.
The fully automatic solid-state dual-rate charger automatically resumes charging when normal AC power is restored and can fully replenish a depleted battery within 24 hours.

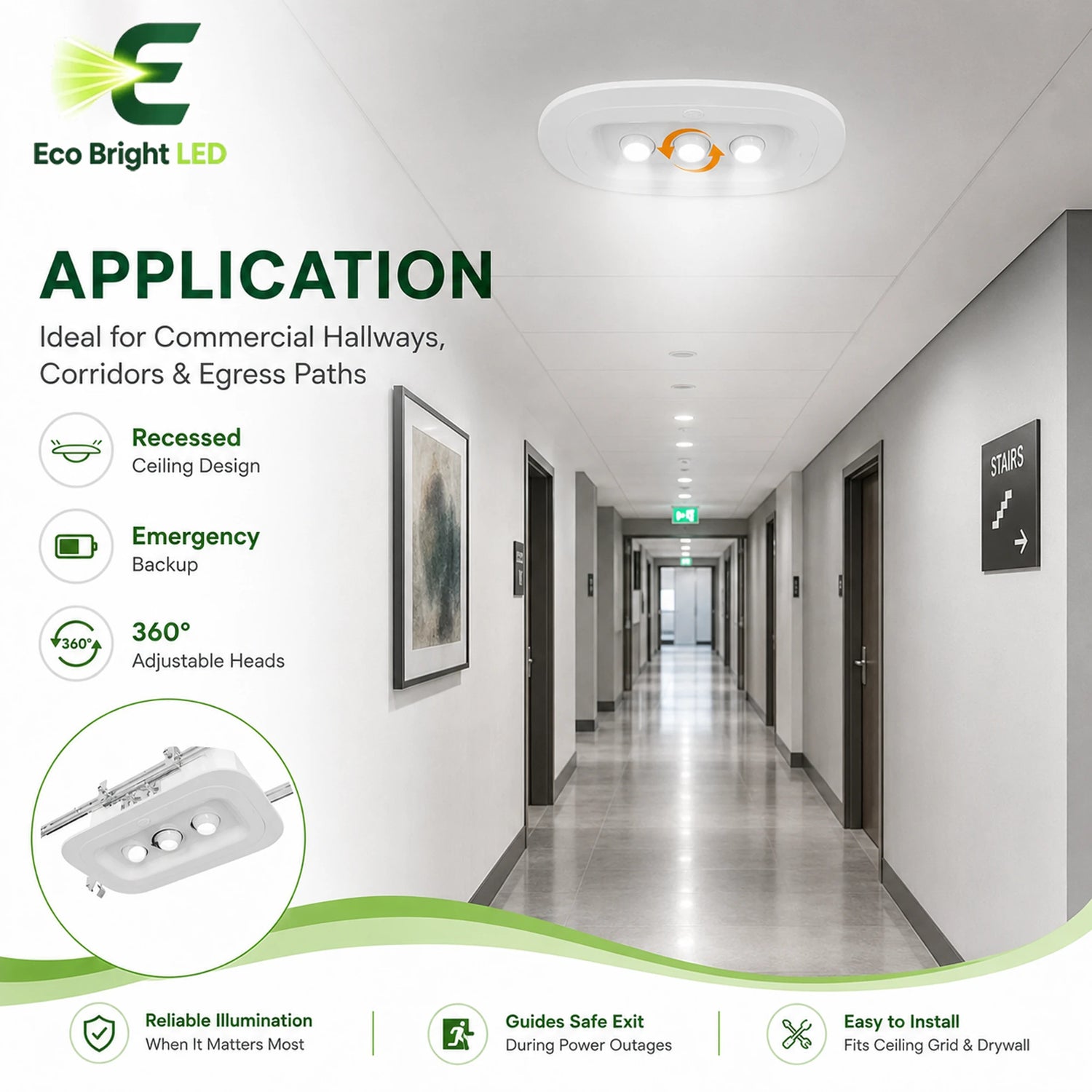

Commercial Emergency Lighting Applications
Designed for indoor commercial egress applications within the fixture's
rated operating conditions, including hallways, corridors, offices,
retail spaces, schools, healthcare facilities, hotels, apartment buildings
and similar commercial interiors.
LED Emergency Ceiling Light | Recessed Emergency Light |
3W Emergency Light | 90 Minute Emergency Light |
Self Testing Emergency Light | 100-347V Emergency Light |
Commercial Emergency Lighting | Hallway Emergency Light |
Ceiling Mounted Emergency Light | UL 924 Compliant Emergency Light
Upgrade Commercial Egress Lighting
Choose Eco Bright Light for 350+ emergency lumens, automatic self-testing, 90-minute battery backup and flexible recessed ceiling installation.
Package Information
| Package Size | 14.96 × 13.58 × 16.54 in |
| Pack Quantity | 10 Fixtures |
| Package Weight | 28.22 lbs |
