4 Inch Commercial LED Downlight 6W-12W for Office Lighting
The Eco Bright Light 4 Inch Commercial LED Downlight combines selectable wattage, five selectable color temperatures and universal-voltage operation in one professional recessed fixture. Its low-glare baffle trim, high color rendering and smooth 0-10V dimming make it ideal for offices, conference rooms, retail stores, hotels, restaurants, schools and commercial corridors. Note: a hardwired junction box is required for installation and is not included.
Selectable Wattage
Choose 6W, 9W or 12W during installation to provide 600, 900 or 1,200 lumens from one fixture.
5CCT Selectable
Select 2700K, 3000K, 3500K, 4000K or 5000K to match hospitality, office and retail interiors.
Low-Glare Baffle Trim
The recessed baffle design helps reduce direct glare while creating a clean architectural ceiling appearance.
0-10V Dimming
Smooth commercial dimming down to approximately 10% supports daylight control and adjustable room illumination.
Technical Specifications
| Brand | Eco Bright Light |
| Product Type | Wattage and CCT Selectable Commercial LED Downlight |
| Nominal Fixture Size | 4 Inch |
| Selectable Wattage | 6W / 9W / 12W |
| Lumen Output | 6W: 600 lm / 9W: 900 lm / 12W: 1,200 lm |
| Luminous Efficacy | Up to 100 lm/W |
| Selectable CCT | 2700K / 3000K / 3500K / 4000K / 5000K |
| Input Voltage | 120-277V AC |
| CRI | >90 |
| Dimming | 0-10V Dimming to Approximately 10% |
| Nominal Beam Angle | 100° |
| Average Tested Beam Angle | Approximately 120° |
| Trim Diameter | Approximately 5.12 in |
| Fixture Body Depth | Approximately 3.31 in |
| Nominal Ceiling Opening | 4 Inch; Verify the Supplied Template Before Cutting |
| Required Clearance Depth | Approximately 5.5 in |
| Housing Material | Aluminum Housing |
| Trim Design | Integrated Low-Glare Baffle Trim |
| Lens | High-Transmission Polycarbonate Lens |
| LED Driver | UL-Certified LED Driver |
| Wiring | Pre-Wired Power and 0-10V Dimming Leads with Poke-In Connectors |
| Junction Box | Required and Sold Separately |
| Mounting | Recessed Flush Installation with Spring Clips and Safety Chain |
| Operating Temperature | -20°C to 45°C |
| Optional Accessory | Compatible Emergency Battery Backup Available Separately |
| Replacement Range | Approximately 24W-60W Metal Halide or HPS |
| Certifications | ENERGY STAR, ETL and cETL |
| Warranty | 5-Year Limited Warranty |
One Fixture for Multiple Commercial Requirements
- Three wattage settings reduce the need to stock separate fixtures.
- Five color temperatures adapt to office, retail and hospitality spaces.
- Up to 1,200 lumens supports general and task-oriented illumination.
- CRI above 90 provides natural-looking merchandise and interior colors.
- Low-glare baffle trim improves visual comfort in occupied spaces.
- Universal 120-277V input supports commercial electrical systems.
- 0-10V dimming works with compatible commercial lighting controls.
- Spring clips and safety chain provide secure recessed installation.
Selectable Wattage and Color Temperature
Set the fixture to 6W for lower-output ambient lighting, 9W for balanced general illumination or 12W for maximum brightness. Choose 2700K or 3000K for hospitality spaces, 3500K for balanced office lighting, 4000K for commercial work areas or 5000K for bright retail and task lighting.
Commercial Recessed Installation
Prepare a compatible hardwired junction box, connect the line-voltage and 0-10V dimming conductors, and select the required wattage and color temperature on the rear switches. Attach the safety chain, compress the spring clips and insert the fixture until the trim sits flush against the ceiling.
The source documentation contains inconsistent metric values for the nominal 4-inch ceiling opening. Verify the supplied cutting template, fixture dimensions and required ceiling clearance before installation. Installation should be completed by a qualified electrician.

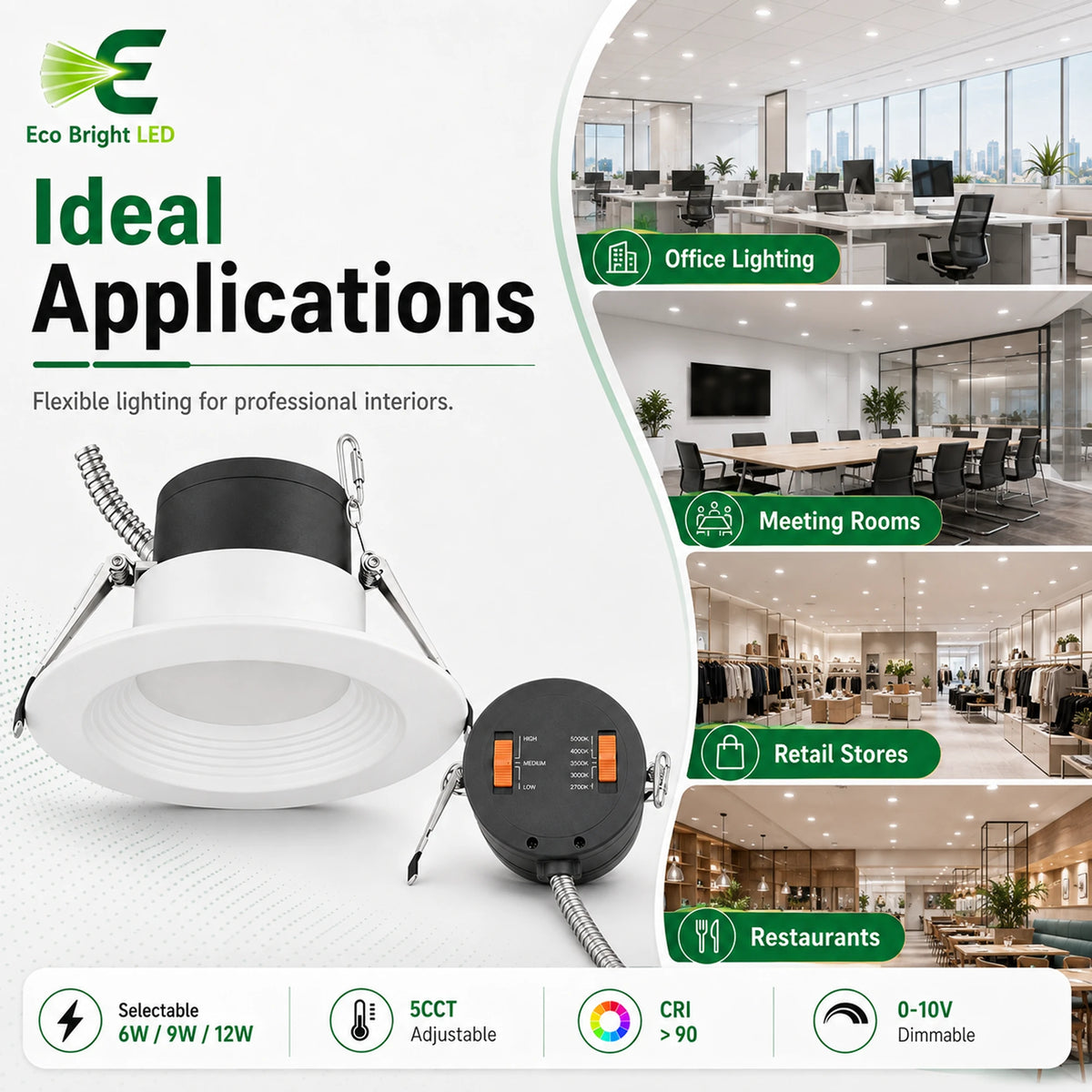

Office, Retail and Hospitality Applications
Ideal for offices, conference rooms, retail stores, showrooms, hotels, restaurants, schools, universities, healthcare facilities, apartment buildings, hallways, corridors, lobbies and other commercial indoor spaces.
Commercial LED Downlight | 4 Inch LED Downlight | Wattage Selectable Downlight | 5CCT Downlight | 0-10V Dimmable Downlight | Office Lighting | Retail Lighting | Hotel Lighting | Restaurant Lighting | Recessed Commercial Lighting
Simplify Commercial Lighting Specifications
Choose Eco Bright Light for three selectable wattages, five selectable color temperatures, 120-277V operation, high CRI illumination and smooth 0-10V dimming.
Package Information
| Package Size | 6 × 6 × 4 in |
| Pack Quantity | 1 Fixture |
| Package Weight | 0.80 lbs |
