4 Inch Square LED Panel Downlight 9W for Kitchen Lighting
4 Inch Square LED Panel Downlight 9W for Kitchen Lighting is backordered and will ship as soon as it is back in stock.
4 Inch Square LED Panel Downlight 9W for Kitchen Lighting is backordered and will ship as soon as it is back in stock.
Description
Description

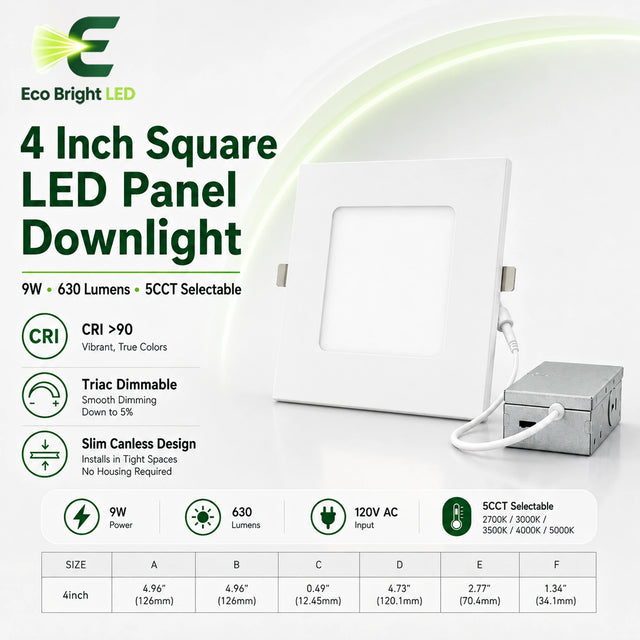

4 Inch Square LED Panel Downlight 9W for Kitchen Lighting
The Eco Bright Light 4 Inch Square LED Panel Downlight delivers smooth, evenly distributed illumination from a slim architectural fixture. Its five selectable color temperatures, high color rendering, Triac dimming and included driver junction box make it an efficient canless lighting solution for kitchens, living rooms, hallways, offices, meeting rooms, retail stores and restaurants.
5CCT Selectable
Choose 2700K, 3000K, 3500K, 4000K or 5000K before installation to match residential and commercial interiors.
Slim Canless Design
The edge-lit panel installs directly into the ceiling without requiring a traditional recessed can housing.
High CRI Illumination
CRI above 90 helps food, furniture, décor and retail merchandise appear natural and accurately rendered.
Smooth Triac Dimming
Adjust brightness from approximately 10% to 100% with a compatible 120V Triac wall dimmer.
Technical Specifications
| Brand | Eco Bright Light |
| Product Type | Square Slim Canless LED Panel Downlight |
| Nominal Fixture Size | 4 Inch |
| Fixture Shape | Square |
| Input Power | 9W |
| Lumen Output | 720 Lumens |
| Luminous Efficacy | 80 lm/W |
| Selectable CCT | 2700K / 3000K / 3500K / 4000K / 5000K |
| Input Voltage | 120V AC |
| Input Current | Approximately 0.075A |
| Power Factor | ≥0.9 |
| CRI | >90 |
| Dimming | Triac Dimming from Approximately 100% to 10% |
| Beam Angle | Approximately 120° |
| Fixture Dimensions | Approximately 4.96 × 4.96 in |
| Panel Thickness | Approximately 0.49 in |
| Recommended Ceiling Cutout | Approximately 4.33 in; Verify the Supplied Template Before Cutting |
| Driver Box Dimensions | Approximately 4.73 × 2.77 × 1.34 in |
| Housing Material | Aluminum Alloy Housing |
| Driver Construction | Steel-Encased Separate LED Driver and Junction Box |
| Optical Cover | High-Transmission Polycarbonate Diffuser |
| LED Technology | Integrated High-Brightness 2835 LEDs |
| Lighting Design | Edge-Lit Technology with Uniform, Low-Glare Illumination |
| Mounting | Canless Recessed Installation with Spring Clips |
| Included Accessories | Driver Junction Box, Wire Connectors and Cutout Template |
| Operating Temperature | -20°C to 45°C |
| Replacement Range | Approximately 18W-27W Metal Halide or HPS |
| Certifications | ENERGY STAR, ETL and cETL |
| Warranty | 5-Year Limited Warranty |
Modern Square Canless Lighting
- Square trim creates a clean contemporary architectural appearance.
- Five color temperatures adapt to residential and commercial interiors.
- Edge-lit technology delivers uniform light without visible dark spots.
- High CRI improves the appearance of food, décor and merchandise.
- Wide 120° distribution supports smooth general room illumination.
- Triac dimming provides adjustable brightness and room ambiance.
- Canless construction eliminates a traditional recessed housing.
- Separate junction box simplifies electrical wiring above the ceiling.
Five Selectable Color Temperatures
Select 2700K for warm ambient lighting, 3000K for kitchens and living spaces, 3500K for balanced neutral illumination, 4000K for offices and work areas or 5000K for bright daylight-style visibility. Set the required color temperature before final installation.
Fast Canless Installation
Cut the ceiling opening according to the supplied template, connect the included junction box to the branch circuit and plug the panel into the driver cable. Insert the junction box above the ceiling, compress the spring clips and push the fixture upward until the square trim sits flush against the ceiling.
Verify the supplied cutout template, ceiling thickness and available installation clearance before cutting. Electrical installation should be completed by a qualified electrician.
Kitchen, Office and Retail Applications
Ideal for kitchens, living rooms, bedrooms, hallways, home offices, commercial offices, meeting rooms, retail stores, restaurants, reception areas and other residential or commercial interiors.
Square LED Downlight | 4 Inch LED Downlight | Slim Panel Downlight | Canless Recessed Lighting | Kitchen Lighting | Office Downlight | Retail Lighting | 5CCT Downlight | Dimmable LED Downlight | Square Recessed Light
Upgrade to Modern Square LED Lighting
Choose Eco Bright Light for 9W efficiency, 720 lumens, five selectable color temperatures, high CRI illumination and fast canless installation.
Package Information
| Package Size | 6 × 6 × 3 in |
| Pack Quantity | 1 Fixture |
| Package Weight | 0.96 lbs |
