Jelly Jar Explosion Proof LED Light C1D2 – 40W 4,200lm 100-277V
Jelly Jar Explosion Proof LED Light C1D2 – 40W 4,200lm 100-277V is backordered and will ship as soon as it is back in stock.
Jelly Jar Explosion Proof LED Light C1D2 – 40W 4,200lm 100-277V is backordered and will ship as soon as it is back in stock.
Description
Description
40W LED Explosion Proof Jelly Jar Light 5000K
Illuminate demanding industrial and hazardous environments with the Eco Bright Light 40W LED Explosion Proof Jelly Jar Light. Delivering 4,200 lumens at 105 lm/W, this G Series fixture combines high-efficiency LED technology with robust hazardous-location construction. Featuring 5000K daylight illumination, a 120° beam angle, 0-10V dimming, IP66 protection and a heavy-duty copper-free aluminum housing, this fixture provides dependable lighting for petrochemical facilities, wastewater treatment plants, oil and gas storage areas and marine environments. The spherical tempered-glass globe and protective wire guard provide added protection in demanding industrial applications.
4,200 Lumens
High-output 40W LED performance delivers bright 5000K daylight illumination for industrial workspaces, utility areas and hazardous locations.
105 LM/W Efficiency
Produces 4,200 lumens using 40 watts of input power, providing efficient illumination for demanding industrial lighting applications.
Class I Division II
Designed for Class I Division II, Groups A, B, C and D hazardous locations. The G Series also carries additional Class I Division I Groups C and D ratings.
IP66 / IK10 Protection
Rugged copper-free aluminum construction, tempered-glass globe and protective wire guard provide durable performance in harsh industrial environments.
40W LED Explosion Proof Jelly Jar Light Technical Specifications
| Brand | Eco Bright Light |
| Model Series | G Series |
| Specification Model | EX-40W GYZDA Series |
| Product Type | 40W LED Explosion Proof Jelly Jar Light |
| Fixture Configuration | Spherical Glass Globe with Wire Guard |
| Wattage | 40W |
| Lumen Output | 4,200 Lumens |
| Luminous Efficiency | 105 lm/W |
| Color Temperature | 5000K |
| Series CCT Range | 2700K-7000K |
| CRI | >70 |
| Input Voltage | AC 100-277V |
| Input Frequency | 50/60Hz |
| Power Factor | >0.95 |
| Beam Angle | 120° |
| Available Beam Angles | 40° / 60° / 90° / 120° |
| Dimming | 0-10V Dimming |
| Hazardous Location Rating | Class I Division II, Groups A, B, C and D |
| Additional Hazardous Location Ratings | Class I Division I, Groups C and D; Class II Division I, Groups E, F and G; Class II Division II, Groups F and G; Class III; Class I Zone 1, Group IIB; Class II Zone 21, Group IIIC |
| Ingress Protection | IP66 |
| Impact Resistance | IK10 |
| Housing Material | Copper-Free Aluminum |
| Diffuser Material | Tempered Glass |
| Protective Guard | Metal Wire Guard |
| Hardware Material | Stainless Steel |
| Ambient Temperature | -40°C to +65°C (-40°F to +149°F), T4 per series specification; additional -40°C to +40°C (-40°F to +104°F) range listed |
| Mounting Options | Ceiling, Pole, Pendant and Wall |
| Cable Entry | Top: 3/4" NPT Standard; M25 Optional |
| Optional Side Cable Entry | 1/2" NPT or M25 (Special Configuration) |
| Emergency Lighting | Optional Emergency Function; 3-Hour Emergency Duration |
| Lumen Maintenance | L70 >150,000 Operating Hours at 55°C |
| Compliance Standards | UL 844, UL 1598, CSA C22.2 #137, CSA C22.2 #250.0 |
| Additional Listings | ETL / ABS |
| Warranty | 5-Year Standard Warranty |
High-Efficiency 40W Explosion Proof LED Lighting
- Delivers 4,200 lumens of bright illumination for hazardous industrial environments.
- 105 lm/W efficiency combines energy savings with reliable LED performance.
- Class I Division II, Groups A, B, C and D classification supports designated hazardous locations.
- 5000K daylight output provides clear and bright industrial illumination.
- Wide 120° beam angle provides broad illumination for industrial work areas.
- 0-10V dimming supports compatible lighting control systems.
- IP66 dust and water protection supports demanding wet industrial environments.
- Spherical tempered-glass globe and wire guard protect the lighting assembly.
Class I Division II Hazardous Location Protection
The Eco Bright Light 40W LED Explosion Proof Jelly Jar Light is engineered for hazardous industrial environments requiring dependable illumination and certified location protection. The G Series includes Class I Division II, Groups A, B, C and D ratings, along with Class I Division I Groups C and D and additional Class II, Class III and Zone classifications.
Its durable copper-free aluminum construction, tempered-glass diffuser and IP66 protection support operation in locations where moisture, dirt, dust, corrosion and vibration may be present. Installation must follow the fixture's applicable certification markings and hazardous-location requirements.
120° Wide Beam with 0-10V Dimming
Delivering 4,200 lumens at 105 lm/W, this 40W G Series fixture combines efficient LED performance with bright 5000K daylight illumination. Its 120° beam angle provides broad lighting coverage for utility areas, industrial workspaces and designated hazardous locations.
Integrated 0-10V dimming capability allows the fixture to work with compatible lighting control systems. The G Series also offers alternative 40°, 60° and 90° beam configurations for different project requirements.

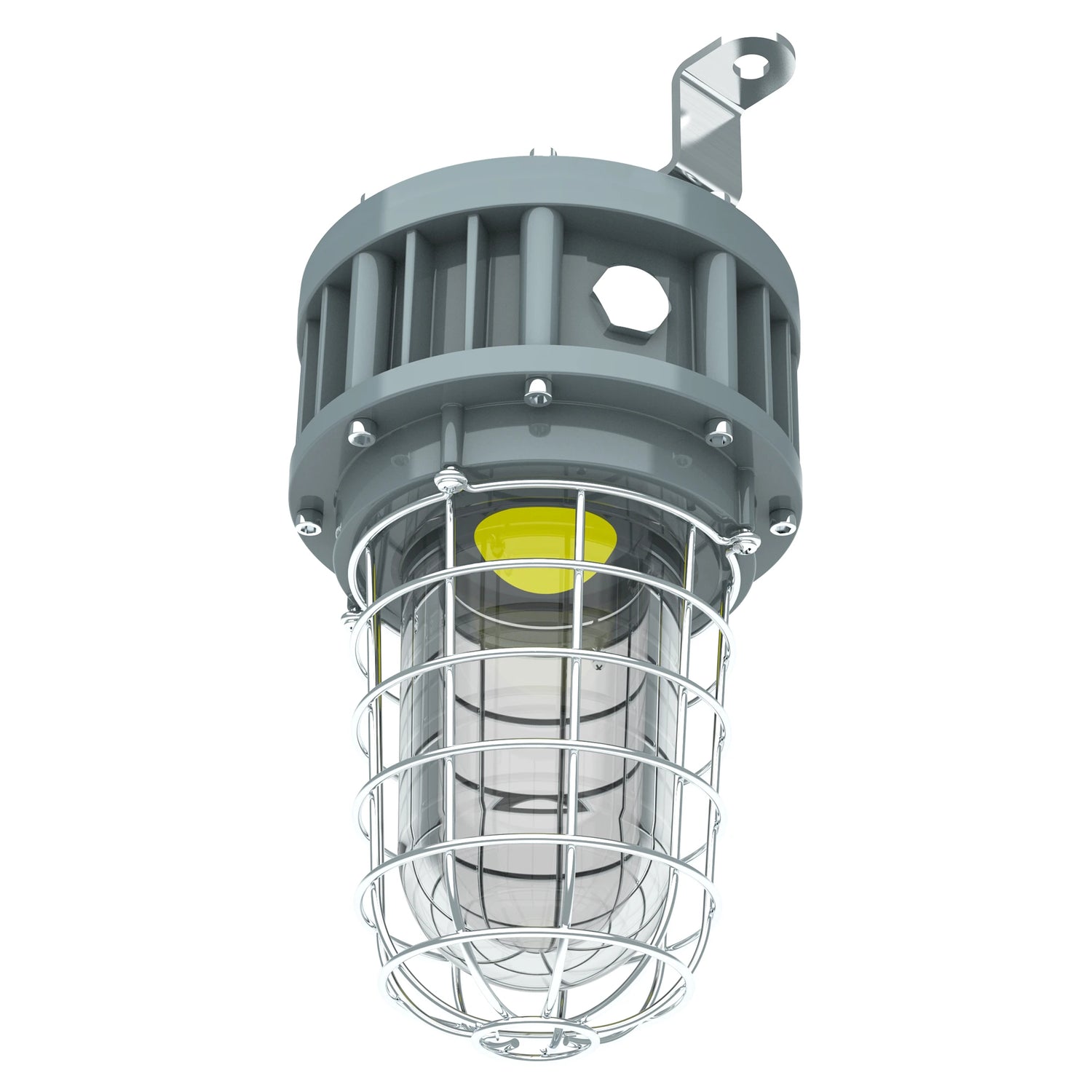

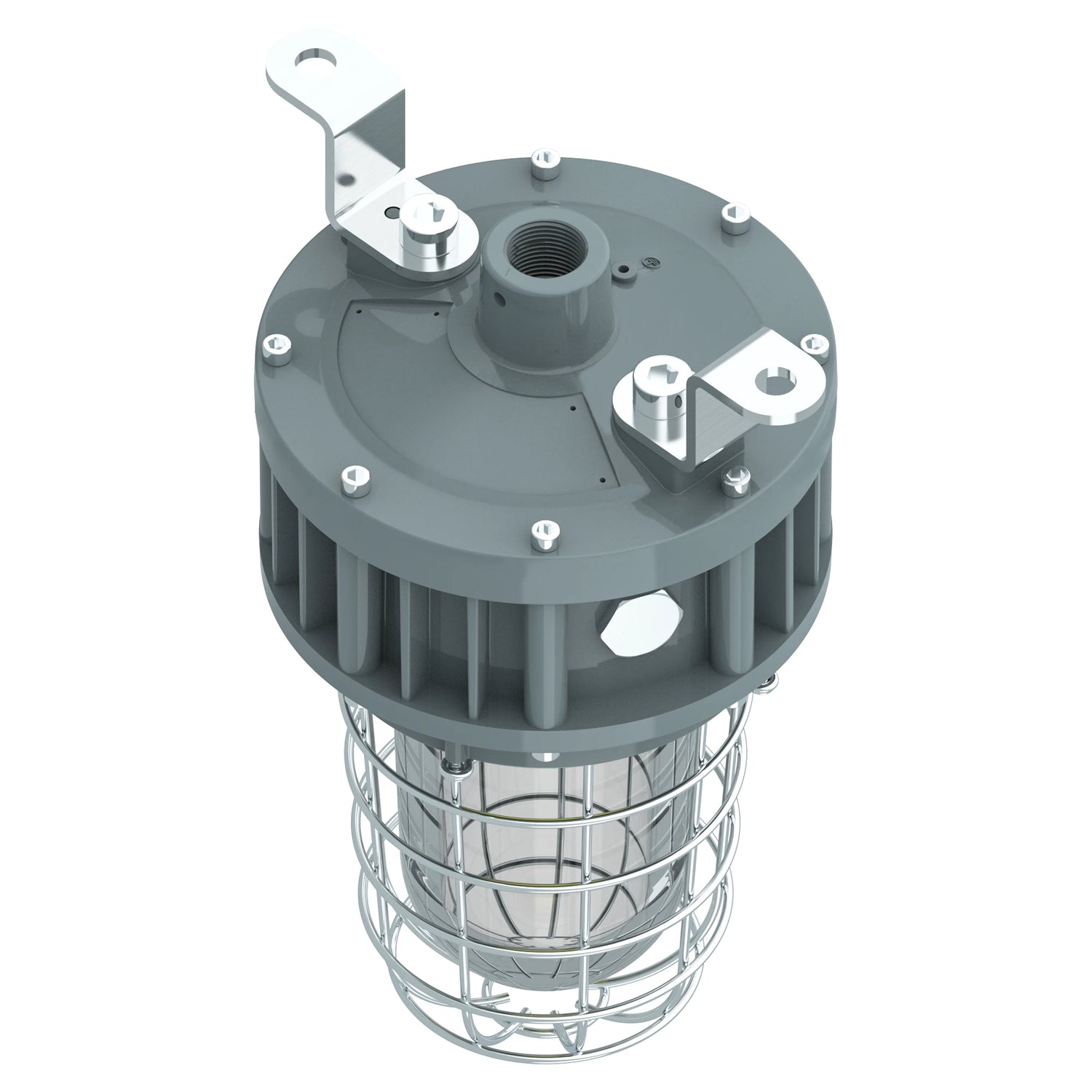

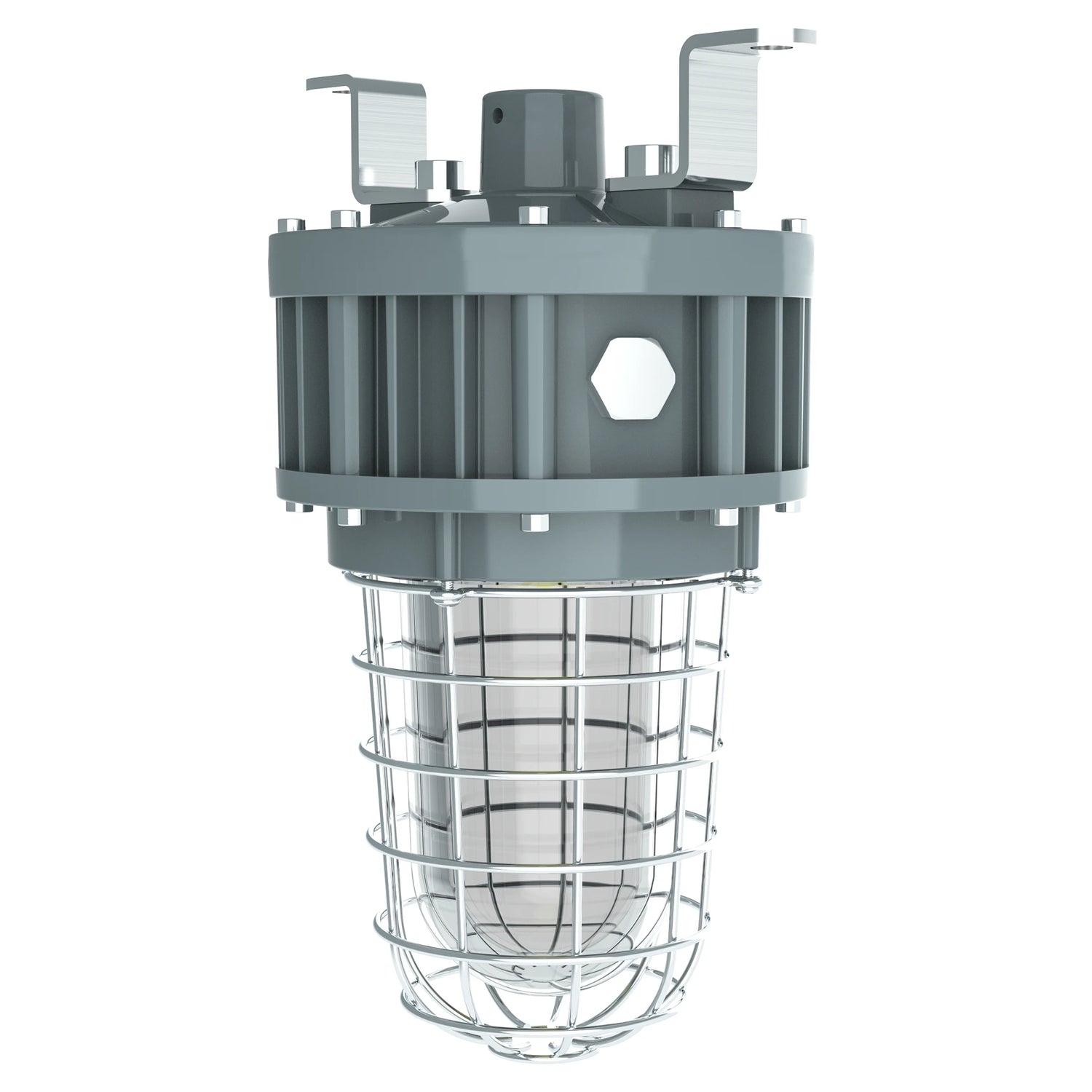

Rugged Spherical Glass and Wire Guard Construction
The spherical tempered-glass globe and protective metal wire guard provide a durable lighting enclosure suitable for demanding industrial applications.
The fixture features a copper-free aluminum housing with corrosion-resistant construction, stainless steel hardware, IP66 ingress protection and IK10 impact resistance. Its compact G Series design supports long-term reliability in industrial and marine environments.
Flexible Installation for Hazardous Locations
- Ceiling mounting supports industrial overhead lighting installations.
- Pole mounting is available with compatible stanchion accessories.
- Wall mounting supports utility areas and industrial processing facilities.
- Pendant mounting allows installation in suitable industrial structures.
- Standard top cable entry uses a 3/4" NPT connection.
- Optional M25 top entry and special side entry configurations are available.
- Spherical glass and wire guard configuration offers additional physical protection.
- Optional emergency functionality provides a 3-hour emergency duration.
Industrial Hazardous Location Lighting Applications

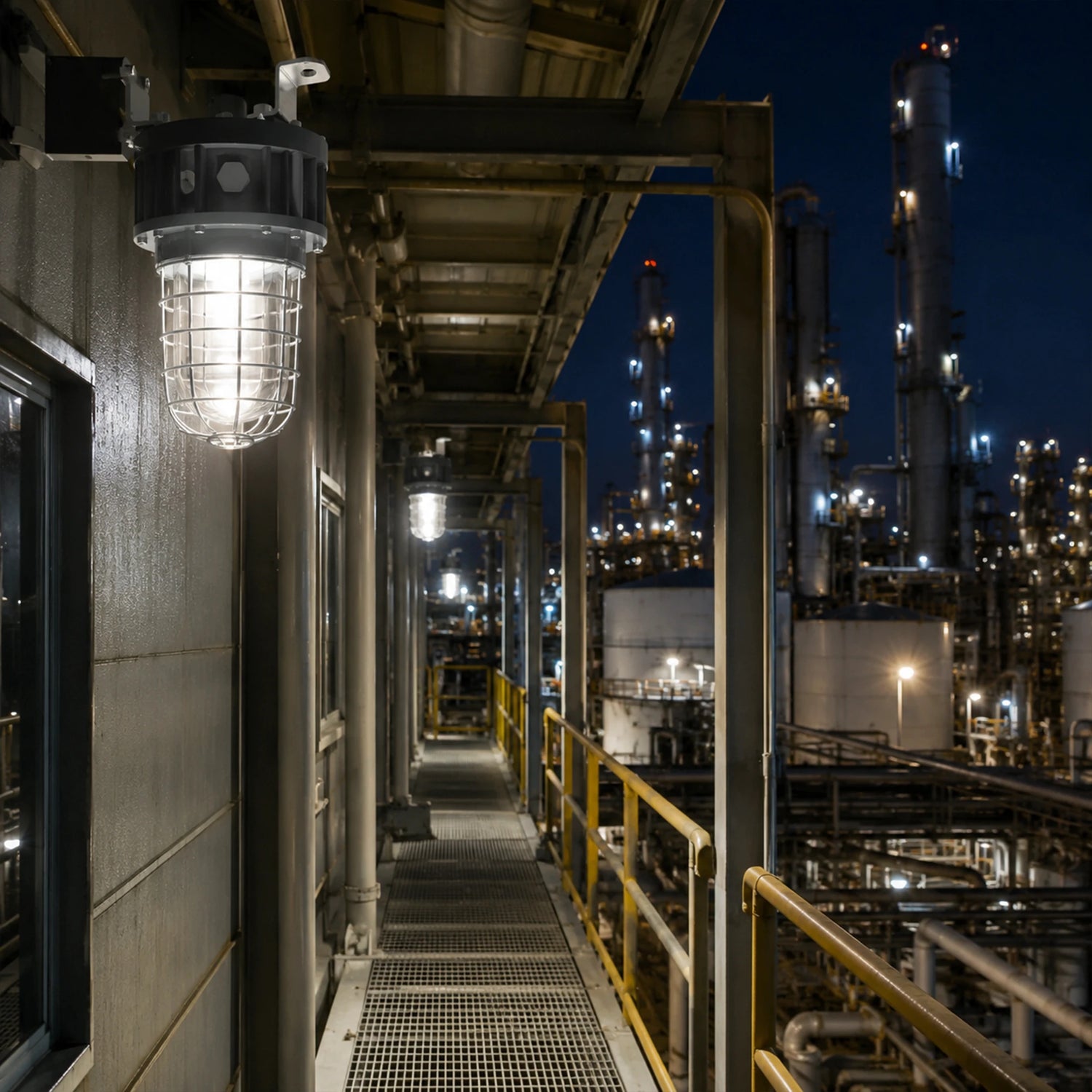

The Eco Bright Light 40W LED Explosion Proof Jelly Jar Light is designed for demanding industrial environments where durable and reliable lighting is essential. Suitable applications include petrochemical processing facilities, chemical plants, wastewater treatment facilities, power plants, offshore environments, heavy industrial storage facilities and loading docks.
40W Explosion Proof LED Light | Class I Division II Lighting | Hazardous Location Jelly Jar Light | Petrochemical Facility Lighting | Wastewater Treatment Lighting | Oil and Gas Facility Lighting | Offshore Platform Lighting | Chemical Processing Lighting | Industrial Utility Lighting | Power Plant Lighting | Loading Dock Lighting | Marine Industrial Lighting
Reliable Performance in Harsh Industrial Environments
The G Series is designed for industrial and marine applications where moisture, dirt, dust, corrosion and vibration may be present. Its rugged aluminum construction and protective glass enclosure support dependable long-term operation.
With IP66 protection, IK10 impact resistance, a specified L70 lumen maintenance exceeding 150,000 operating hours at 55°C and a 5-year standard warranty, this fixture is designed for demanding industrial lighting applications.
Upgrade Hazardous Industrial Areas with 40W LED Jelly Jar Lighting
4,200 Lumens • 105 lm/W • 5000K • Class I Division II • IP66 • IK10 • 120° Beam Angle • 0-10V Dimming • Spherical Glass with Wire Guard • Copper-Free Aluminum • 5-Year Warranty
Package Information
| Product | 40W LED Explosion Proof Jelly Jar Light |
| Product Configuration | G Series - Spherical Glass with Wire Guard |
| Provided Package Dimensions (L × W × H) | 15.5 × 11 × 11.5 in |
| Provided Package Weight | 14.1 lbs |
| Specification Net Weight | 11.82 lbs |
| Units per Carton | 1 pc |
