40W Selectable LED Light Engine 4-10 Inch Recessed Downlight
40W Selectable LED Light Engine 4-10 Inch Recessed Downlight is backordered and will ship as soon as it is back in stock.
Accessories
40W Selectable LED Light Engine 4-10 Inch Recessed Downlight is backordered and will ship as soon as it is back in stock.
Description
Description

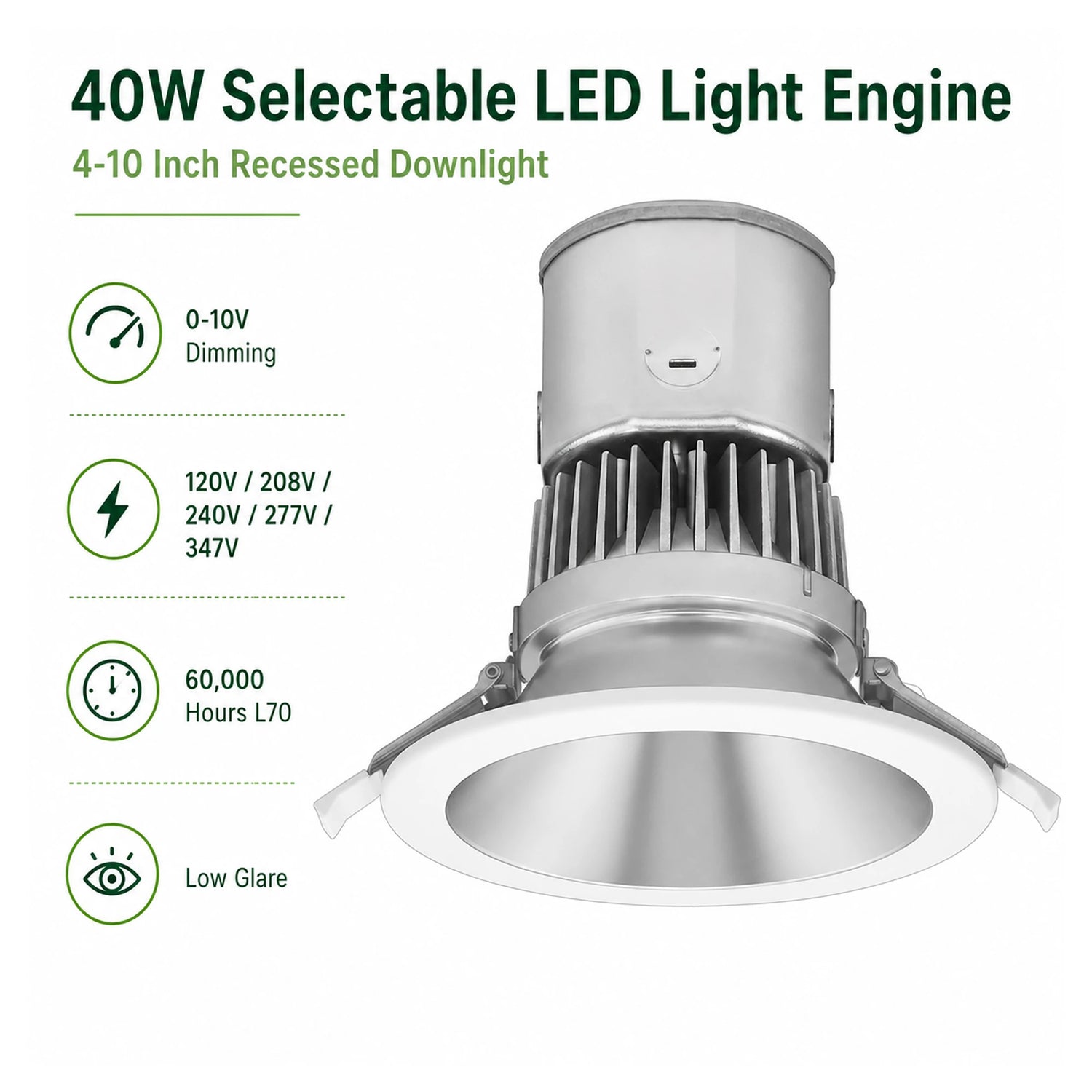

40W Selectable Architectural LED Light Engine

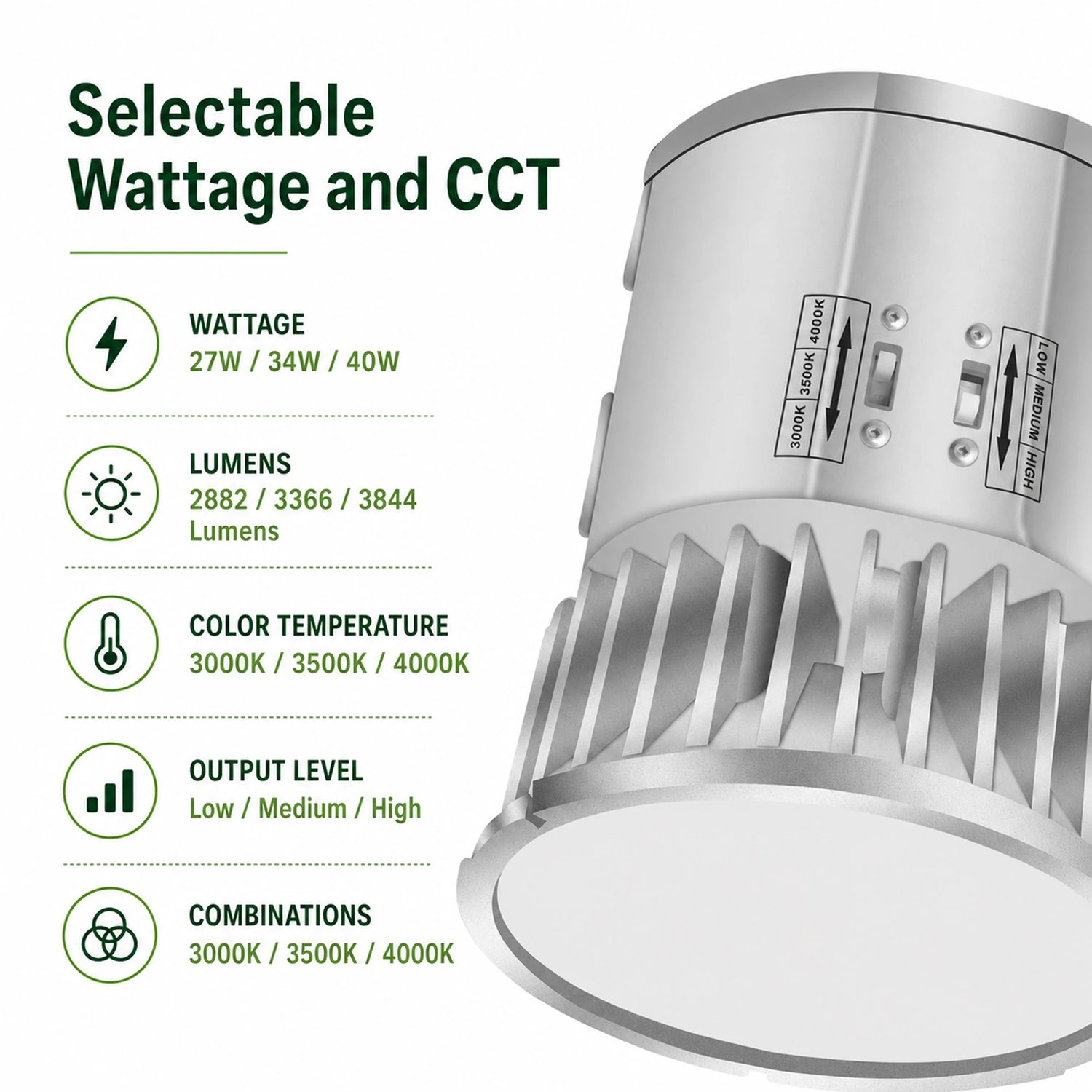

Wattage Selectable
Choose 27W, 34W or 40W with integrated dip switches to match brightness needs in commercial, retail or residential spaces.
Color Selectable CCT
Select 3000K, 3500K or 4000K for warm, neutral or cool white recessed lighting without changing the fixture.

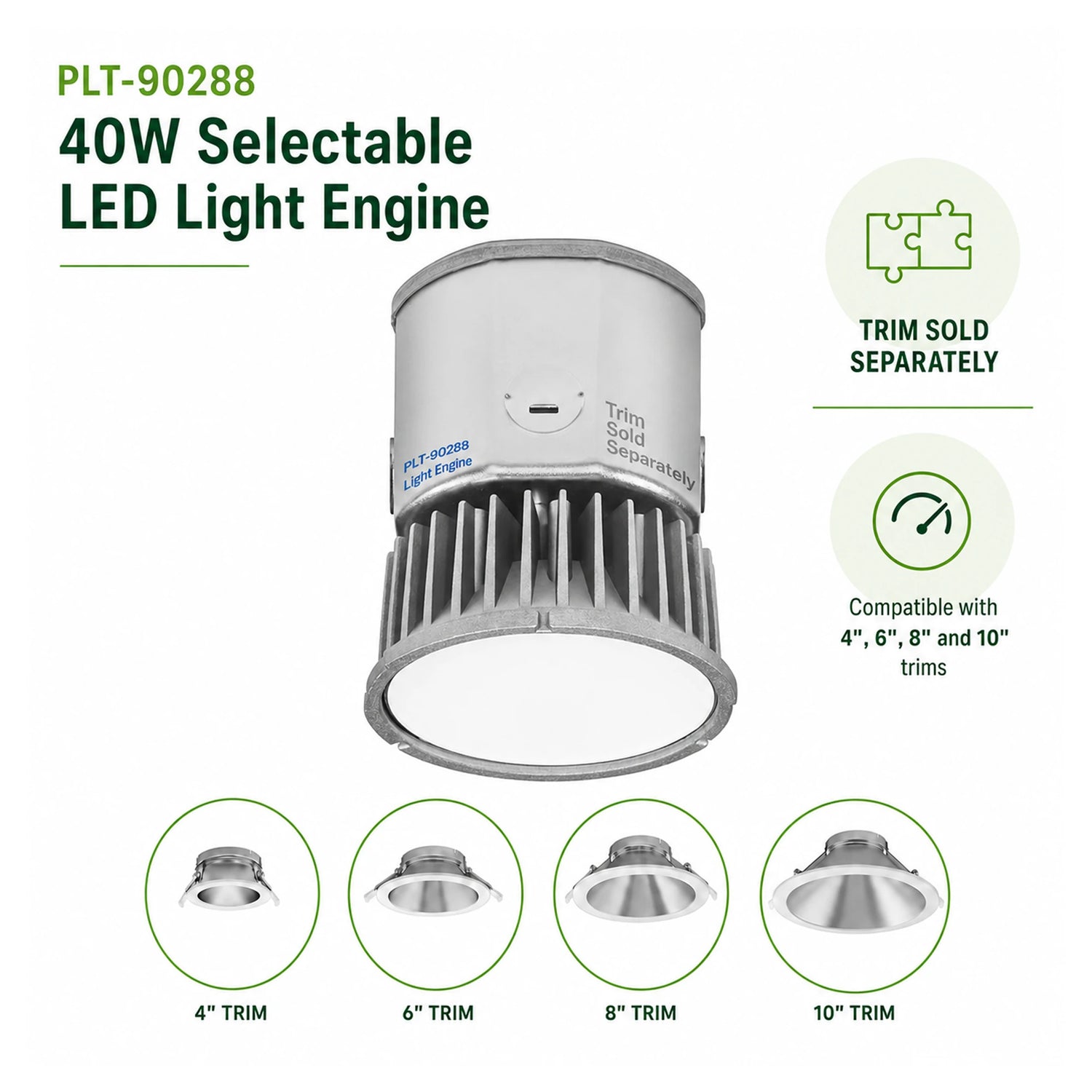

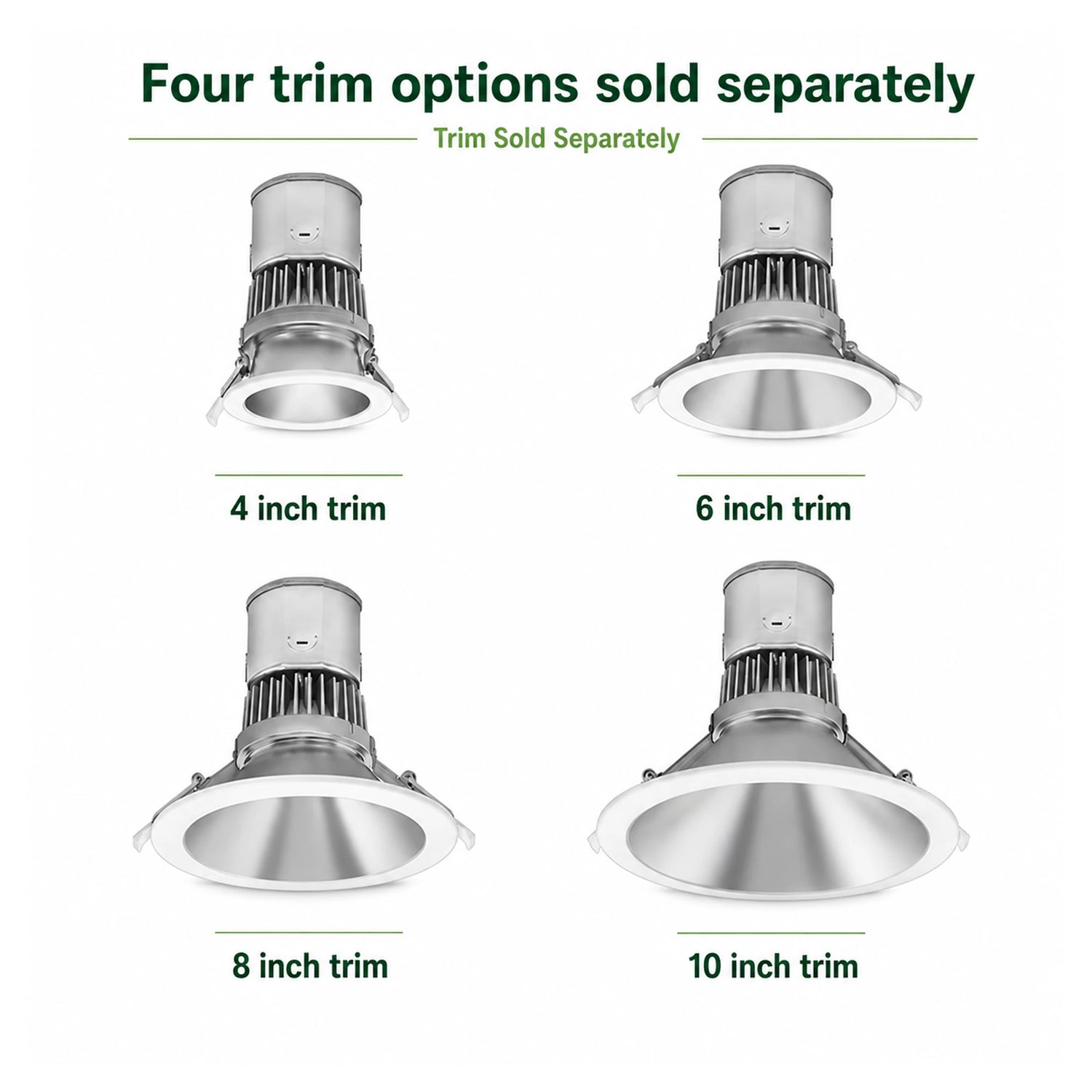

4-10 Inch Trim Flexibility

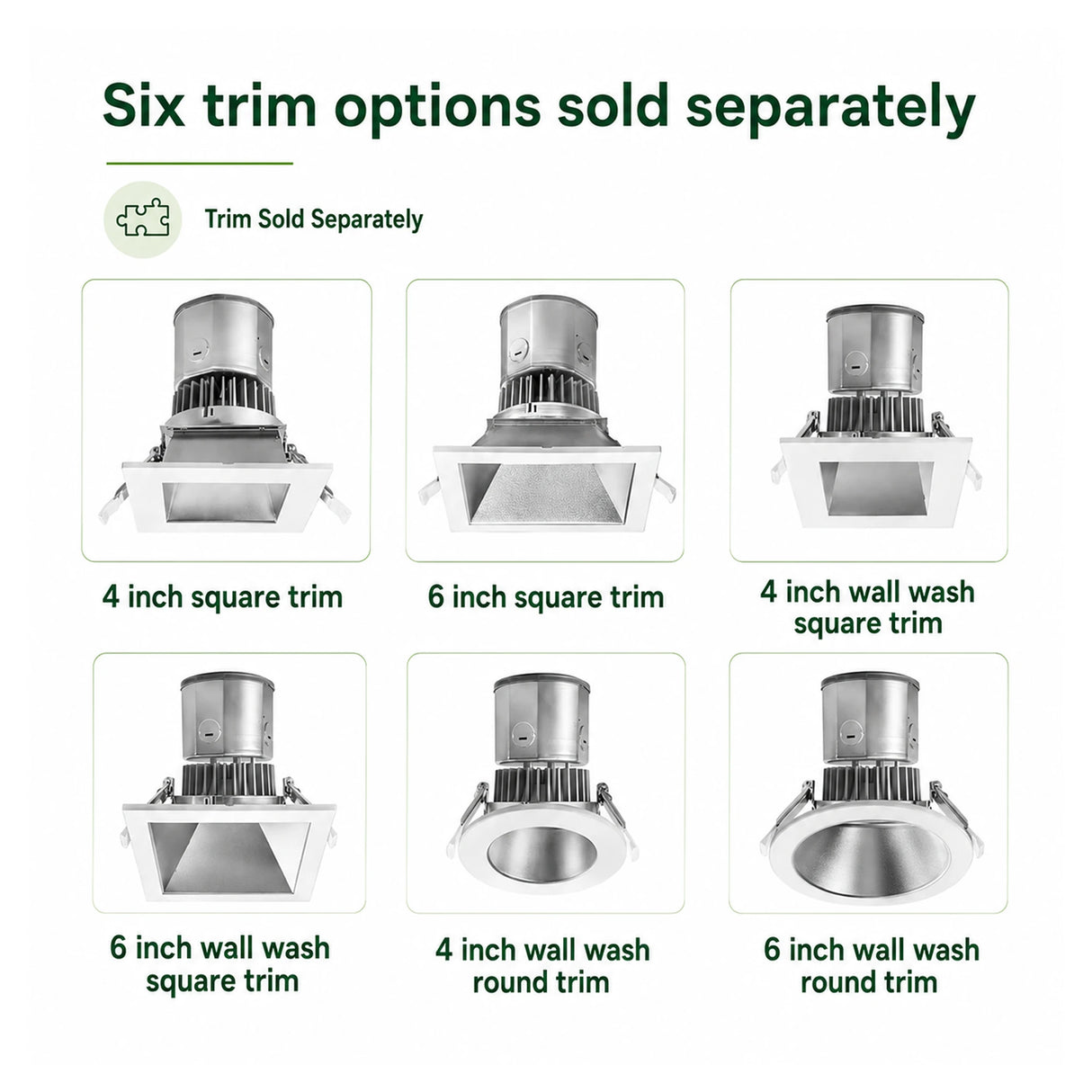

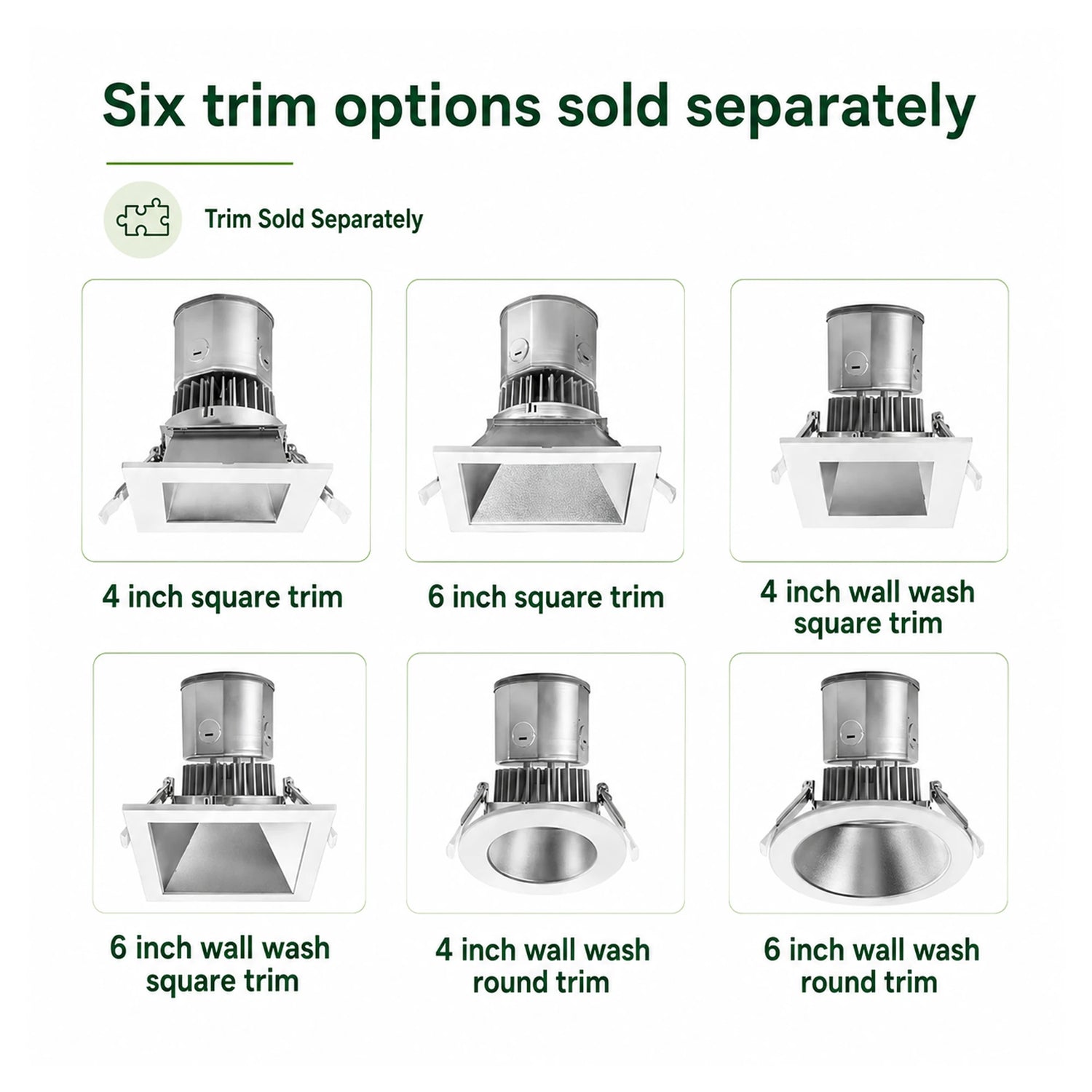

Works with compatible 4 inch, 6 inch, 8 inch and 10 inch trims for round, square and wall wash architectural layouts.

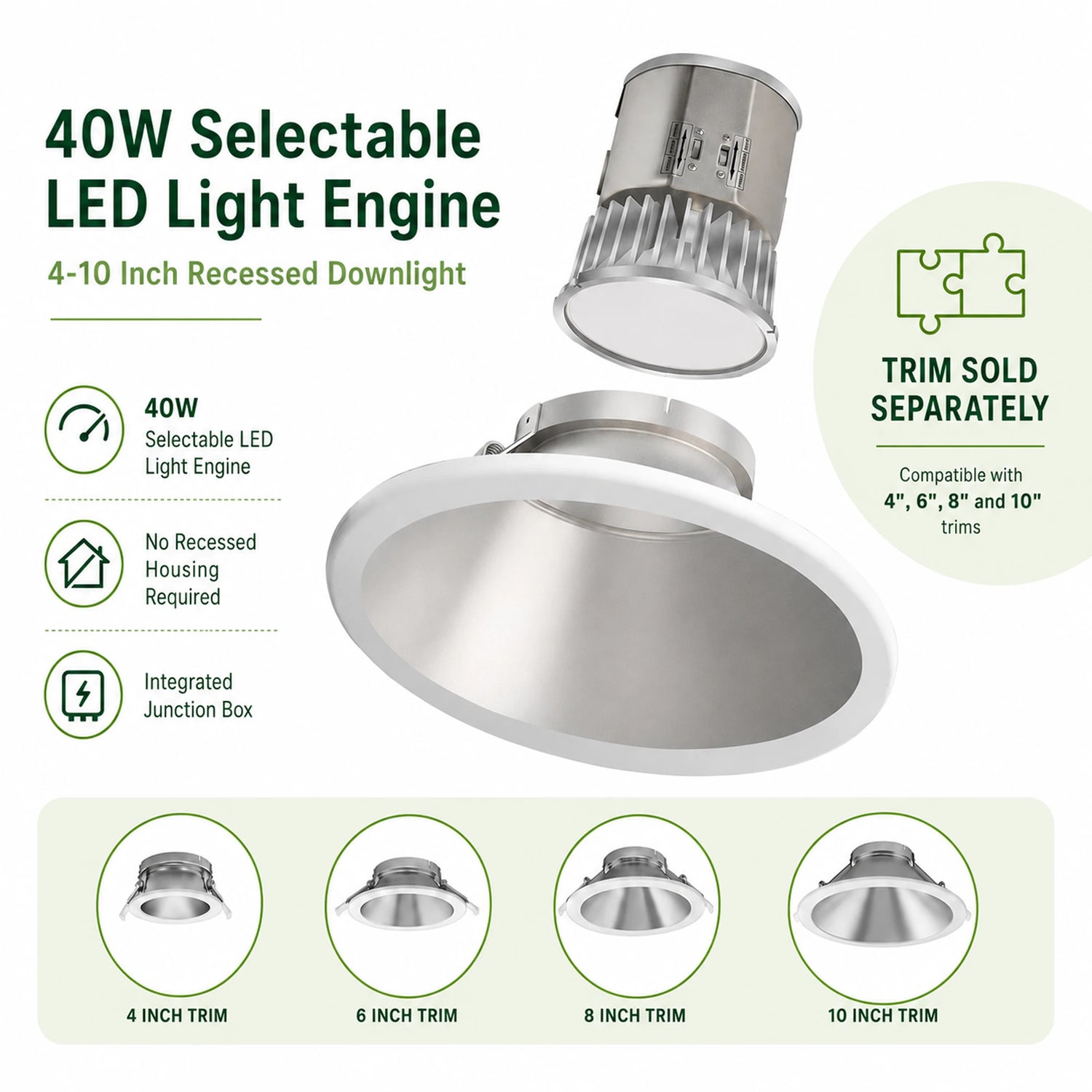

No Housing Required
Integrated J-box design supports new construction or remodel installation without traditional recessed housings.

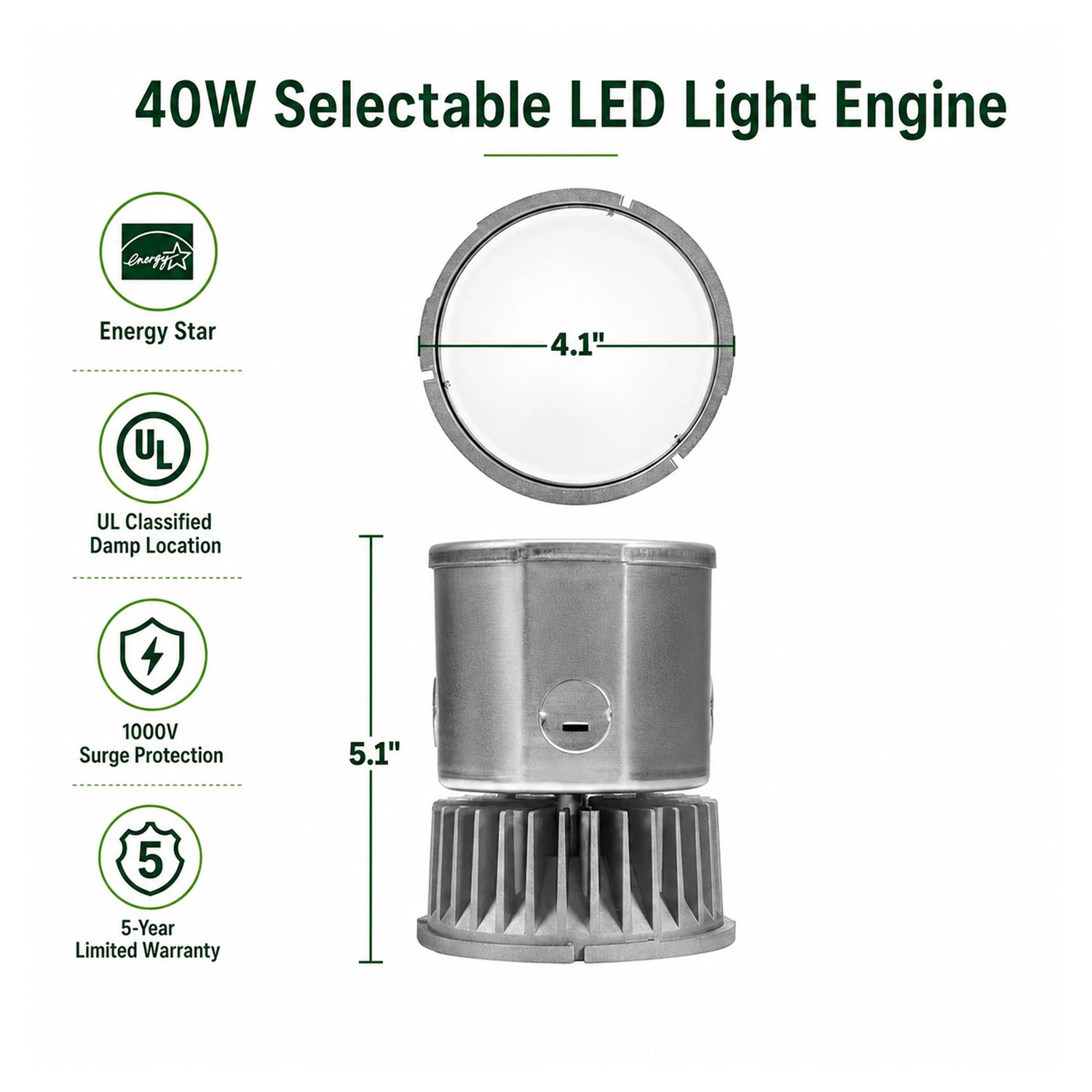

Technical Specifications
| Brand | PLT PremiumSpec |
| Part Number | PLT-90288 |
| Product Type | Architectural LED Light Engine |
| Wattage | 27W / 34W / 40W Selectable |
| Lumen Output | 2,882 / 3,366 / 3,844 Lumens |
| Color Temperature | 3000K / 3500K / 4000K Selectable |
| Voltage | 120V / 208V / 240V / 277V / 347V |
| Dimming | 0-10V Dimmable |
| LED Life | 60,000 Hours L70 |
| Installation | Integrated J-Box, No Housing Required |
| Trim Compatibility | 4", 6", 8" and 10" Compatible Trims Sold Separately |
| Ratings | UL Damp Location, Energy Star Certified |
| Surge Protection | 1000V |
| Warranty | 5-Year Limited Warranty |
Why This LED Light Engine Works for You
- Selectable wattage and CCT reduce SKU complexity for contractors and retrofit projects.
- Up to 3,844 lumens delivers bright recessed lighting for offices, stores, hotels and restaurants.
- Compatible trim system supports round, square and wall wash architectural downlight layouts.
- 0-10V dimming gives smooth light control for commercial interiors and hospitality spaces.
- Deeply regressed matte diffuser helps soften glare and create comfortable illumination.
- Integrated J-box and no-housing design simplify new construction and remodel installation.
Ideal Applications
This 40W selectable architectural LED light engine is designed for flexible recessed lighting projects that need adjustable output, selectable color temperature and professional downlight performance.
Commercial Lighting | Retail Stores | Offices | Hotels | Restaurants | Hospitality Lighting | Residential Recessed Lighting | Remodel Projects | New Construction | Architectural Ceiling Lighting
