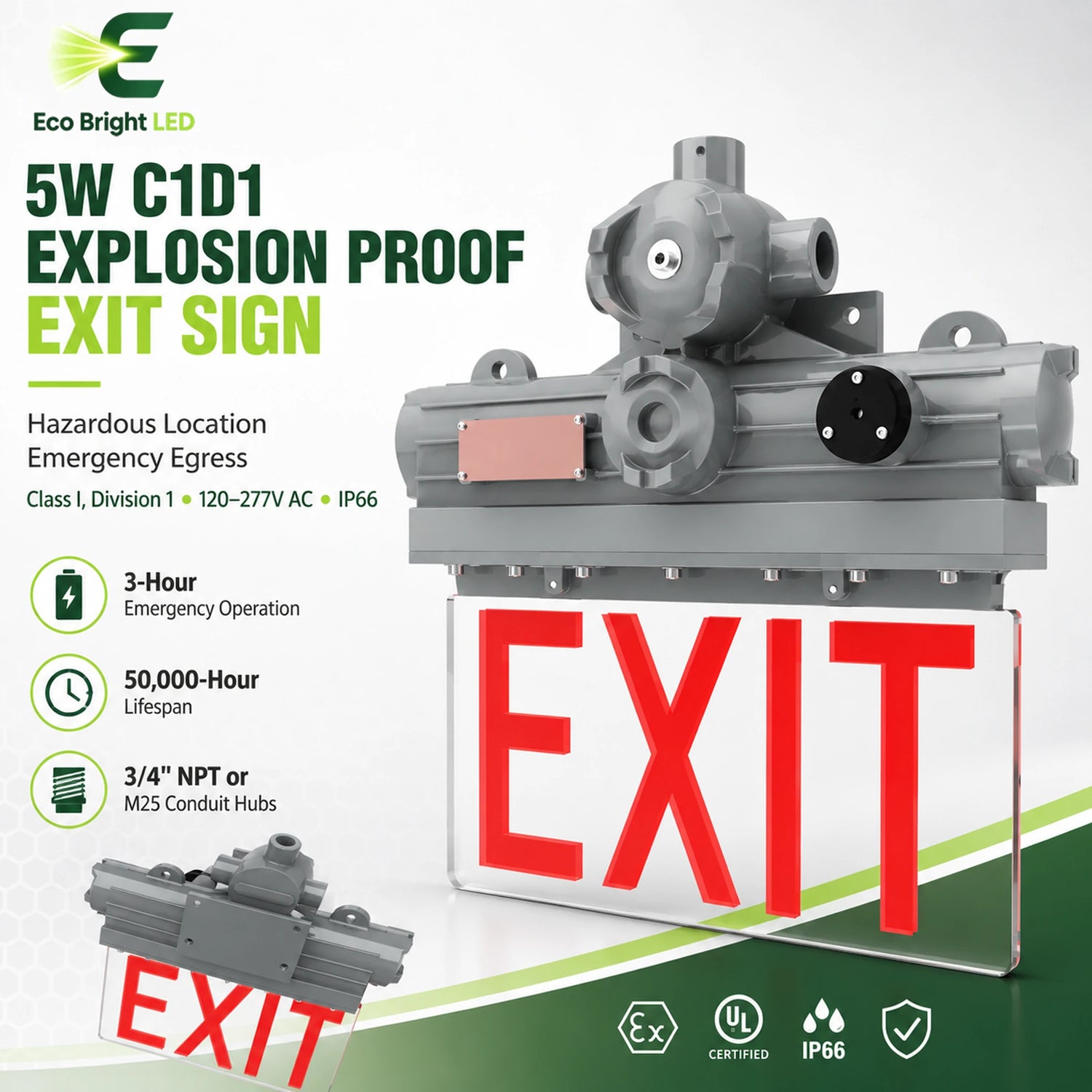

5W C1D1 Explosion Proof Exit Sign for Oil and Gas Sites
The Eco Bright Light C1D1 Explosion Proof Exit Sign provides clear red emergency exit identification in hazardous industrial environments. Its rugged aluminum housing, tempered glass sign plate, sealed IP66 construction and integrated three-hour emergency backup help maintain visible evacuation guidance during normal operation and unexpected power failures.
Class I Division 1
Designed for classified areas where flammable gases or vapors may be present during normal operating conditions.
3-Hour Emergency Backup
The integrated emergency system keeps the red EXIT display illuminated for up to 180 minutes after AC power is lost.
IP66 Sealed Housing
The gasketed enclosure protects internal components from dust and powerful water exposure.
Flexible Industrial Mounting
Supports wall mounting, pendant pipe mounting and pendant chain mounting for different facility layouts.

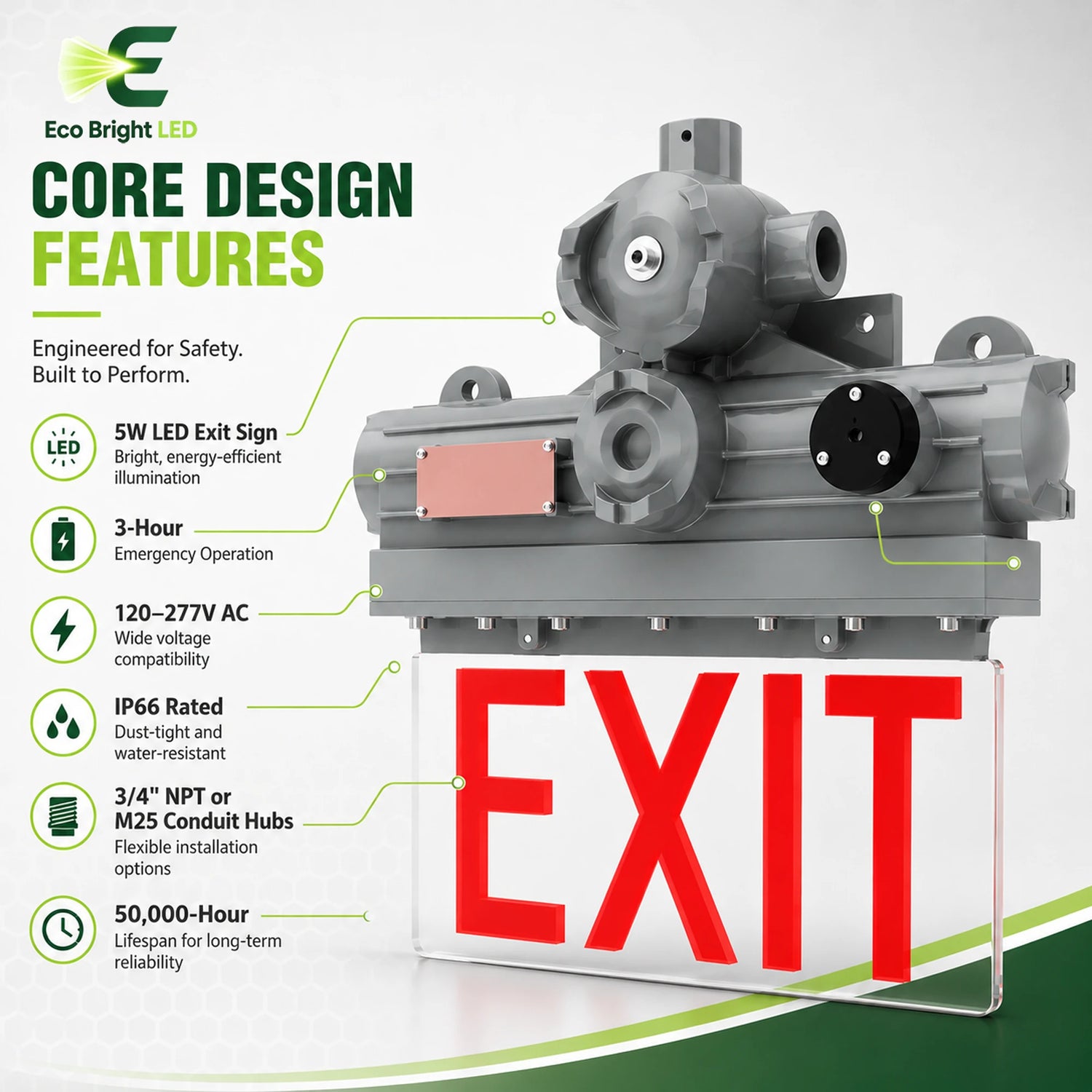

Technical Specifications
| Brand | Eco Bright Light |
| Product Type | C1D1 Explosion Proof LED Emergency Exit Sign |
| Rated Power | 5W |
| Input Voltage | 120-277V AC, 50/60Hz |
| Emergency Runtime | Up to 3 Hours / 180 Minutes |
| Display Color | Red LED |
| Display Type | Edge-Lit EXIT Legend |
| Viewing Configuration | Double-Sided EXIT Display |
| Viewing Angle | 180° |
| Hazardous Gas Classification | Class I, Division 1, Groups C and D |
| Additional Gas Classification | Class I, Division 2, Groups A, B, C and D |
| Combustible Dust Classification | Class II, Division 1, Groups E, F and G |
| Additional Dust Classification | Class II, Division 2, Groups F and G |
| Fiber and Flyings Classification | Class III Hazardous Locations |
| Ingress Protection | IP66 |

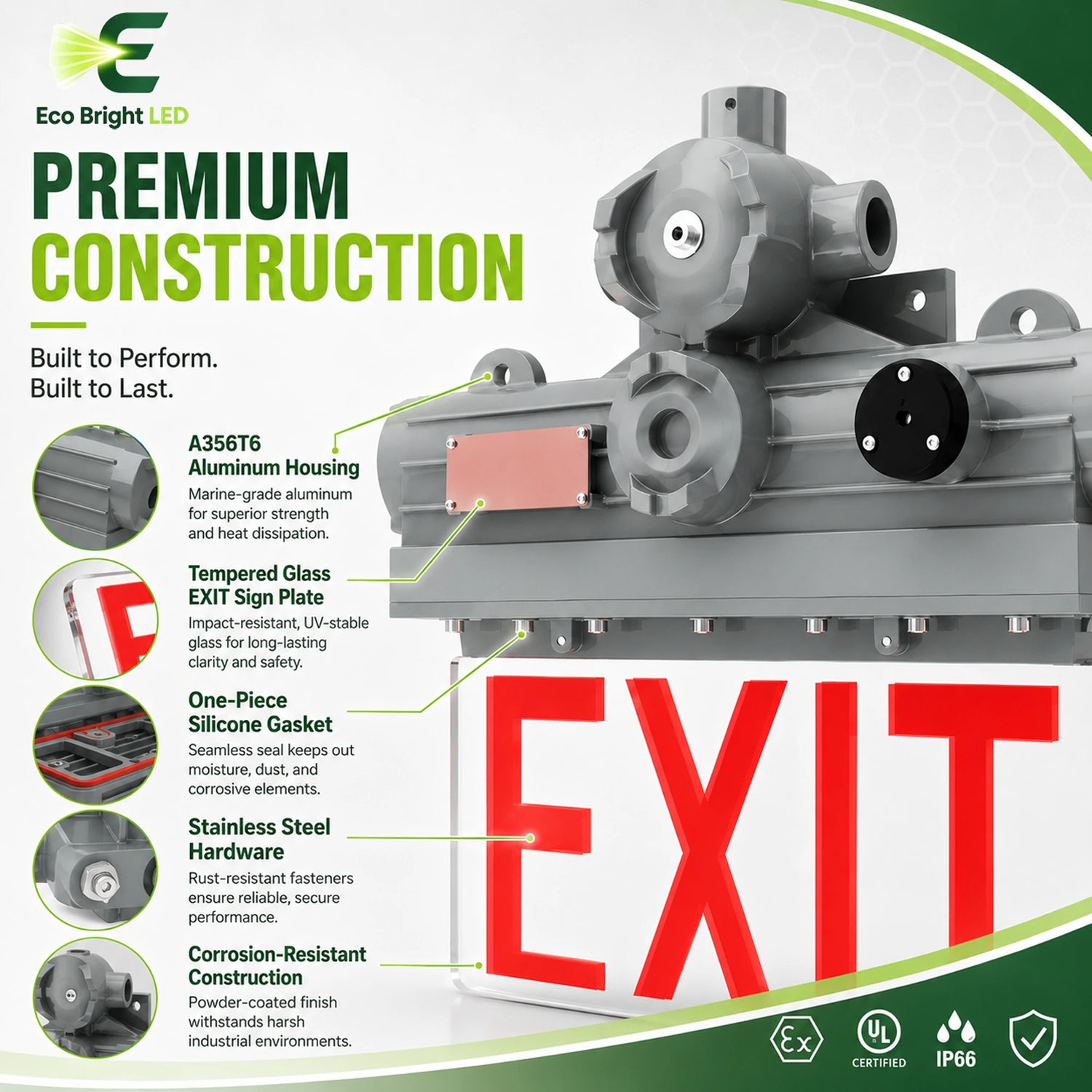

| Housing Material | A356-T6 Aluminum with Gray Baked Epoxy Finish |
| Gasket | One-Piece Silicone Gasket |
| EXIT Sign Plate | Tempered Glass |
| Exposed Hardware | Corrosion-Resistant Stainless Steel |
| Mounting Sling | Stainless Steel |
| Conduit Entry | 3/4-Inch NPT or M25 Conduit Hubs |
| Operating Modes | Maintained or Emergency-Only Operation |
| Dimming | Non-Dimmable |
| Status Indicators | Red, Green and Yellow Charging or Fault Indicators |
| Fast-Charge Indicator | Red Indicator for Approximately 20%-80% Battery Capacity |
| Trickle-Charge Indicator | Green Indicator for Approximately 80%-100% Battery Capacity |
| Low Battery or Fault Indicator | Yellow Indicator Below 20% Capacity or During Abnormal Operation |
| Emergency Control | Integrated Magnetic Switch for Startup, Reset and Shutdown |
| Product Page Nominal Size | Approximately 375.5 × 203.4 × 37.5 mm |
| Overall Assembled Width | Approximately 16 13/16 in |
| Overall Assembled Height | Approximately 17 1/8 in |
| Overall Assembled Depth | Approximately 4 15/16 in |
| Operating Temperature | 0°C to 40°C |
| Rated Lifetime | Up to 50,000 Hours |
| Mounting Options | Wall Mount, Pendant Pipe Mount or Pendant Chain Mount |
| Standards | UL 924, UL 844, UL 121201, CSA No. 213 and CSA C22.2 No. 137-18 |
| Listings | UL Hazardous Location and cULus Listed |
Reliable Exit Guidance for C1D1 Areas
- Class I Division 1 construction supports demanding hazardous areas.
- Three-hour backup exceeds standard 90-minute emergency operation.
- Double-sided red EXIT legend improves visibility from two directions.
- IP66 sealing protects against dust and powerful water exposure.
- Aluminum housing supports demanding industrial environments.
- Tempered glass provides a durable and highly visible sign surface.
- Stainless-steel hardware improves resistance to corrosion.
- Alternate EXIT legends and language options are available.
Maintained or Emergency-Only Operation
In maintained mode, the EXIT sign remains illuminated during normal AC operation and continues operating from the backup battery during a power failure. In emergency-only mode, the sign remains off while normal power is available and automatically illuminates when utility power is interrupted.
Three-Color Battery Status System
The integrated indicator system provides clear charging and fault information. Red indicates fast charging, green indicates trickle charging or higher battery capacity, and yellow identifies low battery capacity or abnormal system operation. The magnetic switch supports initial activation, system reset and emergency shutdown.

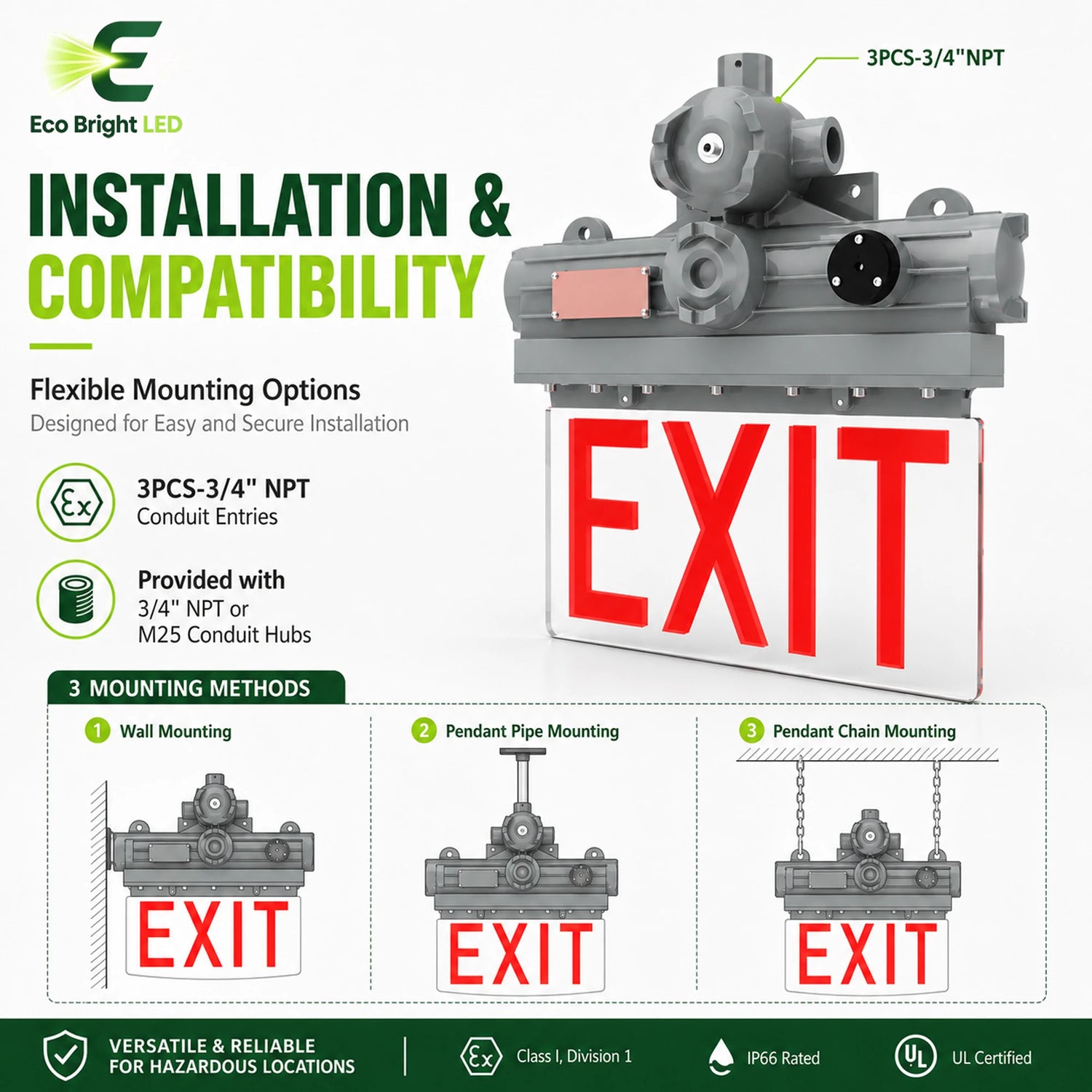

Wall, Pipe or Chain Installation
Install the fixture directly on a wall, suspend it from a compatible straight pipe and junction box, or use the stainless-steel mounting sling for chain suspension. Select the installation method according to viewing direction, ceiling height, classified-area wiring requirements and available structural support.
Hazardous-location performance depends on the complete installation, including approved conduit, sealing fittings, junction boxes, gaskets, fasteners and wiring methods. Installation and emergency testing must be completed by qualified personnel according to the supplied instructions and applicable electrical and life-safety codes.

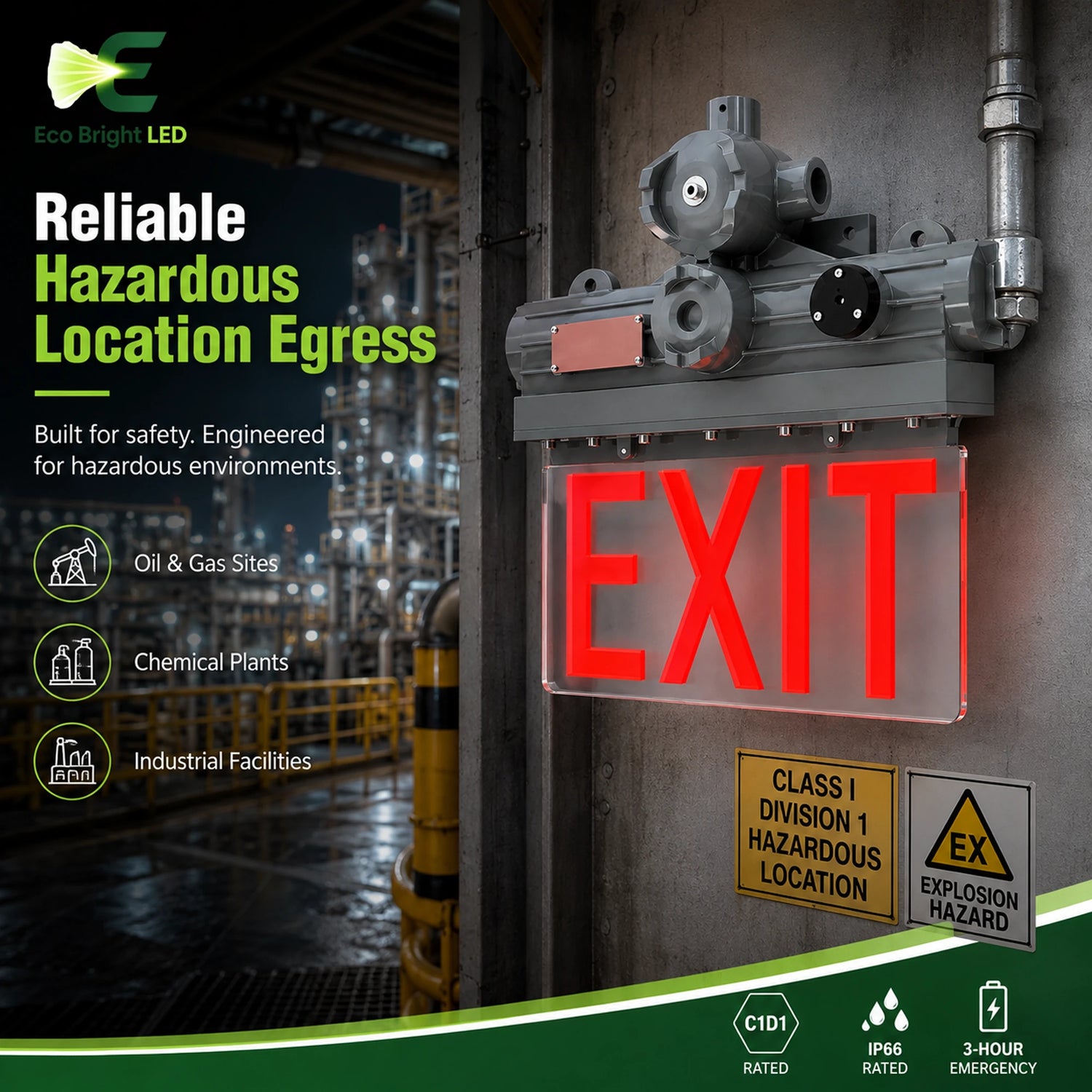

Oil, Gas and Industrial Safety Applications
Ideal for oil and gas refineries, petrochemical plants, chemical processing facilities, pump stations, battery rooms, grain handling areas, offshore platforms, marine facilities, industrial corridors, stairwells and emergency exits located in classified environments.
C1D1 Explosion Proof Exit Sign | Hazardous Location Exit Sign | Emergency Exit Sign | Industrial Exit Sign | Oil and Gas Safety Lighting | Refinery Exit Sign | Chemical Plant Exit Sign | IP66 Exit Sign | Edge Lit Exit Sign | Three Hour Emergency Sign
Maintain Clear Exit Guidance in Hazardous Environments
Choose Eco Bright Light for C1D1 hazardous-location performance, a high-visibility red EXIT display, three-hour emergency operation and rugged IP66 protection.
Package Information
| Package Size | 22 × 21 × 8 in |
| Pack Quantity | 1 Explosion Proof Exit Sign |
| Package Weight | 25 lbs |
