60/80/100W LED Canopy Light 3CCT for Parking Garages
60/80/100W LED Canopy Light 3CCT for Parking Garages is backordered and will ship as soon as it is back in stock.
60/80/100W LED Canopy Light 3CCT for Parking Garages is backordered and will ship as soon as it is back in stock.
Description
Description
60/80/100W LED Canopy Light 3CCT for Parking Garages

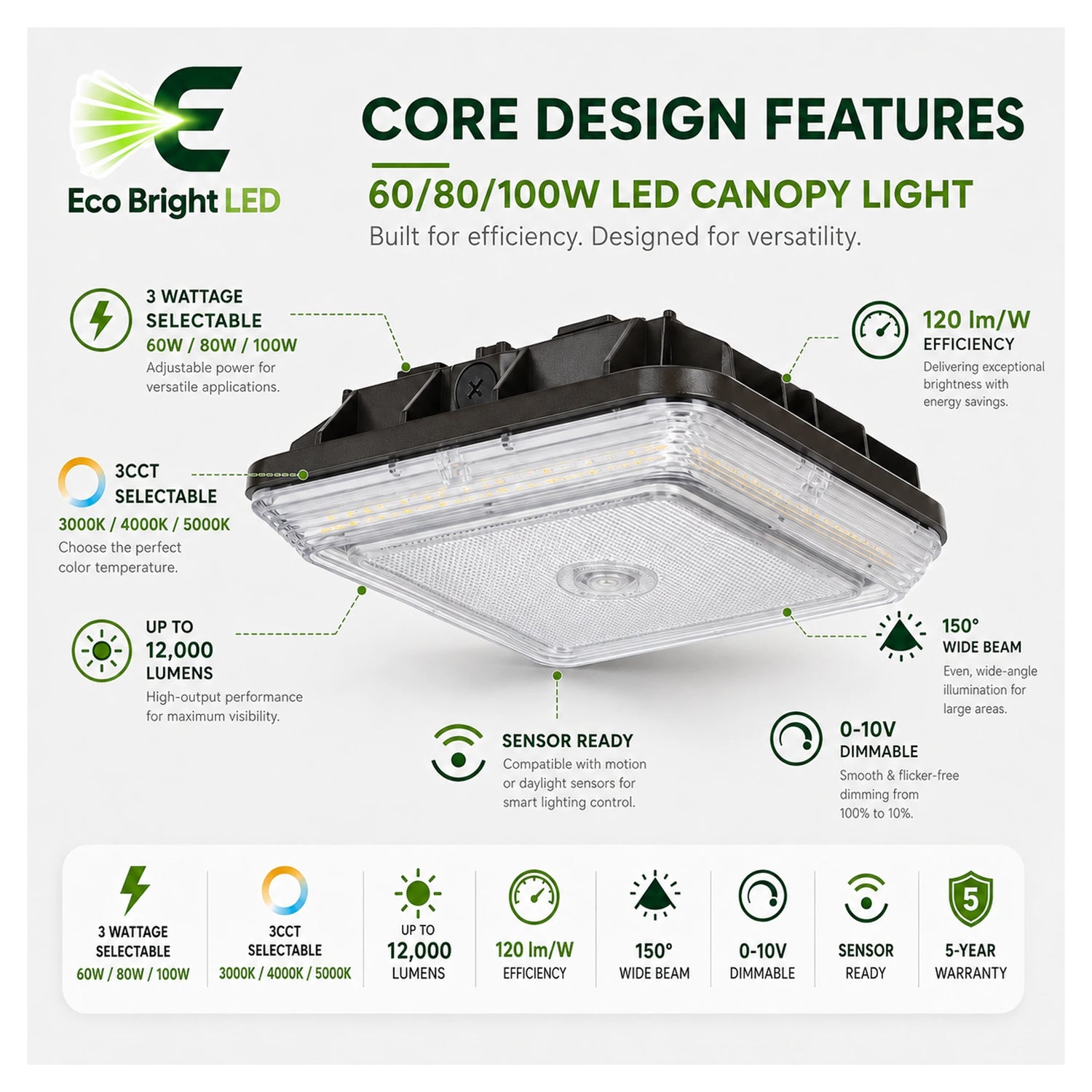

The Eco Bright Light LED Canopy Light combines selectable 60W, 80W and 100W power with 3000K, 4000K and 5000K selectable color temperature for flexible parking garage and commercial canopy lighting. Delivering up to 12,000 lumens with a broad 150° beam, 0-10V dimming and sensor-ready controls, this commercial LED canopy light is ideal for parking structures, gas station canopies, covered parking areas, loading docks and building entrances.
3 Wattage Selectable
Choose 60W, 80W or 100W to match brightness and energy consumption to different commercial canopy applications.
3CCT Selectable
Select 3000K warm white, 4000K neutral white or 5000K daylight for different parking and commercial environments.
150° Wide Beam
Broad optical distribution helps provide uniform illumination across parking bays, drive lanes and covered areas.
Sensor Ready
Built-in receptacle supports compatible plug-and-play occupancy sensors for intelligent energy-saving control.
Technical Specifications
| Brand | Eco Bright Light |
| Product Type | Selectable LED Canopy Light |
| Selectable Wattage | 60W / 80W / 100W |
| Lumen Output | 7,200 / 9,600 / 12,000 Lumens |
| Luminous Efficiency | 120 lm/W |
| Color Temperature | 3000K / 4000K / 5000K Selectable |
| CRI | >80 |
| Input Voltage | 120-277V AC |
| Power Factor | 0.9 |
| Dimming | 0-10V Dimmable |
| Beam Angle | 150° Wide Distribution |
| Sensor Compatibility | Plug-and-Play Occupancy Sensor Optional |
| Housing Material | Heavy-Duty Die-Cast Aluminum Alloy |
| Housing Finish | Bronze Powder-Coated Finish |
| LED Technology | High-Efficiency Lumileds 2835 LEDs |
| Optical Lens | High-Transmission Polycarbonate Optics |
| Fixture Size | Approximately 11.02 × 11.02 × 3.35 in |
| Mounting | Ceiling Mount or 3/4-Inch Conduit Pendant Mount |
| Operating Temperature | -20°C to 45°C |
| Rated Lifetime | 50,000 Hours |
| HID Equivalent | 120W-300W MH/HPS Depending on Selected Wattage |
| Certifications | UL / cUL / DLC |
| Warranty | 5-Year Limited Warranty |
Selectable Parking Garage LED Canopy Light
- 60W, 80W and 100W selectable power allows one fixture to meet multiple parking garage lighting requirements.
- 7,200 to 12,000 lumens provides flexible output for parking structures and commercial canopy applications.
- 3000K, 4000K and 5000K selectable CCT simplifies inventory and project specification.
- 150° wide distribution provides broad illumination across parking spaces and low-ceiling areas.
- 0-10V dimming supports adjustable brightness with compatible commercial lighting controls.
- Sensor-ready design supports plug-and-play occupancy control for additional energy savings.
- Die-cast aluminum housing and finned heat dissipation support reliable long-term operation.
- Ceiling and conduit mounting options provide flexibility for retrofit and new construction projects.
Wide-Beam Lighting with Smart Controls
The 150° optical distribution spreads illumination broadly across parking bays, drive lanes and pedestrian areas to help reduce dark spots in low-ceiling environments. Field-selectable wattage and CCT allow installers to configure one fixture for multiple locations, while 0-10V dimming and the sensor receptacle support advanced commercial lighting controls.
Parking Garage & Commercial Canopy Applications
This LED canopy light is ideal for parking garages, covered parking areas, gas station canopies, shopping centers, airport garages, commercial building entrances, loading docks, service areas, hotels, hospitals and retail properties requiring bright and uniform overhead lighting.
LED Canopy Light | Parking Garage Lighting | Garage Lights | Parking Structure Lighting | Gas Station Canopy Light | Commercial Canopy Light | Low Bay Lighting | Covered Parking Lighting | Building Entrance Lighting
Energy-Efficient HID Replacement
Replace multiple fixed-wattage metal halide or high-pressure sodium canopy fixtures with one configurable LED solution. Depending on the selected output, Eco Bright Light supports compatible 120W-300W HID replacement applications while providing selectable CCT, instant LED illumination, dimming and sensor-ready control.
Upgrade to Selectable LED Canopy Lighting
Choose Eco Bright Light for 60W/80W/100W selectable power, 3000K/4000K/5000K CCT, up to 12,000 lumens, 150° wide coverage, 0-10V dimming and sensor-ready control.
Package Information
| Package Size | 10 × 6.5 × 7 in |
| Pack Quantity | 1 Fixture |
| Package Weight | 6 lbs |
