Round High Bay Explosion Proof LED Light C1D2 – 60W 8,400lm 5000K 120-277V

Regular price $309.98
Shipping calculated at checkout.

Expected to ship in 1-2 Business Days

Description

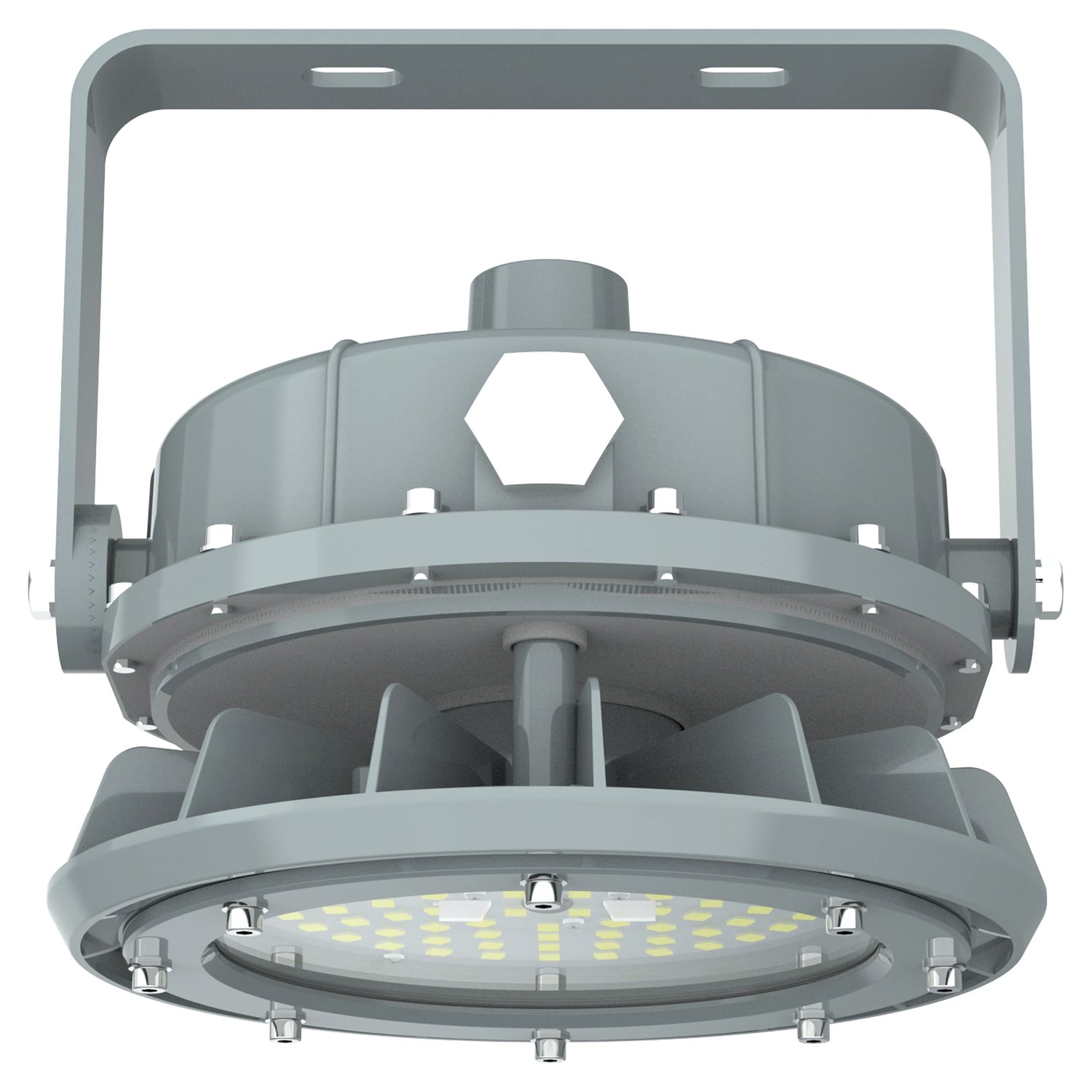

60W LED Explosion Proof High Bay Light 5000K

60W 8,400 Lumens 140 LM/W 5000K Class I Division II 120-277V IP66

The Eco Bright Light 60W LED Explosion Proof High Bay delivers 8,400 lumens of bright 5000K daylight for hazardous industrial environments. Designed for Class I Division II locations, this compact B2 Series fixture combines efficient LED performance, rugged copper-free aluminum construction and IP66 protection for dependable illumination.

8,400 Lumens

High-efficiency 60W LED output with 140 lm/W performance and 120° wide light distribution.

Class I Division II

Designed for hazardous locations where flammable gases or vapors may be present under abnormal conditions.

Industrial Construction

Copper-free aluminum housing, stainless steel hardware and IP66 dust and water protection.

Compact B2 Design

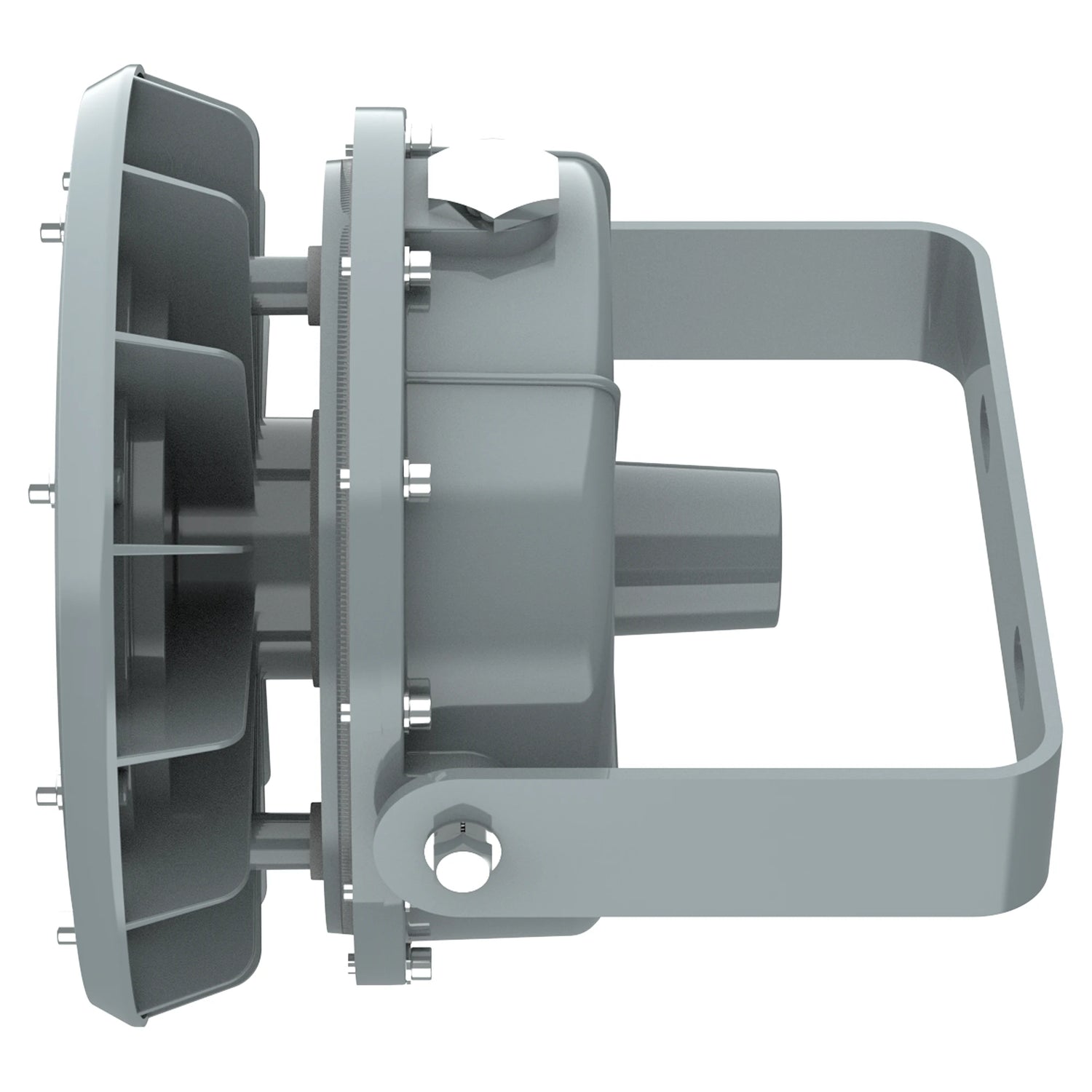

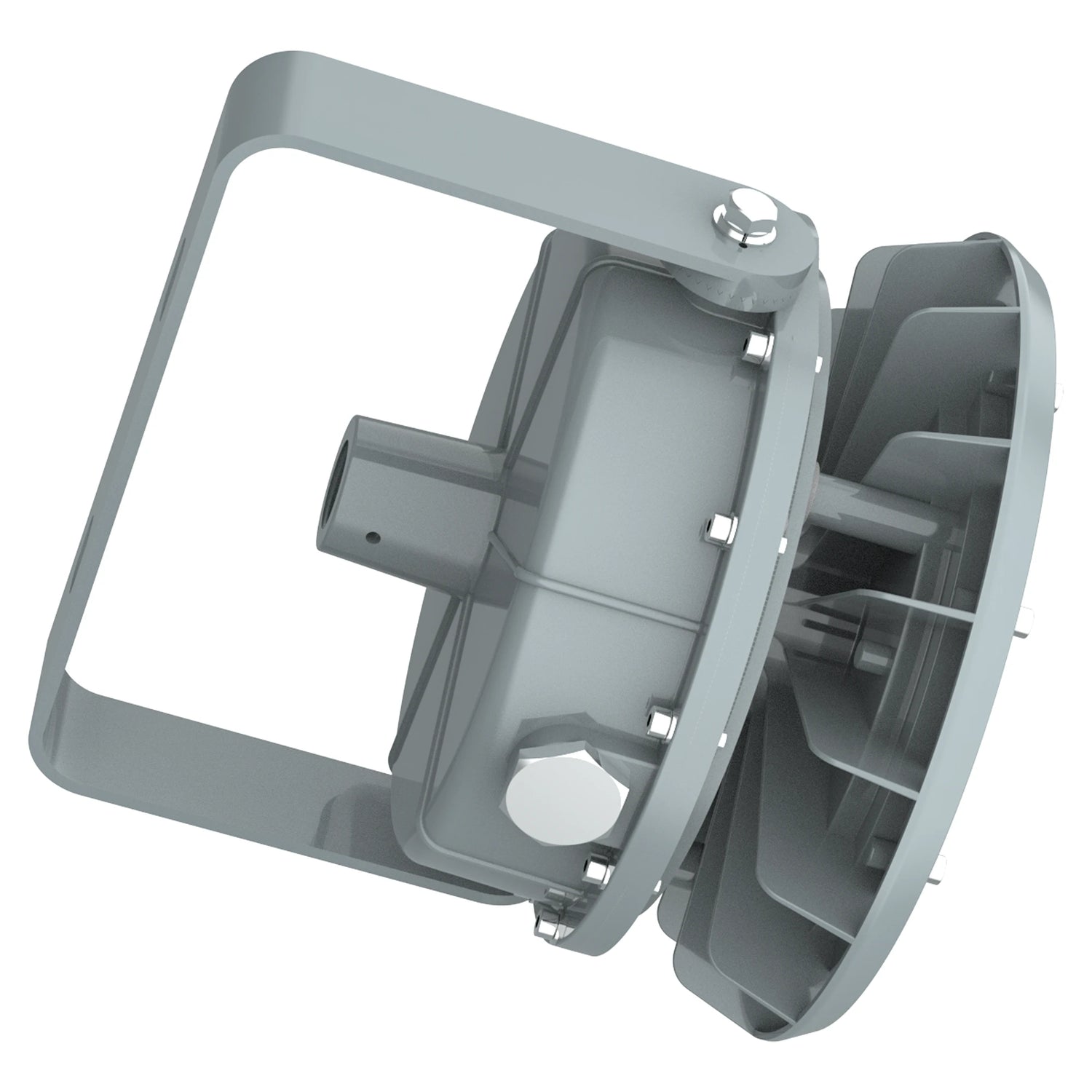

Space-efficient round housing with adjustable mounting bracket and reliable thermal management.

Technical Specifications

Brand Eco Bright Light
Series B2 Series
Fixture Type LED Explosion Proof High Bay
Power 60W
Lumen Output 8,400 Lumens
Luminous Efficiency 140 lm/W
Color Temperature 5000K Daylight White
CRI >70
Input Voltage AC 120-277V
Frequency 50/60Hz
Power Factor >0.95
Beam Angle 120° Wide Flood
Dimming 0-10V (Configuration Dependent)
Safety Rating Class I Division II, Groups A, B, C & D;
Class II Division I, Groups E, F & G;
Class II Division II, Groups F & G;
Class III
Additional Zone Rating Class I Zone 2, Group IIC;
Class II Zone 21, Group IIIC
IP Rating IP66
Impact Rating IK08
Housing Material Copper-Free Aluminum
Lens Material Tempered Glass
Hardware Stainless Steel
Fixture Color Gray RAL7040

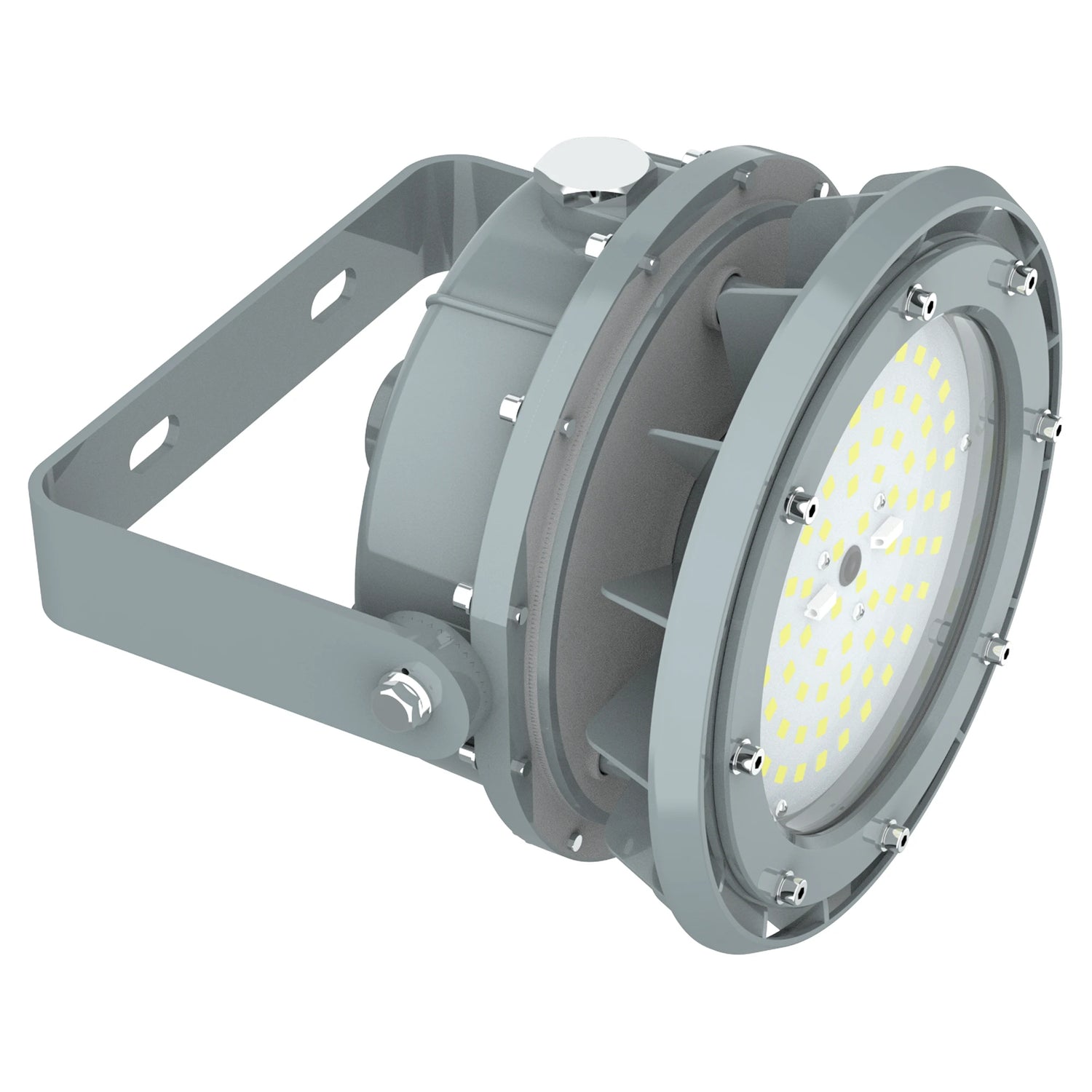

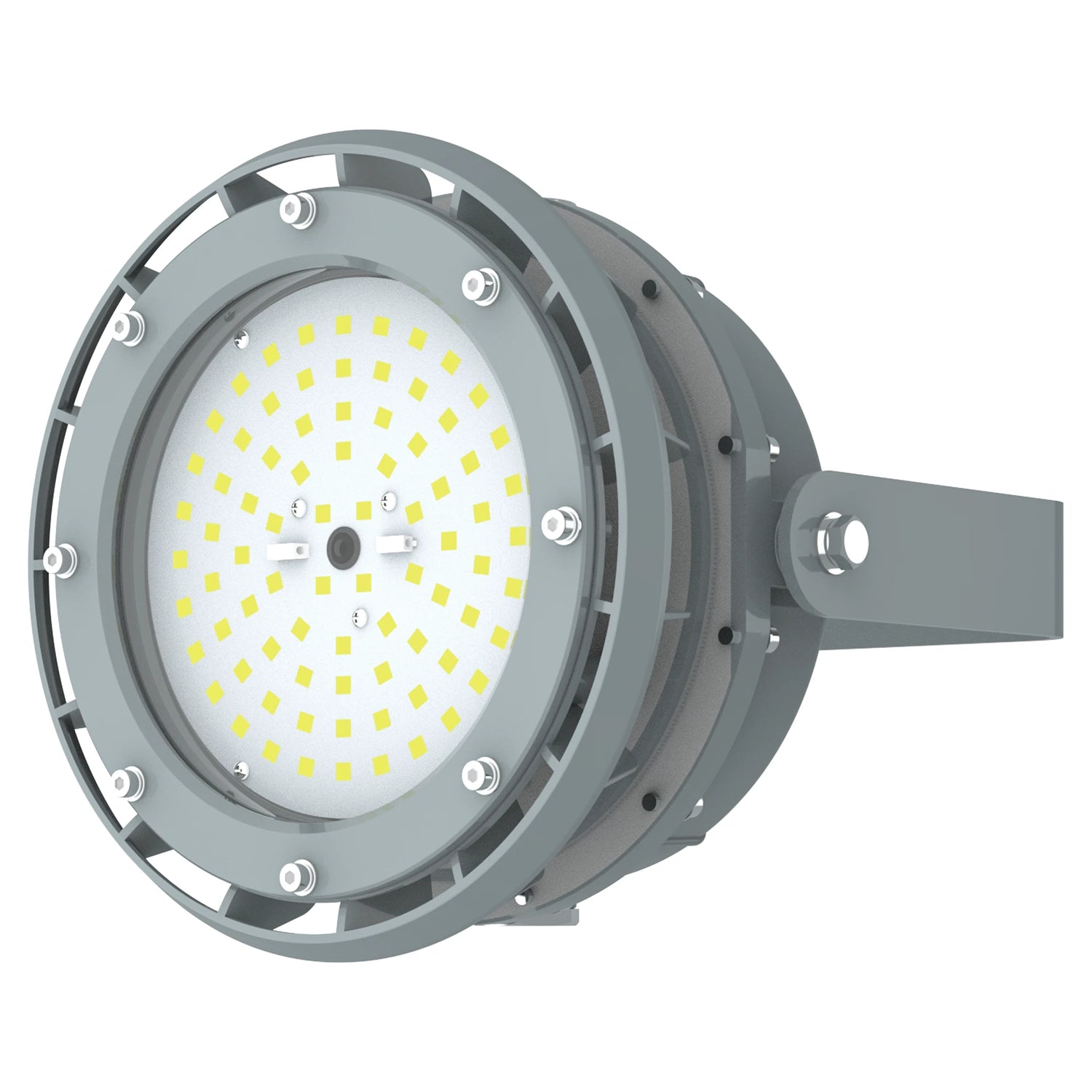

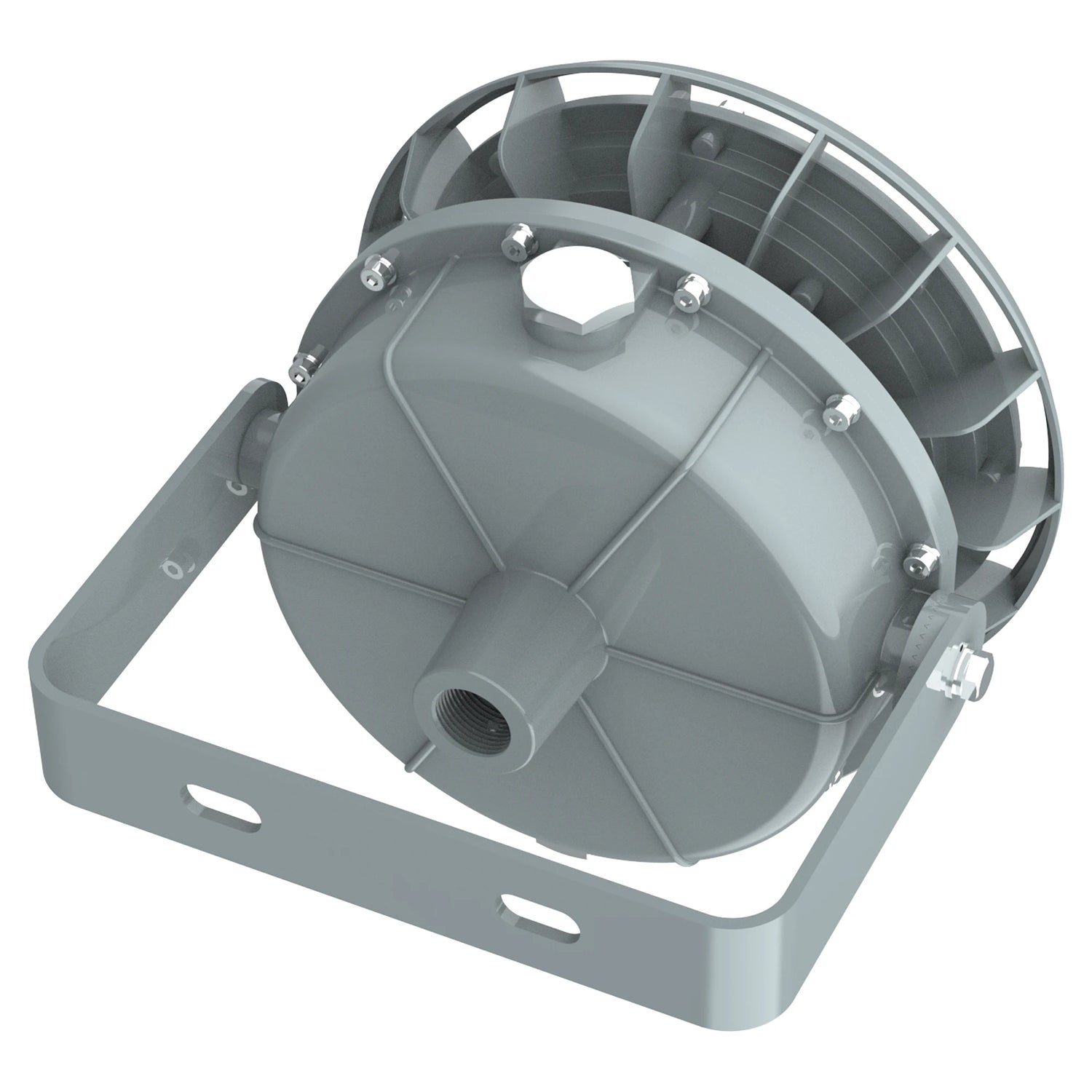

Mounting Options Surface / Pendant / Trunnion (Compatible Accessories Required)
Cable Entry Side: 3/4" NPT;
Top: 3/4" NPT
Emergency Backup No Emergency Function
Compliance Standards UL 844 / UL 1598 / UL 1598A
Salt Spray Resistance 1,000 Hours
Lumen Maintenance L70 >150,000 Hours at 55°C
Warranty 5 Years

Key Benefits

  • 8,400 lumens of bright 5000K illumination.
  • Efficient 140 lm/W LED performance.
  • Class I Division II hazardous location design.
  • IP66 protection against dust and water.
  • Compact copper-free aluminum housing.
  • Multiple mounting configurations available.

Applications

Suitable for industrial and hazardous locations requiring reliable, efficient illumination in demanding operating environments.

  • Petrochemical Refineries
  • Oil & Gas Processing Facilities
  • Chemical Manufacturing Plants
  • Wastewater Treatment Facilities
  • Industrial Storage Areas
  • Power Generation Facilities

Package Information

Package Dimensions (L × W × H) 14.17 × 13.94 × 10.24 in
Net Weight 7.72 lbs (3.5 kg)
Gross Weight 11.02 lbs (5.0 kg)
Quantity per Carton 1 pc

Reliable 60W Explosion Proof LED High Bay

8,400 Lumens • 5000K • 140 lm/W • Class I Division II • AC 120-277V • IP66 • 5-Year Warranty
