Round High Bay Explosion Proof LED Light C1D1 – 60W 8,400lm 4000K 100-277V
Round High Bay Explosion Proof LED Light C1D1 – 60W 8,400lm 4000K 100-277V is backordered and will ship as soon as it is back in stock.
Round High Bay Explosion Proof LED Light C1D1 – 60W 8,400lm 4000K 100-277V is backordered and will ship as soon as it is back in stock.
Description
Description

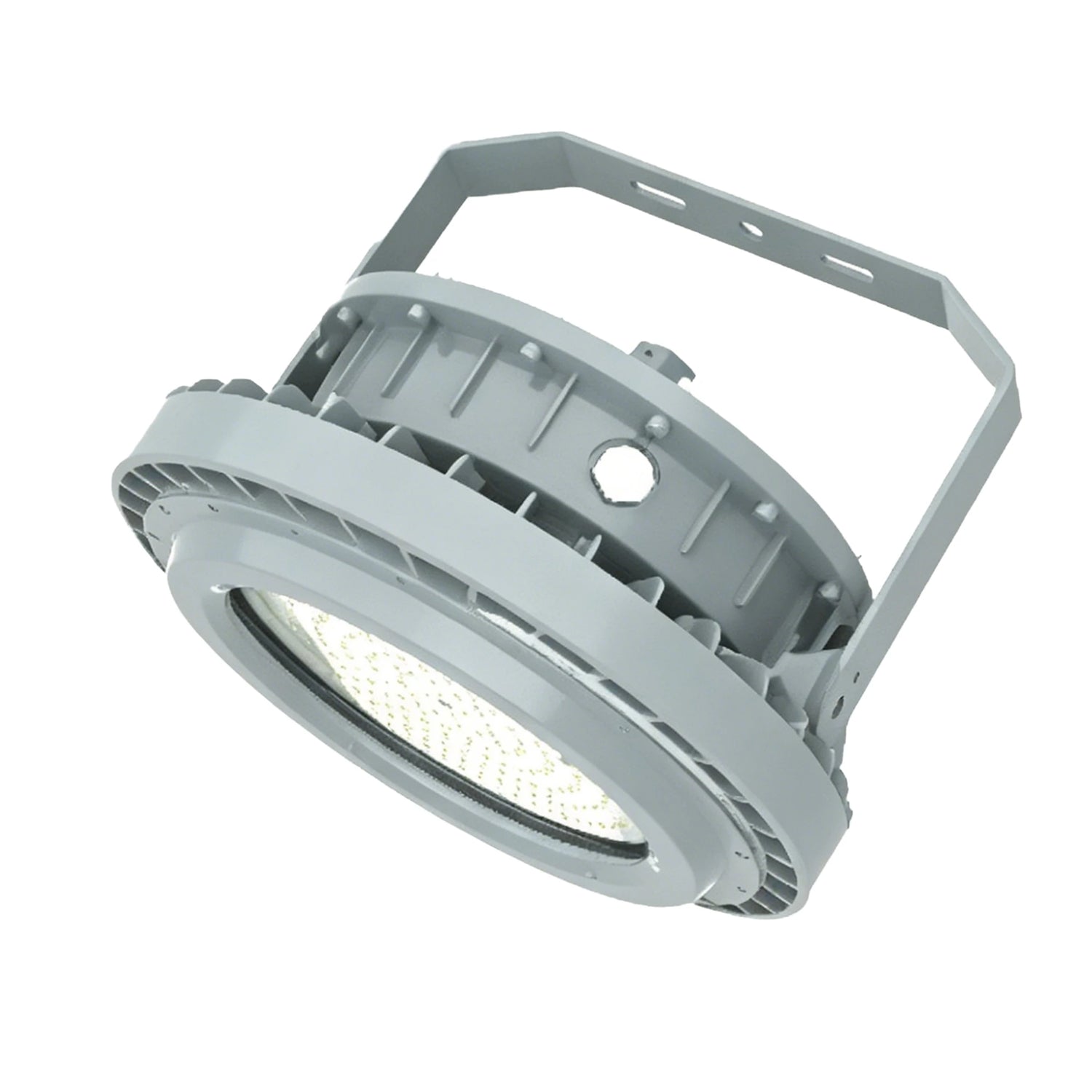

60W LED Explosion Proof Round High Bay
The Eco Bright Light 60W LED Explosion Proof Round High Bay delivers 8,400 lumens at 140 lm/W for demanding hazardous industrial environments. Designed for Class I Division I locations, this C2 Series fixture combines 4000K neutral white illumination, IP66 protection, copper-free aluminum construction and a rugged round housing. Its 120° beam and 0-10V dimming capability provide efficient, reliable lighting for industrial and marine applications.
Class I Division I Protection
Designed for hazardous locations classified as Class I Division I, Groups C and D.
140 LM/W Efficiency
Produces 8,400 lumens using only 60 watts, delivering efficient industrial illumination.
IP66 Industrial Protection
Dust-tight and water-resistant construction supports operation in demanding environments.
0-10V Dimmable
Supports 0-10V dimming for flexible lighting control across industrial applications.
60W Explosion Proof High Bay Technical Specifications
| Brand | Eco Bright Light |
| Model | EX-60W C2YZDA |
| Product Type | 60W Explosion Proof Round LED High Bay |
| Series | C2 Series |
| Wattage | 60W |
| Lumen Output | 8,400 Lumens |
| Luminous Efficiency | 140 lm/W |
| Color Temperature | 4000K |
| CRI | >70 |
| Input Voltage | 100-277V AC |
| Input Frequency | 50/60Hz |
| Power Factor | >0.95 |
| Beam Angle | 120° |
| Dimming | 0-10V Dimmable |
| Hazardous Location Rating | Class I Division I, Groups C & D |
| Protection Rating | IP66 |
| Impact Resistance | IK08 (Glass Cover) |
| Housing Material | Copper-Free Aluminum |
| Diffuser | Tempered Glass |
| Hardware | Stainless Steel |
| Operating Temperature | -40°C to 60°C (T4) |
| Mounting Options | Ceiling, Wall, Hook, Pole, Trunnion |
| Standard Cable Entry | 3/4" NPT |
| Lumen Maintenance | L70 >150,000 Hours at 55°C |
| Certifications | UL 844 / UL 1598 / UL 1598A / ETL |
| Warranty | 5-Year Limited Warranty |
High-Efficiency 60W Hazardous Location Lighting
- Provides 8,400 lumens of industrial LED illumination at 140 lumens per watt.
- Engineered for Class I Division I hazardous locations, Groups C and D.
- 4000K neutral white light provides clear illumination for industrial working environments.
- Wide 120° beam angle supports uniform lighting for industrial areas.
- 0-10V dimming allows compatible lighting control and output adjustment.
- IP66 protection helps resist dust and water in harsh operating environments.
- Copper-free aluminum housing provides corrosion resistance and effective heat dissipation.
- 5-year warranty supports dependable long-term industrial lighting applications.
C1D1 Explosion Proof Industrial Protection
The Eco Bright Light 60W LED Explosion Proof Round High Bay
is designed for Class I Division I hazardous locations where
flammable gases or vapors may be present during normal operations.
Its C2 Series construction is suitable for demanding
industrial applications requiring reliable hazardous-location
illumination.
The fixture also meets Class II Division I requirements for
Groups E, F and G, and Class III hazardous-location
classifications as specified in the C Series documentation.
Wide 120° High Bay Light Distribution
The 60W C2 Series high bay produces 8,400 lumens at 140 lm/W with a 120° beam angle. Its round LED optical design provides broad illumination for industrial facilities, production areas and hazardous-location workspaces.
Flexible Industrial Mounting Options
The C2 Series supports ceiling, wall, hook pendant,
pole and trunnion mounting configurations.
Multiple installation options allow the fixture
to accommodate different industrial lighting requirements.
The fixture uses a standard 3/4" NPT cable entry,
with alternative entry configurations available
through compatible adapters.
Durable Explosion Proof LED Construction
- Copper-free aluminum housing provides corrosion resistance in industrial environments.
- Tempered glass diffuser protects the LED light source.
- Stainless steel hardware supports long-term durability.
- IP66 enclosure protects against dust and powerful water jets.
- IK08 impact resistance applies to the standard glass cover.
- T4 temperature classification supports specified hazardous-location operation.
- Designed for ambient temperatures from -40°C to 60°C.
- L70 lumen maintenance exceeds 150,000 operating hours at 55°C.

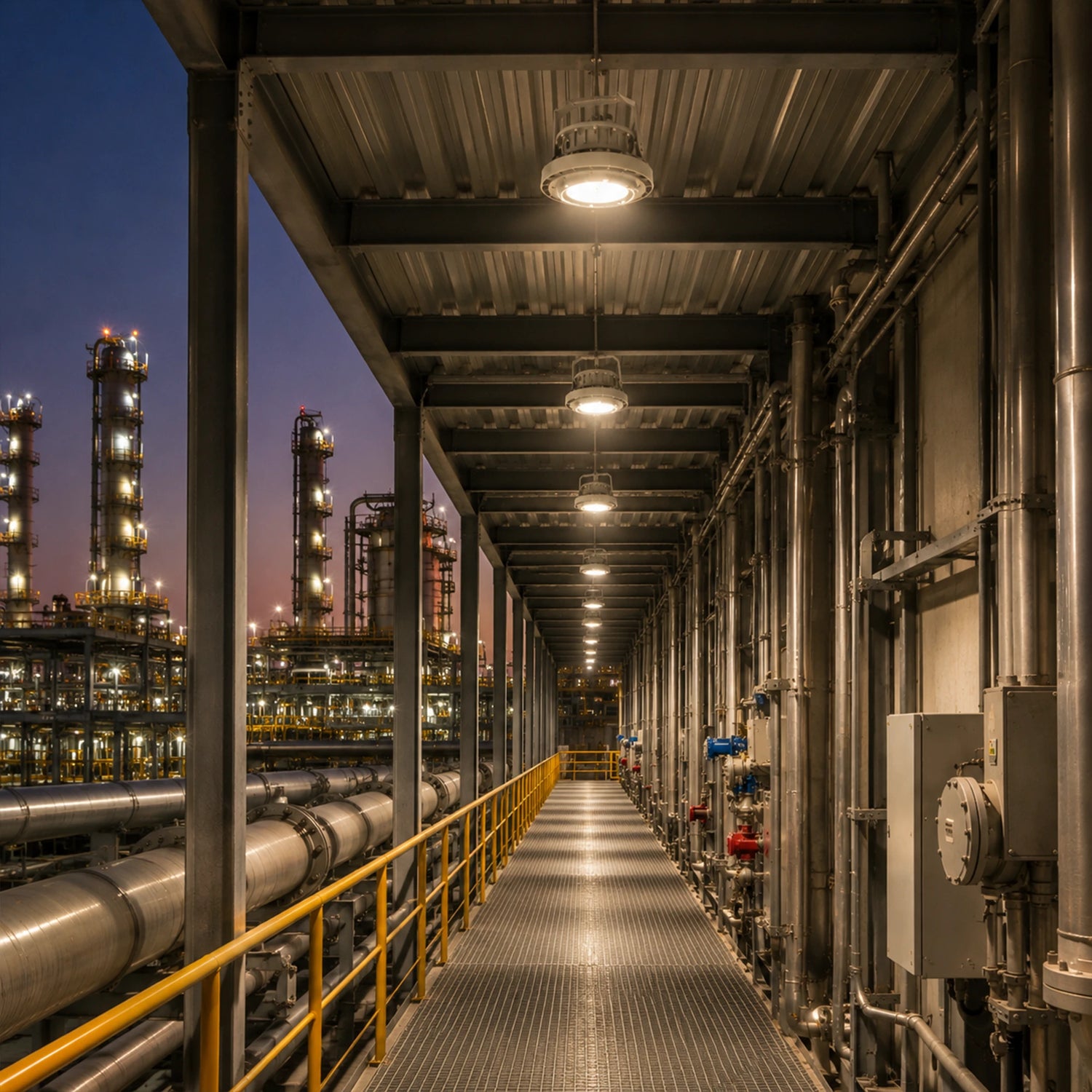

Hazardous Industrial Lighting Applications
The Eco Bright Light 60W LED Explosion Proof Round High Bay
is designed for hazardous industrial and marine environments
where reliable lighting and durable construction are required.
Explosion Proof High Bay Lighting |
Petrochemical Refineries |
Oil and Gas Facilities |
Chemical Processing Plants |
Wastewater Treatment Facilities |
Marine and Offshore Platforms |
Industrial Storage Areas |
Power Plants |
Loading Docks |
Heavy Industrial Facilities
Upgrade Hazardous Areas with Efficient LED Lighting
The 60W explosion proof high bay combines 8,400 lumens, 140 lm/W efficiency and 0-10V dimming with a rugged IP66-rated housing. Designed for demanding hazardous locations, it offers dependable illumination, flexible mounting configurations and long-term industrial durability.
Upgrade Hazardous Areas with 60W Explosion Proof Lighting
8,400 Lumens • 140 lm/W • 4000K • C1D1 • IP66 • 120° Beam • 0-10V Dimming • UL 844 / UL 1598
Package Information
| Package Contents | 1 × 60W LED Explosion Proof Round High Bay |
| Package Dimensions | 17.5 × 16.5 × 15 in |
| Quantity per Package | 1 Pc |
| Package Weight | 35.2 lbs |
