8W LED Emergency Backup Driver for Commercial Fixtures
The Eco Bright Light 8W LED Emergency Backup Driver adds dependable emergency operation to compatible commercial LED fixtures. When normal AC power is interrupted, the integrated battery system automatically supplies constant 8W emergency power for at least 90 minutes, helping maintain essential illumination in offices, schools, hospitals, retail stores, warehouses and commercial buildings.
90-Minute Emergency Operation
Automatically powers the connected LED fixture for at least 90 minutes after normal utility power is lost.
100-347V Universal Input
Supports common commercial electrical systems across offices, schools, hospitals and industrial facilities.
170V DC High-Voltage Output
Provides constant 8W emergency output through the compatible fixture's regular LED driver input.
Automatic Self-Diagnostics
Performs scheduled monthly and annual discharge tests to verify emergency lighting capability.
Technical Specifications
| Brand | Eco Bright Light |
| Product Type | High-Voltage LED Emergency Backup Driver |
| Emergency Output Power | Constant 8W |
| Input Voltage | 100-347V AC, 50/60Hz |
| Maximum Input Current | 150mA |
| Recharge Power | 10W |
| Emergency Output Voltage | 170V DC |
| Emergency Runtime | Minimum 90 Minutes |
| Recharge Time | Approximately 24 Hours |
| Battery Type | Integrated Rechargeable Lithium-Ion Battery |
| Recommended Fixture Power | Compatible Commercial LED Fixtures Rated Up to 60W |
| Emergency Activation | Automatic Transfer When Normal AC Power Fails |
| Monthly Self-Test | Automatic 30-Second Discharge Test Every 30 Days |
| Annual Self-Test | Automatic 90-Minute Discharge Test Every 365 Days |
| Surge Protection | 3kV Line-to-Neutral |
| Driver Dimensions | Approximately 13.59 × 1.54 × 0.99 in |
| Maximum Unit Weight | 1.7 lbs |
| Ambient Temperature | 5°C to 50°C |
| Location Rating | Dry and Damp Indoor Locations and Compatible Plenum Spaces |
| Maximum Installation Height | Up to 51 ft |
| Compliance | UL 924 and CSA C22.2 No. 141 |
| Warranty | 5-Year Limited Warranty |

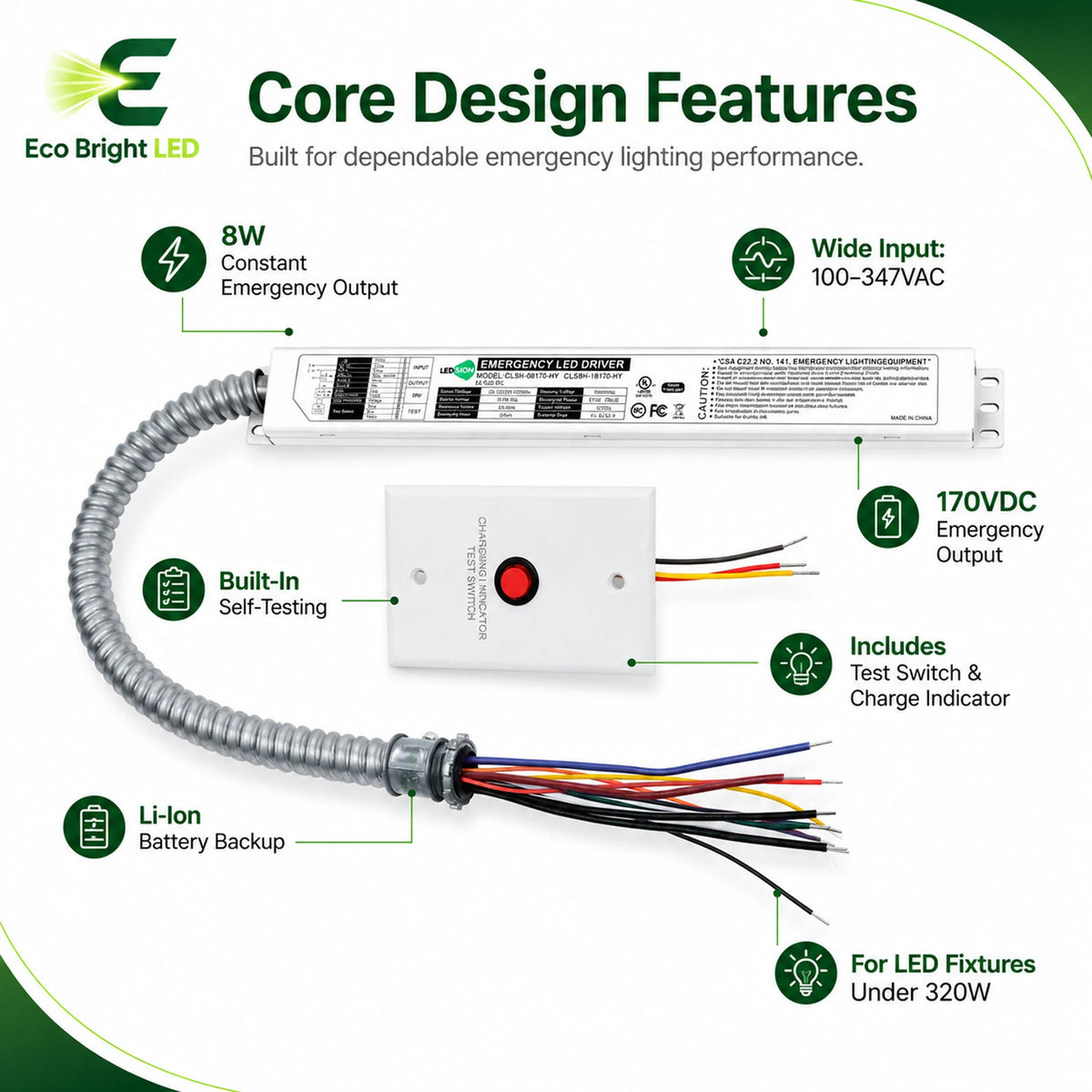

Reliable Emergency Lighting Performance
- Automatically transfers the fixture to battery-powered operation.
- Provides constant 8W output for predictable emergency illumination.
- Maintains emergency lighting for at least 90 minutes.
- Universal 100-347V input supports commercial electrical systems.
- Integrated battery protection supports safe charging and discharge.
- 3kV surge protection helps resist electrical transients.
- Compact linear housing fits many commercial LED fixtures.
- Factory or field installation supports new and retrofit projects.
Commercial Emergency Lighting Applications
Suitable for compatible LED commercial downlights, panel lights, troffers, strip fixtures, LED tubes, wall packs, vapor-tight fixtures and other indoor luminaires used in offices, schools, hospitals, retail stores, hotels, warehouses and institutional buildings.
LED Emergency Backup Driver | 8W Emergency LED Driver | Emergency Lighting Battery Backup | 90 Minute Emergency Driver | 100-347V Emergency Driver | 170VDC Emergency Driver | Self Testing Emergency Driver | Commercial Emergency Lighting | LED Fixture Emergency Backup | UL 924 Emergency Driver
Use only with grounded, UL-listed indoor LED fixtures rated for dry or damp locations. Installation, servicing and compatibility testing must be completed by qualified personnel.
Add Dependable Emergency Backup to Commercial LED Fixtures
Choose Eco Bright Light for constant 8W output, 90-minute emergency operation, universal 100-347V input and automatic self-diagnostic testing.
Package Information
| Package Size | 15 × 3 × 2 in |
| Pack Quantity | 1 Emergency Backup Driver |
| Package Weight | 1.1 lbs |
