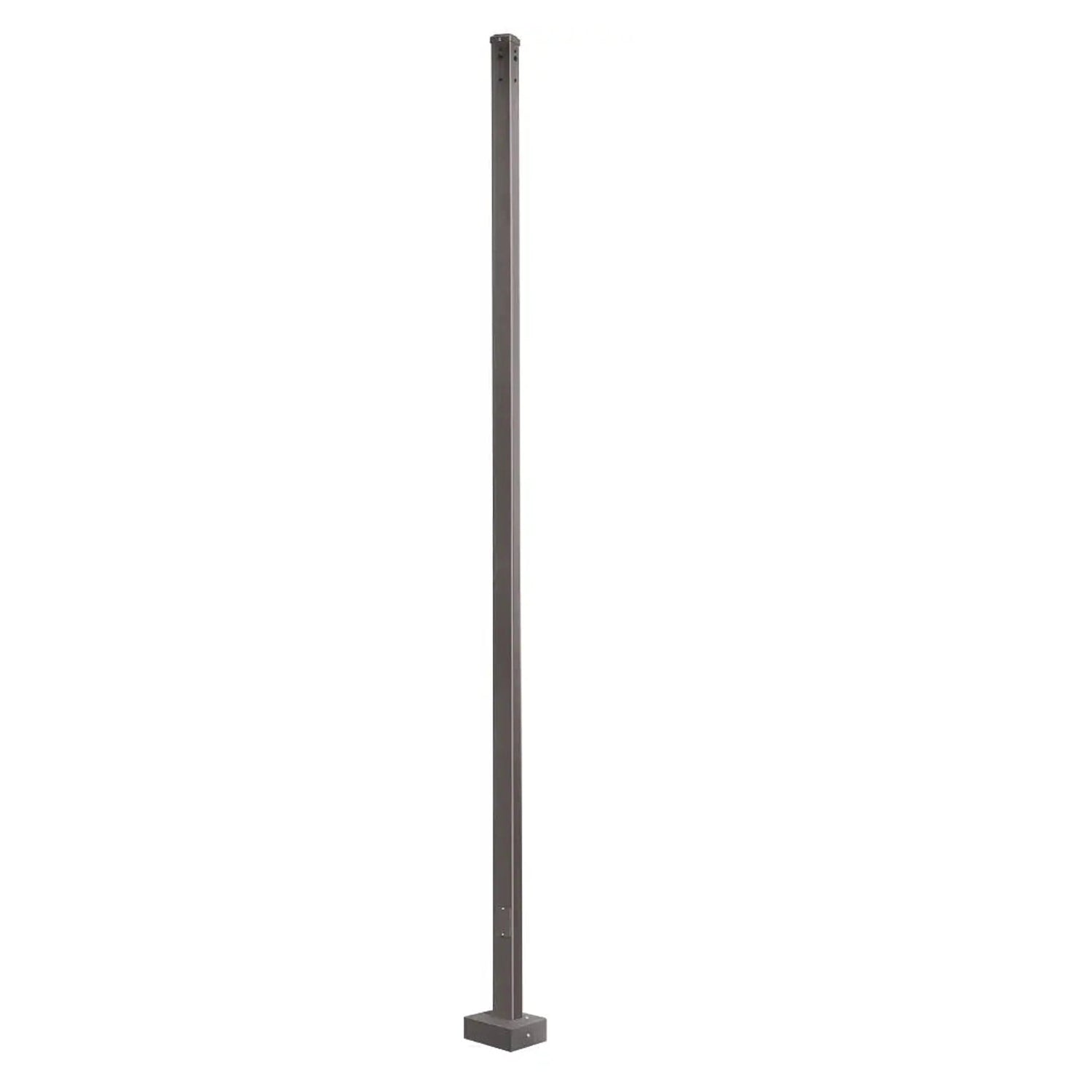

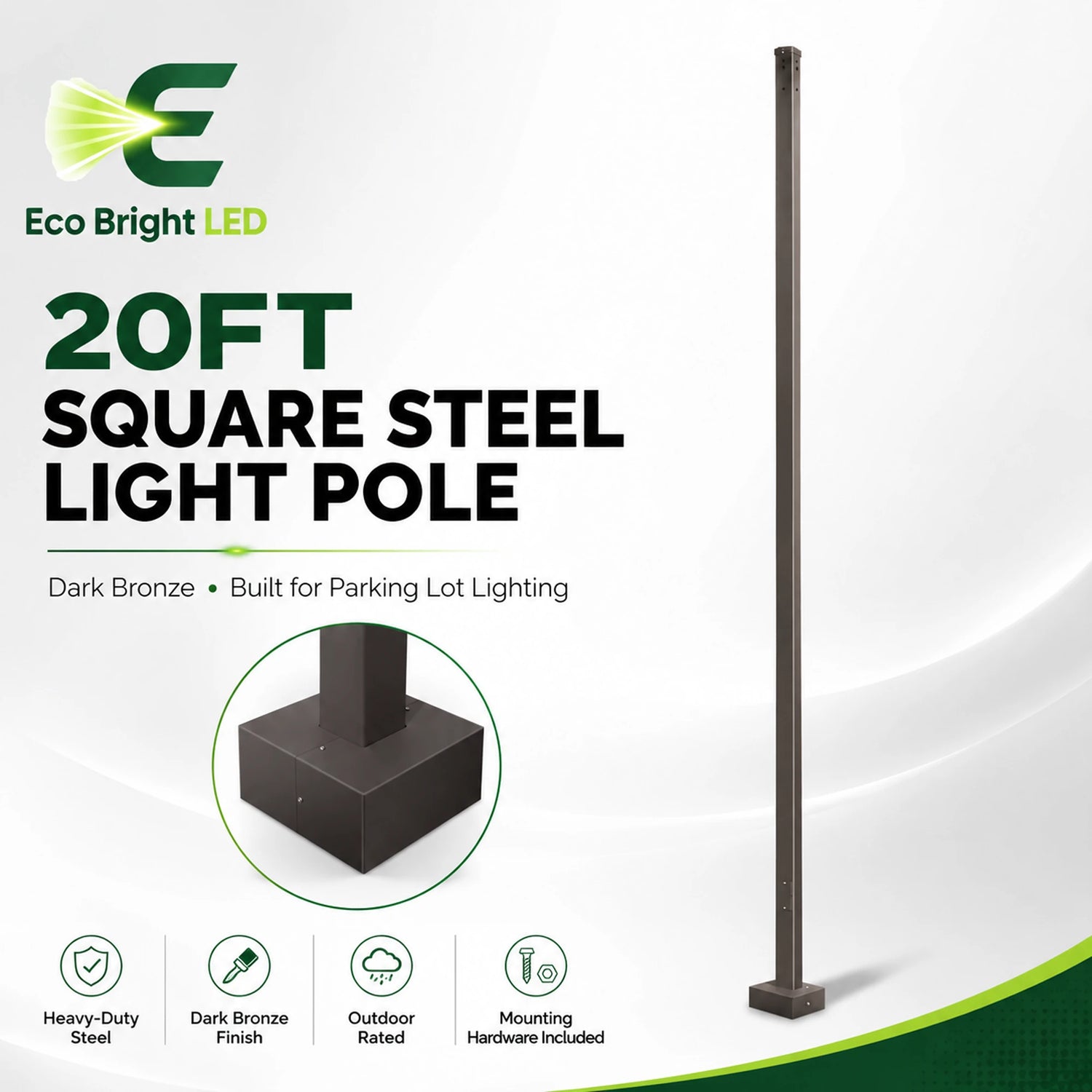

20FT 4 Inch Square Steel Direct Burial Light Pole for Outdoor Lighting
The Eco Bright Light 20FT Square Steel Direct Burial Light Pole is designed for commercial outdoor lighting installations using an underground concrete foundation. Constructed from high-strength steel tubing, it features a 4-inch square shaft, textured architectural bronze powder-coated finish and hot-dip galvanized surface treatment. Suitable for parking areas, retail centers, campuses, industrial facilities and other commercial outdoor lighting projects.
Heavy-Duty Steel Construction
High-strength steel tubing with a 4-inch square shaft provides a durable structure for commercial outdoor lighting.
Direct Burial Installation
The lower pole section is designed for installation into a properly engineered underground concrete foundation.
Protective Surface Finish
Textured bronze powder coating, hot-dip galvanizing and below-grade protective treatment support outdoor durability.
Accessible Wiring
Handhole and cover provide access to electrical wiring connections for installation and maintenance.
Technical Specifications
| Brand | Eco Bright Light |
| Product Type | Square Steel Direct Burial Light Pole |
| Product Series | 20FT / 25FT Direct Burial Pole |
| Selected Configuration | 20FT |
| Pole Cross Section | 4 Inch Square |
| Material | High-Strength Steel Tube |
| Installation Type | Direct Underground Burial |
| Finish | Textured Architectural Bronze Powder Coat |
| Surface Treatment | Hot-Dip Galvanizing |
| Below-Grade Protection | Black Asphaltum Protective Coating |
| Handhole & Cover | Included |

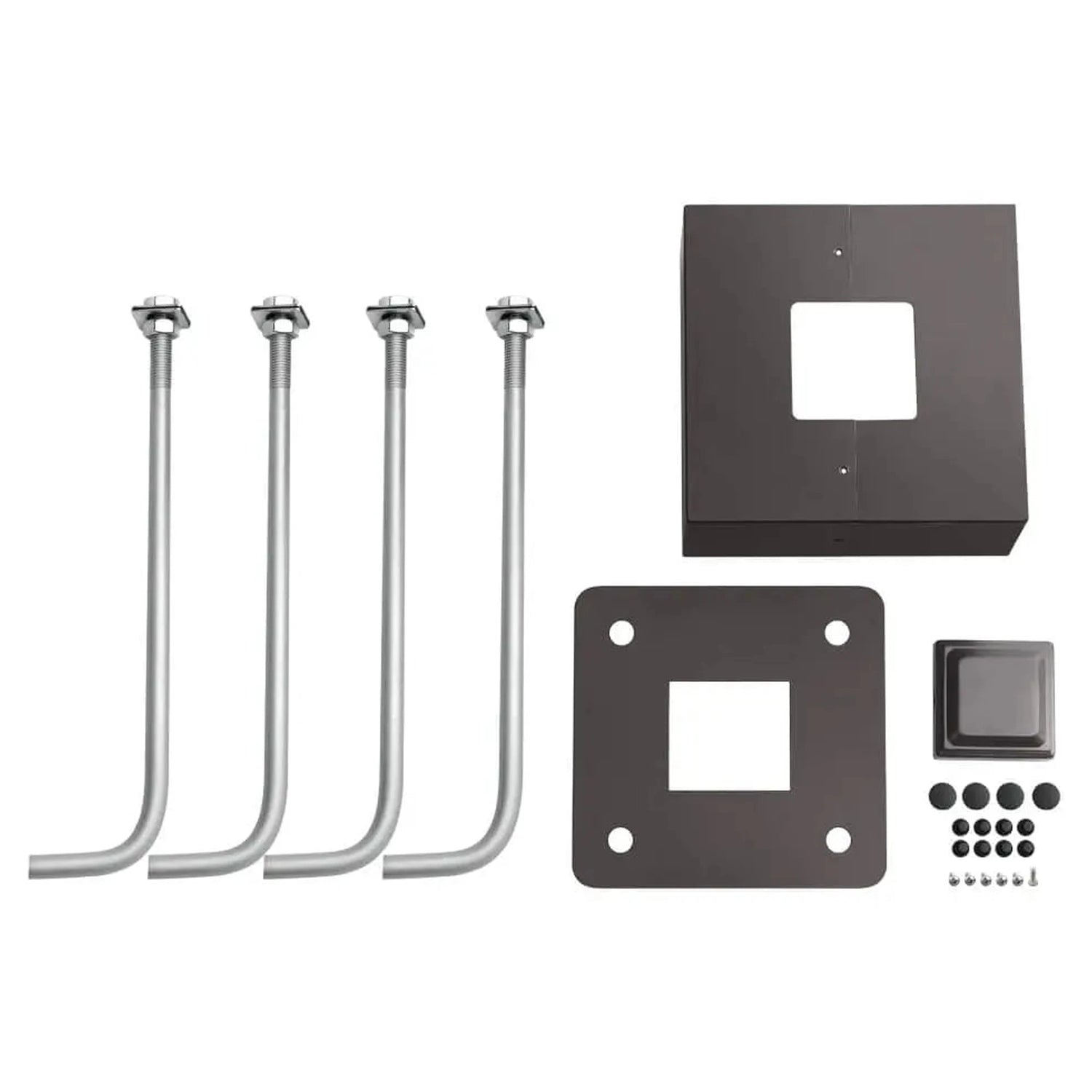

| Anchor Bolts | Not Included |
| Fixture Mounting | Side-Drilled Arm-Mounted Area Lights or Compatible Tenon-Mounted Fixtures |
| Typical Applications | Retail Centers, Industrial Parks, Schools, Transit Facilities, Office Buildings and Medical Facilities |
Direct Burial Foundation Requirements
The pole is installed by positioning the embedded section vertically inside an excavated foundation hole and securing it with concrete. The PDF provides the following reference foundation dimensions for 20FT–30FT direct burial poles.
| Reference Foundation Length | 35.4 in (900mm) |
| Reference Foundation Width | 35.4 in (900mm) |
| Reference Foundation Height | 82.7 in (2100mm) |
| Illustrated Burial Depth | 5 FT (1524mm) for 20FT–30FT Series |
| Installation Method | Direct Burial with Concrete Foundation |
Installation Note: Foundation dimensions are manufacturer reference values only. Final foundation design and burial depth must be verified according to soil conditions, wind loading and local engineering requirements.
Wind Load EPA Reference Data
The supplied 20FT/25FT series datasheet lists the following maximum EPA values with a 1.3 gust factor. The datasheet does not explicitly identify which pole height the EPA table applies to; confirm the applicable ratings for the selected 20FT configuration before fixture selection.
| 70 mph | 4.6 ft² |
| 80 mph | 3.0 ft² |
| 90 mph | 1.7 ft² |
| 110 mph | 0.7 ft² |
| 120 mph | 0.7 ft² |
| Gust Factor | 1.3 |
| Datasheet Pole Weight | 183 lbs (Series Reference) |
Below-Grade Corrosion Protection
The direct burial pole design uses Black Asphaltum protective coating for the embedded steel section. This coating provides additional protection against moisture, corrosion, acids and alkalis. Combined with hot-dip galvanizing and architectural powder coating, it helps protect the pole in outdoor and below-grade environments.
Why Choose This Direct Burial Light Pole?
- 20FT configuration for commercial outdoor area lighting.
- High-strength 4-inch square steel pole construction.
- Direct burial design for concrete foundation installation.
- Textured bronze powder-coated architectural finish.
- Hot-dip galvanizing and Black Asphaltum below-grade protection.
- Handhole and cover provide convenient electrical wiring access.
Ideal Applications

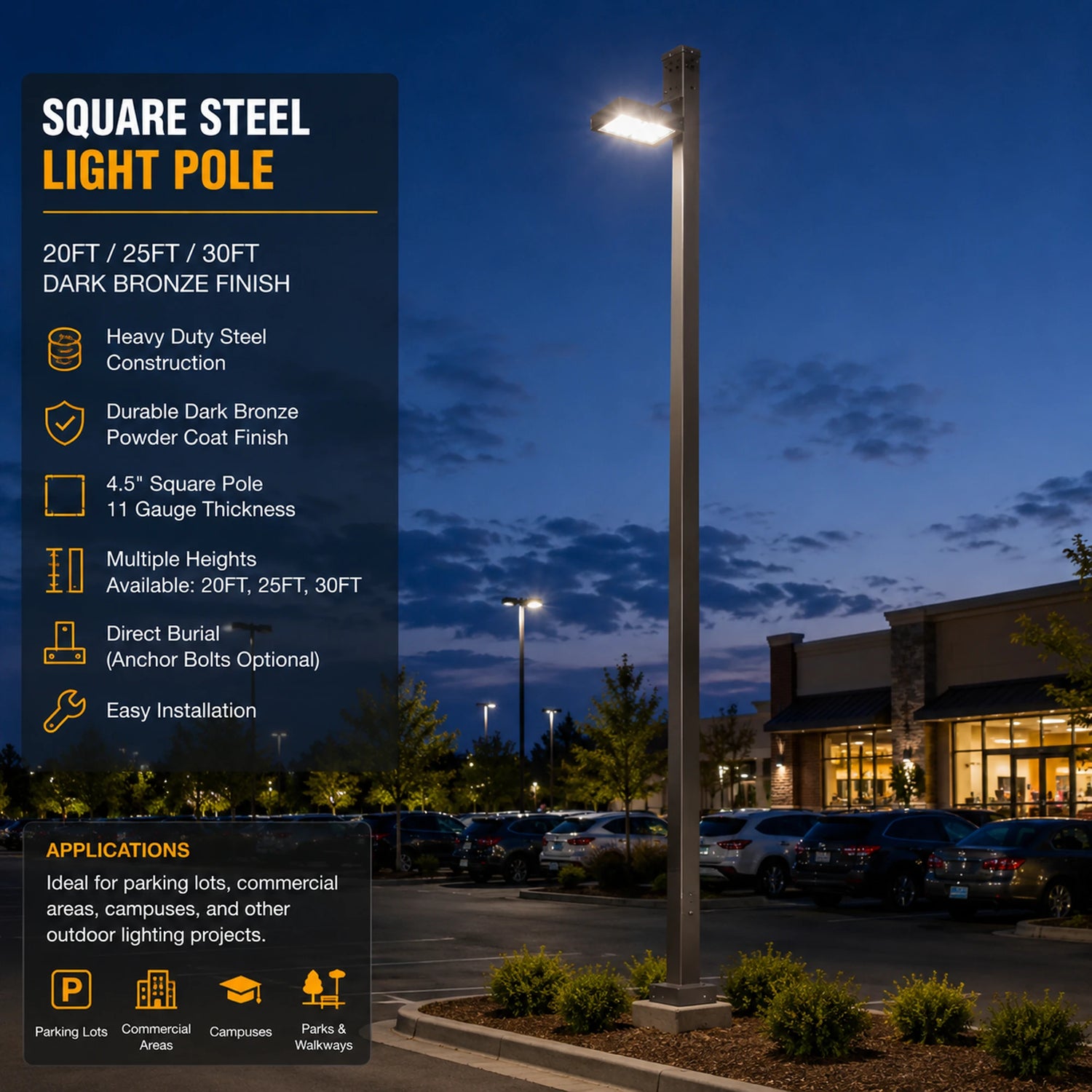

The Eco Bright Light 20FT Square Steel Direct Burial Light Pole is suitable for commercial and institutional outdoor lighting projects requiring underground pole installation. Typical applications include retail centers, industrial parks, schools, universities, transit facilities, office buildings and medical facilities.
20FT Steel Light Pole | 4 Inch Square Light Pole | Direct Burial Light Pole | Parking Lot Lighting | Commercial Area Lighting | Bronze Steel Light Pole | Outdoor Pole Lighting | Industrial Area Lighting
Direct Burial Steel Pole for Commercial Outdoor Lighting
20FT Configuration • 4" Square Steel • Direct Burial • Bronze Powder Coat • Hot-Dip Galvanized • Black Asphaltum Protection
Package Information
| Package Dimensions | Contact for Details |
| Shipping Weight | Contact for Details |
| Pack Quantity | Contact for Details |
| Anchor Bolts | Not Included |
